Product Overview
Overall Length and Height at
2 1/4 inch Cutting Height:
Handle Setting Length Height
High 60.50 inches
(153.7 cm) 42.75 inches
(108.6 cm)
Medium 64.25 inches
(163.2 cm) 40.38 inches
(102.6 cm)
Low 67.00 inches
(170.2 cm) 37.88 inches
(96.2 cm)
Overall Length and Height at
Alternate Handle Mounting Position:
Handle Setting Length Height
High 62.63 inches
(159.1 cm) 37.50 inches
(95.3 cm)
Medium 64.38 inches
(163.5 cm) 35.50 inches
(90.2 cm)
Low 66.25 inches
(168.3 cm) 33.63 inches
(85.4 cm)
Product Overview

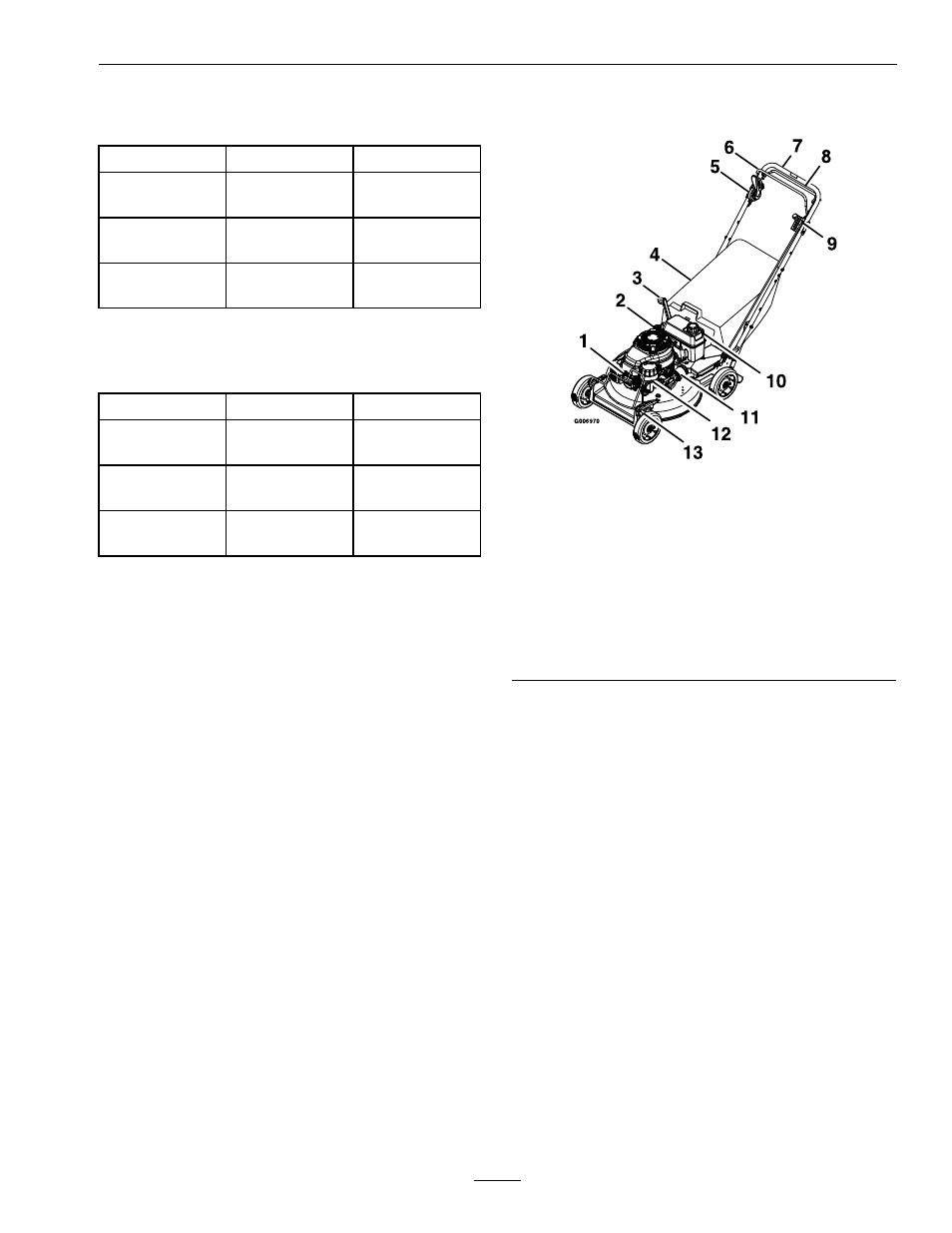

Figure 3
1. Spark plug 8. Drive Bail
(Self-Propelled Units
Only)
2. Oil fill/dipstick 9. Throttle/Choke control
3. Discharge door handle 10. Fuel tank
4. Grass bag 11. Oil filter
5. Blade Control Lever
(Blade Brake Units Only) 12. Air filter
6. Blade Control Bail 13. Cutting height lever
7. Handle
