Elkay EDFP217C - Manual (Page 5)

97705C (Rev. J - 8/07)
EDFP217C*B EDFP217RAC EDFPVR217C EDFPVR217RAC
PAGE 5

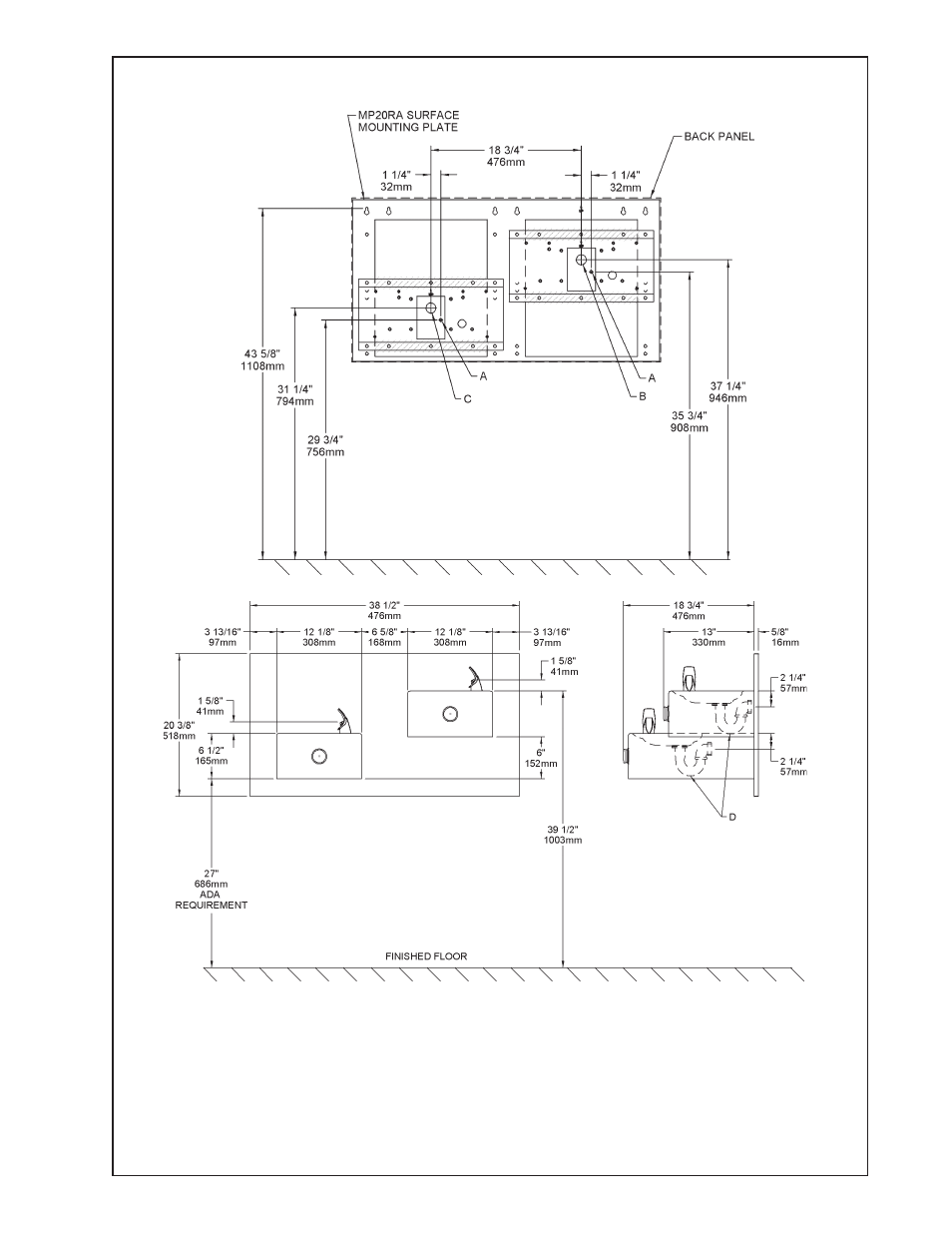

EDFP217RAC W/MOUNTING PLATE
FIG.6
LEGEND
A = RECOMMENDED WATER SUPPLY LOCATION 3/8 O.D. UNPLATED
COPPER TUBE CONNECT STUBBED 1-1/2" (38mm) FROM
WALL SHUT OFF BY OTHERS
B = RECOMMENDED LOCATION FOR WASTE OUTLET
1-1/4" O.D. DRAIN STUBBED 1-1/2" (35mm) FROM THE WALL
C = RECOMMENDED LOCATION FOR WASTE OUTLET
1-1/4" O.D. DRAIN STUBBED 6-3/4" (168mm) FROM THE WALL
D = 1-1/4" TRAP FURNISHED
NOTE:
REFERENCE SEPARATE INSTALLATION
INSTRUCTIONS. FOR DETAILS ON MP20RA
SURFACE MOUNTING PLATE.
