SYSTEM CONNECTION
Preparations
System connection(Optional according to your back panel)
1. When making connection between this unit and other components, be sure all
connection with power-off.
2. Audio/Video cables are connected according to the different colour identification and
they should be fitted firmly.
Yellow to video terminal
White to audio terminal L,L
Red to audio terminal R,R
Black to audio terminal W,CENTER

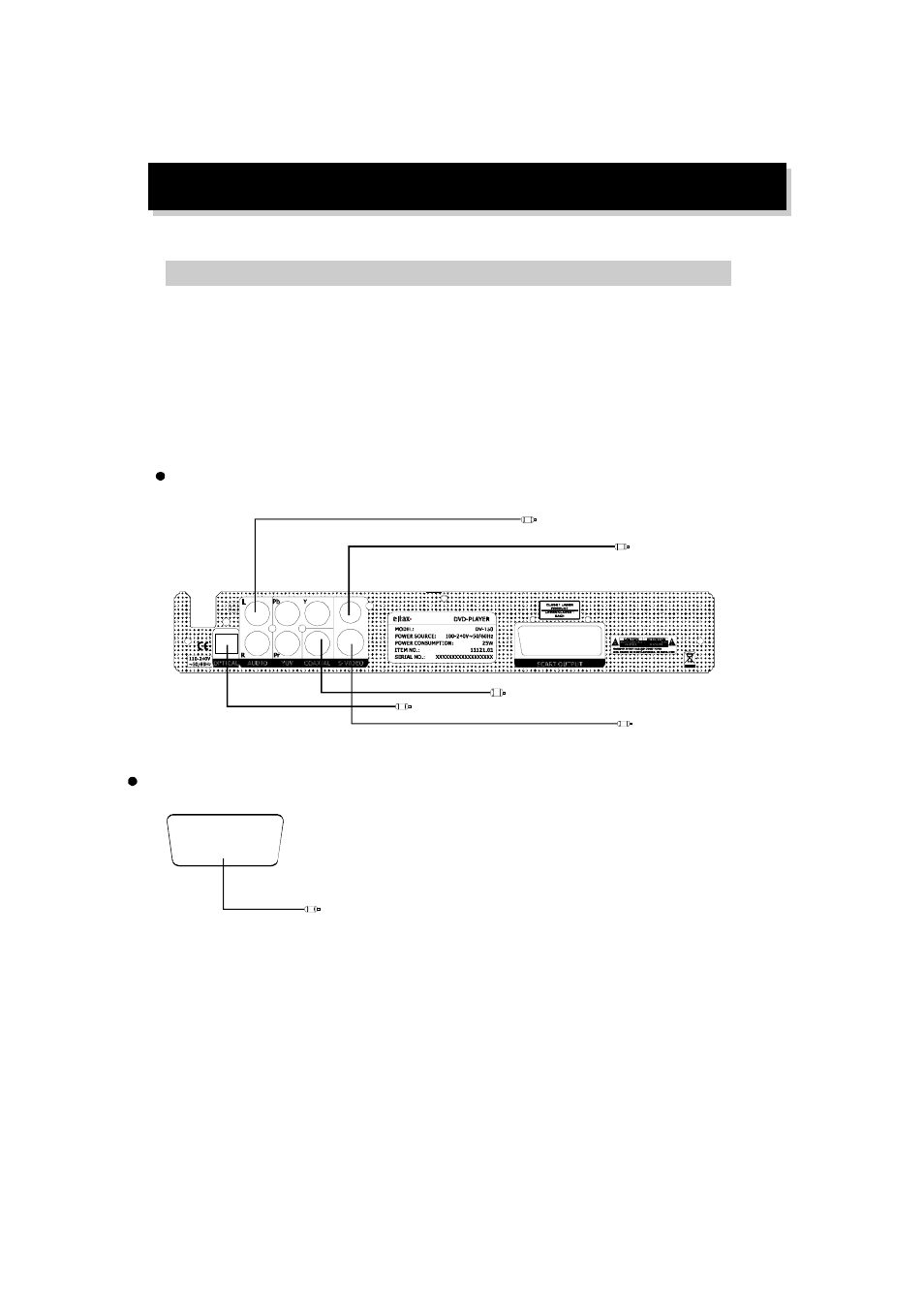

3. Scheme of connection
2CHANNEL CONNECTION
WITH SCART CONNECTION
TO TV SCART INPUT
TO TV INPUT
TO S-VIDEO INPUT
DIGITAL COAXIAL OUT
DIGITAL OPTIONAL OUT
Pr/Pb/Y output jack
SC ART OUT
