This Manual Is Designed to Make it as Easy as Possible

for You to Assemble, Install,

Operate and Maintain Your Ceiling Fan

Tools Needed for Assembly

One Phillips head screwdriver

One stepladder

One 1/4” blade screwdriver

One wire stripper

Three wire connectors (supplied).

Unpacking Instructions

For your convenience, check-off boxes are provided next to each step. As each step is completed,
place a check mark in the box. This will insure that all steps have been completed and will be helpful in
finding your place should you be interrupted.

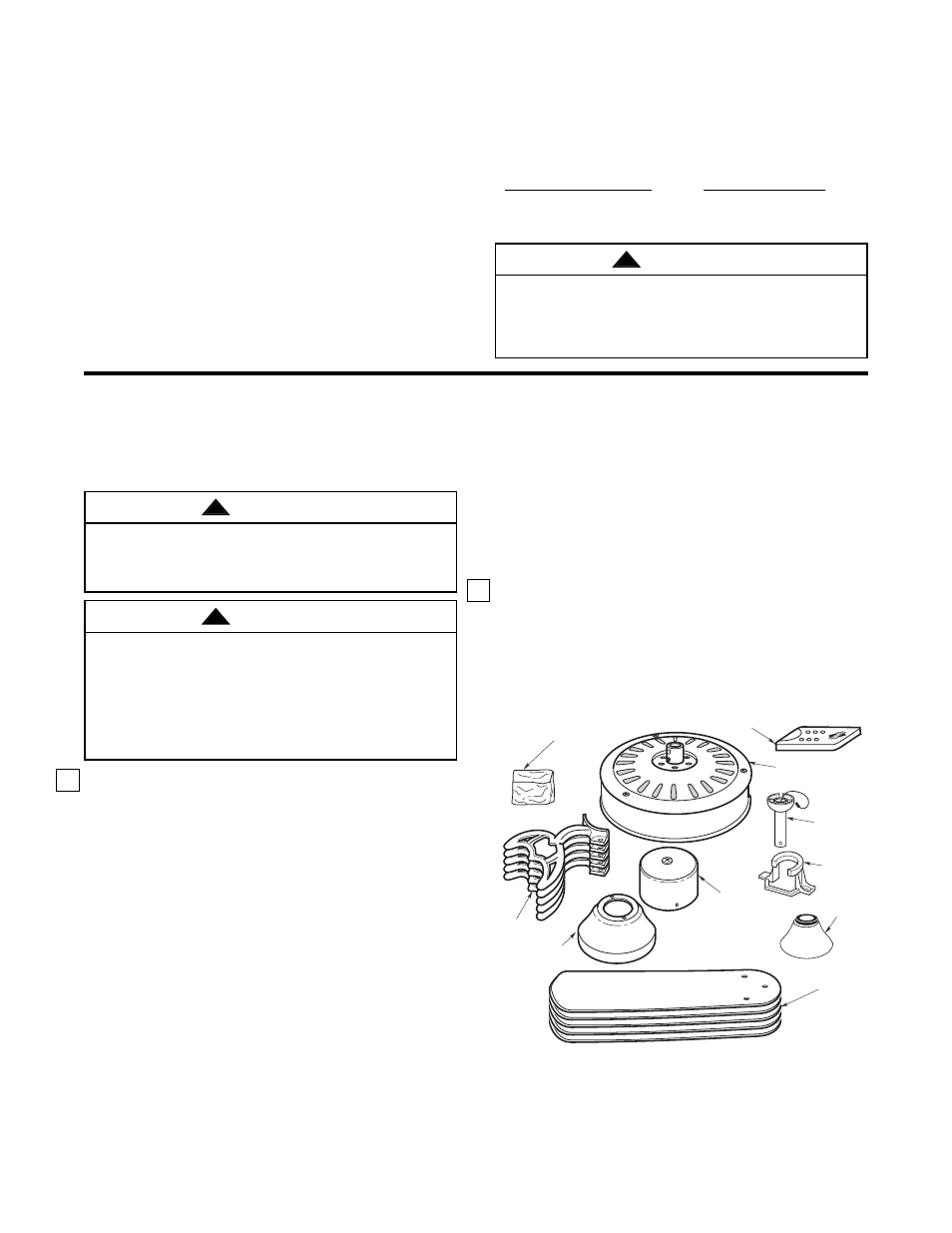

1. Check to see that you have received the following parts:
NOTE: If you are uncertain of part description,
refer to exploded view illustration.

a. Fan motor assembly
b. One switch housing assembly with receiver
c. One hand held transmitter
d. Five fan blades
e. One ceiling cover
f. Five blade flanges
g. One hanger ball/downrod assembly
h. One hanger bracket
i. One coupling cover
j. One loose parts bag containing:

1. Sixteen 3/16-24 x 5/16” slotted Phillips

blade screws

2. Sixteen blade washers
3. Eleven 1/4-20 x 1/2” Phillips oval head

flange screws

4. Three wire connectors
5. Two threaded studs
6. Two knurled knobs
7. Two lockwashers
8. One clevis pin
9. One hairpin clip

3

NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, contact your local retail-
er or catalog outlet for replacement before
proceeding.

2. Remove the fan assembly from the protective plas-

tic bag. Place the fan assembly into the upper
foam pad with the bottom of the motor facing up.

The upper foam pad serves as a holder for the fan
during the first stages of assembly.

LOOSE
PARTS
BAG

HANGER BALL/
DOWNROD
ASSEMBLY

HANGER
BRACKET

FAN
BLADES

FAN MOTOR
ASSEMBLY

CEILING
COVER

BLADE
FLANGES

SWITCH CUP
ASSEMBLY WITH
RECEIVER

TRANSMITTER

®

COUPLING
COVER

MATERIALS

Wiring outlet box and box connectors must be of type
required by the local code. The minimum would be a
3-conductor (2-wire with ground) of size shown to the
right:

Installed Wire Length

Wire Size A.W.G.

Up to 50 ft.

14

50-100 ft.

12

Before assembly your ceiling fan, refer to section on
proper method of wiring your fan (page 6). If you feel
you do not have enough wiring knowledge or experi-
ence, have your fan installed by a licensed electrician.

WARNING

!

Do not install or use fan if any part is damaged or
missing. Call Toll-Free:

1-800-654-3545

This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Company. Substitution of parts or acces-
sories not designated for use with this product by
Emerson Company could result in personal injury or
property damage.

WARNING

!

WARNING

!
