Operation

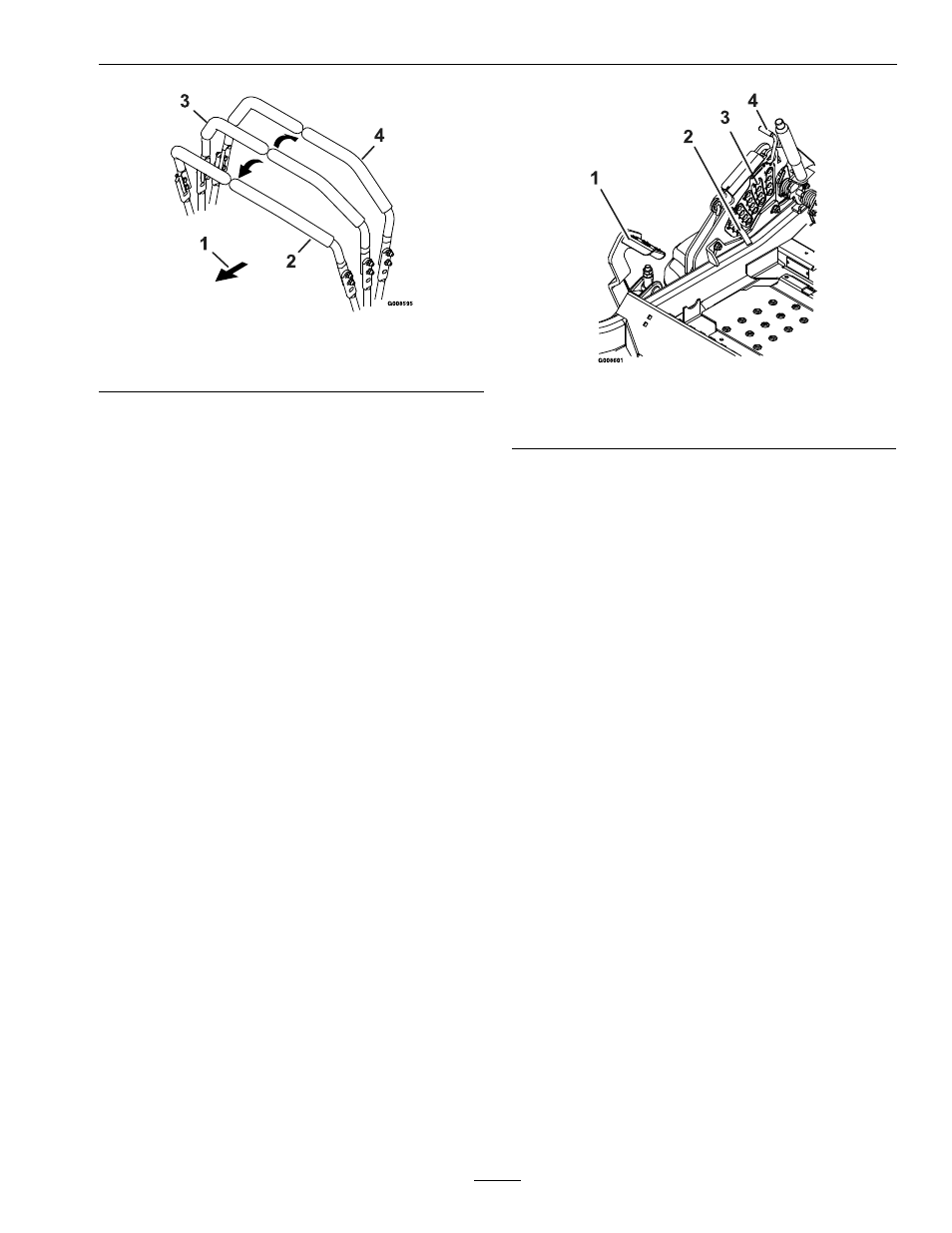

Figure 15

1.

Front of Unit

3.

Neutral

2.

Forward

4.

Reverse

Driving in Reverse

1. Move the motion control levers inward to the

neutral operate position.

2. To move rearward in a straight line, move both

levers rearward with equal pressure.

To turn left or right, release pressure on the
motion control lever toward the desired turn
direction.

3. To stop, position both motion control levers in

the neutral operate position.

Adjusting the Cutting Height

The cutting height of the mower deck is adjusted
from 1 to 5 1/2 inches (2.5 cm to 14 cm) in 1/4 inch
(6.4 mm) increments.

1. Stop the machine and move the motion control

levers outward to the neutral locked position.

2. Disengage the PTO.

3. Position the transport lock in the latching

position.

4. Raise and lock the deck to the 5 1/2 inch (14 cm)

transport position (Figure 16).

The deck is raised by pushing the foot operated
deck lift pedal forward. The pedal is located at the
front right corner of the floor pan.

Note: When changing the cutting height
positions, always come to a complete stop
and disengage the PTO.

Figure 16

1.

Deck foot pedal

3.

Cut of height decal

2.

Height adjustment pin

4.

Transport lock control

5. Insert the height adjustment pin into the hole

corresponding to the desired cutting height.

See the decal on the side of the deck lift plate for
cut heights.

6. Push the deck lift pedal, release the transport lock

and allow the deck to lower to the cutting height.

Adjusting the Anti-Scalp Rollers

It is recommended to change the anti-scalp roller
position, when the height of cut has changed.

1. Stop the machine and move the motion control

levers outward to the neutral lock position.

2. Disengage the PTO.

3. Engage the park brake.

4. Stop the engine, remove the key and wait for all

moving parts to stop.

5. Adjust the anti-scalp rollers by removing the

bushing, spring disc washer and bolt.

6. Place the rollers in one of the positions shown

(Figure 17). Rollers will maintain 3/4 inch (19
mm) clearance to the ground to minimize gouging
and roller wear or damage.
