Description of the Appliance
• The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting one charcoal filter.
• You will need an original AEG charcoal filter for this function
(Available from your local AEG Service Force Centre).
• Only for CHDD 8890: The cooker hood is supplied ready for use as
a recirculation hood and may be used for extraction by removing the
charcoal filter which has been fitted inside the cooker hood.
Extractor version
• In this version fumes are extracted to the
outside via a hose connected to the
coupling ring. Fig. 1.
• In order to obtain the best performance the
hose should have a diameter equal to the
outlet hole.
Should there already be a pipe of diameter
125 mm that ducts to the outside through
the walls or roof, it is possible to use the
150/125 mm reduction flange provided. In
this case the hood will be slightly noisier.
Filter Version
• The air is filtered through a charcoal filter and returned to the
kitchen.
• You will need an original AEG charcoal filter for the filtering function.
(See Special Accessories).
• Optionally, the position of the chimney elements can be changed.
When using the hood in the filter version the chimney must be fixed
at the top, with the air outlet grill at the side.

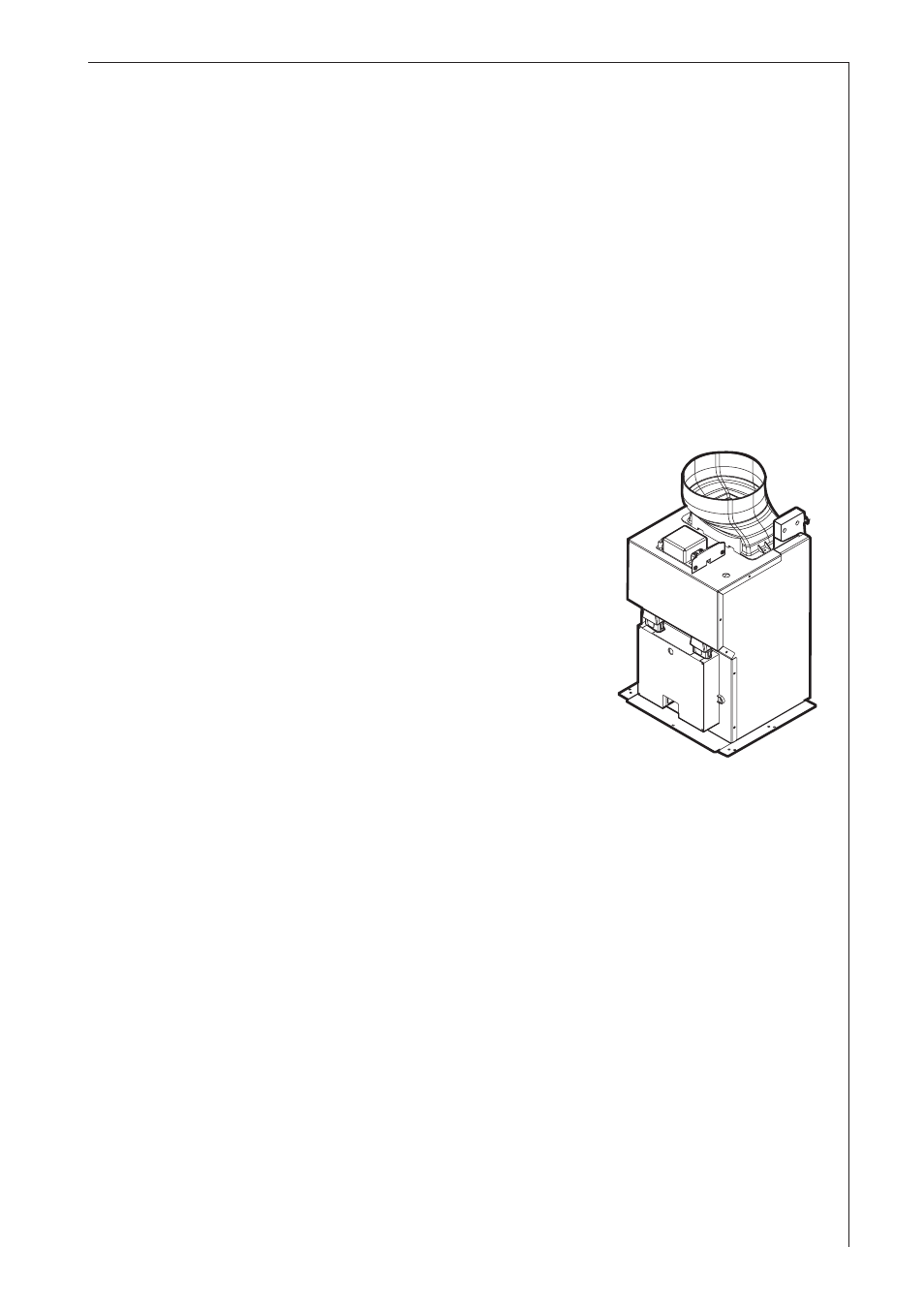

Fig. 1
