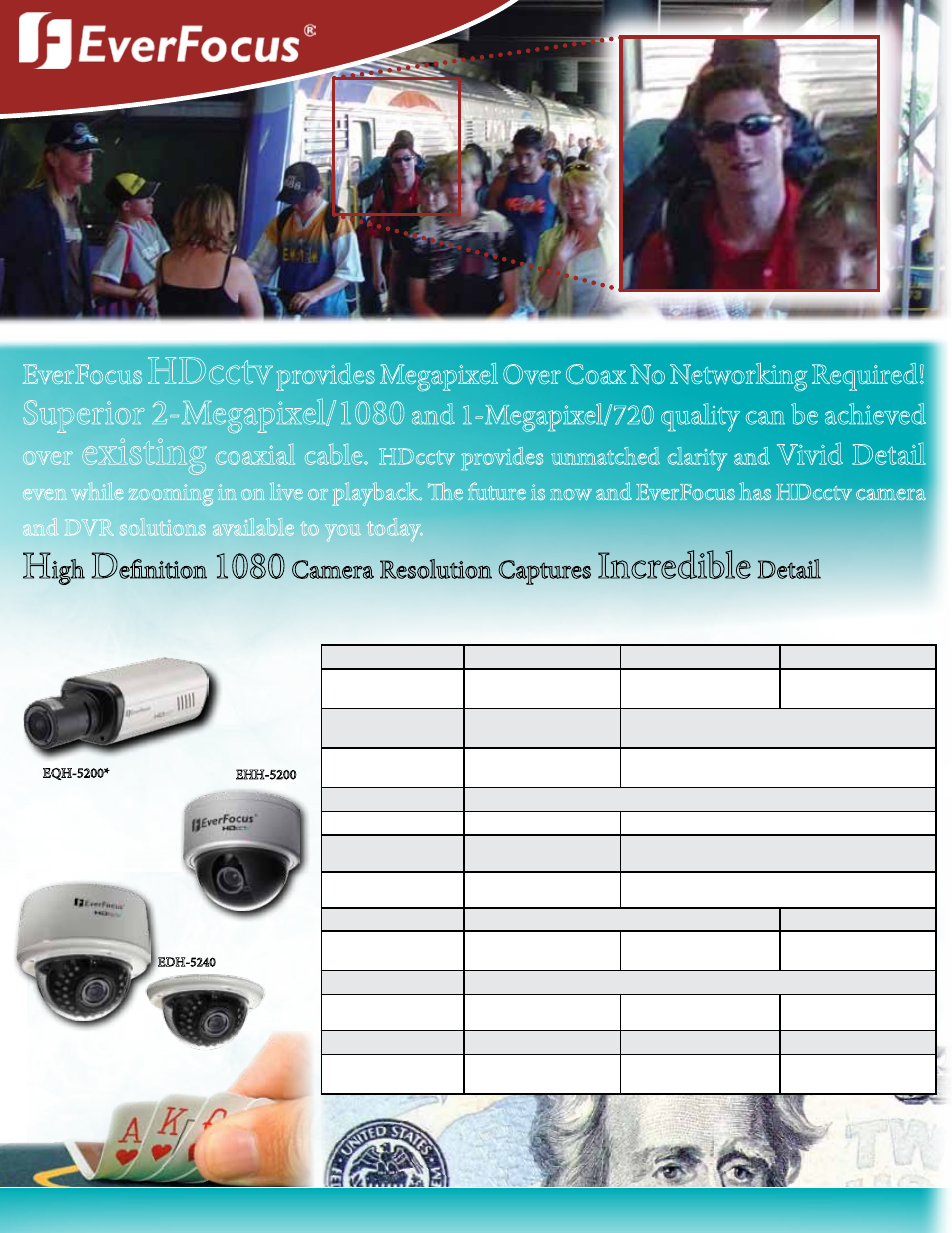

EverFocus
HDcctv
provides Megapixel Over Coax No Networking Required!
Superior 2-Megapixel/1080
and 1-Megapixel/720 quality can be achieved
over
existing
coaxial cable.
HDcctv provides unmatched clarity and
Vivid Detail
even while zooming in on live or playback. The future is now and EverFocus has HDcctv camera
and DVR solutions available to you today.
EQH5200 EHH5200 EDH5240
Box Outdoor Vandal Dome
Indoor IR Dome
Flush/Surface
Video Format
1080i60/1080i50
720p60/720p50
1080i50/60 | 1080p30/25 | 720p50/60
Image Sensor
1/2.5” 2-Megapixel
CMOS Sensor
1/2.7” 2-Megapixel CMOS Sensor
Type True Mechanical Day/Night with Motorized IR Filter Removal
Lens Sold Separately 3.3-12mm Megapixel A/I IR Corrected
FOV Calc: 1080 Mode
4.85mm/image circle/diagonal;
4.22mm H x 2.38mm V
6.61mm/image circle/diagonal;
5.76mm H x 3.24mm V
FOV Calc: 720 Mode
6.46mm/image circle/diagonal;
5.63mm H x 3.17mm V
4.41mm/image circle/diagonal;
3.84mm H x 2.16mm V
IR Distance Optional IR Illuminator Available Up to 65 Feet (20m)
Weather Resistance
Optional housing
Sold Separately
IP66
Indoor Use
20-80% humidity
Power Source 12VDC/24VAC Auto Polarity Detect
Power Draw 6W Max
24VAC: 5.5W max.
12VDC: 3.3W max. 24VAC: 7.2W IR off, 11.3W max IR on
12VDC: 4.7W IR off, 7.4W max IR on
Operating Temp 32° F ~ 113° F 14° F ~ 122° F 32° F ~ 104°
L x W x H 5.7” x 2.7” x 2.2” In 4.8” (O.D.) x 4.2” (H) in
Surface: 5.5 x 5.1 in
Flush: 5.5 x 2.8” in
EQH-5200* EHH-5200
EDH-5240
*Lens sold separately
H
igh
D
efinition
1080
Camera Resolution Captures
Incredible
Detail
HD Features: Choice of HDcctv Resolution: 1080/2-Megapixel (1920 x 1080) or 720/1-Megapixel (1280 x 720)
SD TV Output for Easy Camera Installation and Focus
EverFocus: CA: 626-844-8888 | EverFocus NY: 631-436-5070 | www.everfocus.com
