Planning for Installation
INSTALLATION PLANNING
A qualified technician must complete the installation of this appliance.
Carefully check the location where the remote blower is to be installed. The remote
blower should be placed for convenient access. Make certain that electrical power
can be provided in the selected location.
Plan the installation so that all minimum clearances are met or exceeded.
Dimensions shown provide minimum clearances, unless otherwise noted.
SPECIFICATIONS AND DIMENSIONS
NO
NO
NO
NO
NOTE
TE
TE
TE
TE
All dimensional tolerances are + 1/16”, - 0” unless otherwise stated.
Before commencing installation, remove the top cover of the remote blower. Check to
see if the blower wheel turns freely. Do not replace the top cover until the installation is
complete.

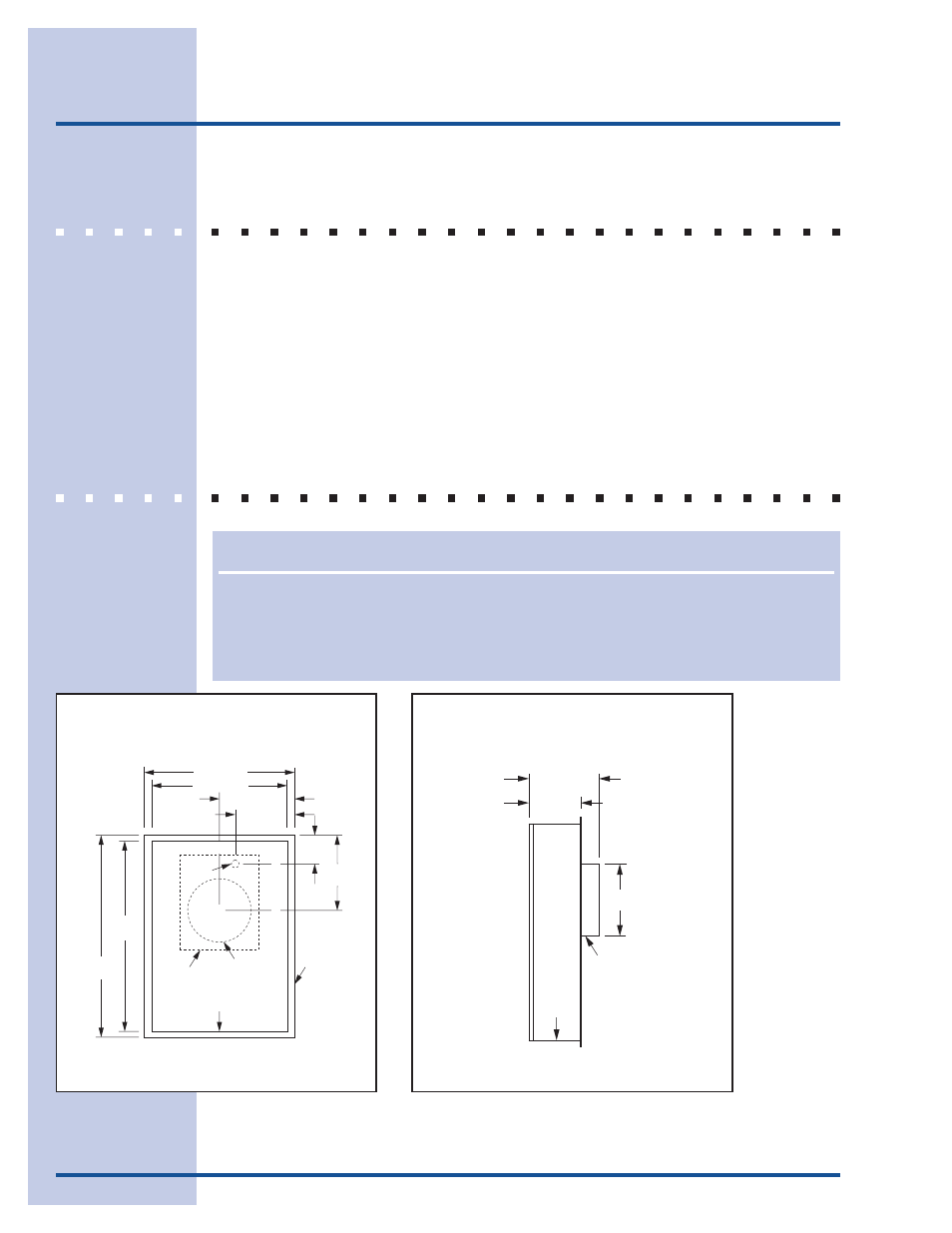

Figure 1
Blower Overall Dimensions
Top View
Figure 2
Blower Overall Dimensions
Side View
24" (610mm)
26" (660mm)
31 1/2"
(800mm)
3 1/2"
(89mm)
12 1/4"
(311mm)
Mounting
Flange
33 1/2"
(851mm)
9 1/2"
(241mm)
12 11/16" (322mm)
Discharge
Cutout
Location
Intake Collar
Power Supply
Conduit
Location
C
L
C
L
C
L
C
L
9 9/16"
(243mm)
10"
(254mm)
11 1/2"
(292mm)
Discharge
Intake Collar
