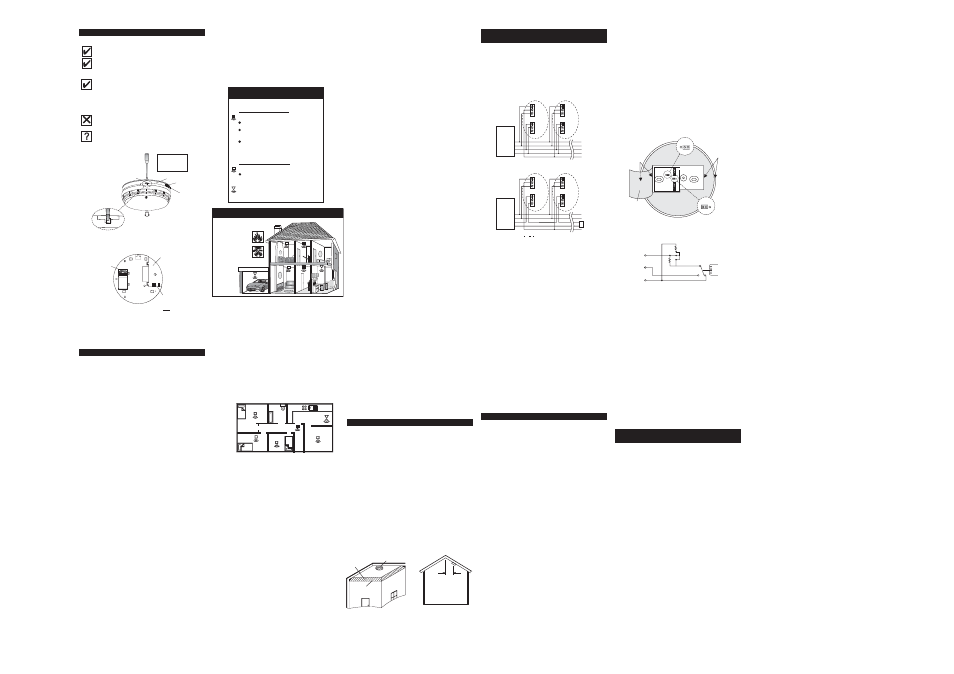

READ THIS FIRST
CHECK OPERATION OF SYSTEM
TEST BUTTON OPERATES ON ALL ALARMS.
ALL INTERCONNECTED ALARMS OPERATE
WHEN EACH TEST BUTTON IS PRESSED FOR 10
SECONDS.
(EI181/184/186 ONLY) IF THE UNIT BEEPS EVERY
40 SECONDS FOR OVER 20 MINUTES THE
BATTERY IS PROBABLY DEPLETED. REMOVE
UNIT FROM CEILING (SEE FIG 1) AND REPLACE
BATTERY.
DO NOT ATTEMPT TO OPEN THE ALARM AS IT IS
PERMANENTLY SEALED FOR SAFETY.
IF A NUISANCE ALARM OCCURS PRESS THE
TEST/HUSH BUTTON TO SILENCE THE ALARM
FOR 10 MINUTES.
LOCATING ALARMS
SMOKE ALARMS
Sufficient smoke must enter the Smoke Alarm before it will
respond. The Smoke Alarm needs to be within 7.5 metres (25
ft) of the fire to respond quickly. It also needs to be in a position
where its alarm can be heard throughout your home, so it can
wake the occupants in time for all to escape. A single Smoke
Alarm will give some protection if it is properly installed, but
most homes will require two or more to ensure that a reliable
early warning is given. For maximum protection you should put
individual Smoke Alarms in all the rooms where fire is most
likely to break out, (apart from kitchens, bathrooms etc. see
Locations to Avoid).
A Smoke Alarm should be located between the sleeping area
and the most likely sources of fire (living room or kitchen for
example). It should not be more than 7.5 metres (25 ft) from the
door to any room where a fire might start on the escape route
from the house.
Important: These Smoke/Heat Alarms are designed for a
single occupancy in a residential type environment.
A Smoke Alarm should be sited within 3m of bedroom doors for
improved audibility.
HEAT ALARMS
The Heat Alarm gives a fire warning when the temperature at
the unit reaches 58°C. It is ideal for kitchens, garages, boiler
houses and other areas where there are normally high levels of
fumes, smoke or dust i.e. places where Smoke Alarms cannot
be installed without the risk of excessive nuisance alarms.
A Heat Alarm should only be used in a room adjoining an
escape route, in conjunction with Smoke Alarms on the escape
routes.
All the Heat Alarms and Smoke Alarms should be
interconnected to ensure the early warning will be heard,
particularly by somebody sleeping. A properly designed early
warning fire system ensures the alarm is given before the
escape routes become blocked with smoke. Therefore, there
must be Smoke Alarms along the escape routes as Heat
Alarms would not give sufficient warning. However, a fire in a
closed room (e.g. kitchen) adjoining the escape route, can
eventually cause the corridor to become smoke-logged due to
smoke leaking out from around the door before adequate
warning can be given by detectors in the corridor. (Smoke
leaking out from a room is often cool and slow moving so it can
take a long time to rise to the ceiling, and travel to a detector
which could be some distance away). A Heat Alarm in the
closed room will give early warning of fire in that room and help
overcome this problem.
RECOMMENDED LOCATIONS
Figure 2 illustrates where Smoke Alarms and Heat Alarms
should be located in a typical two storey house. Note the
spacings in “Recommended Protection” which ensure the early
detection of fire and the warning will be heard.
Locate Heat Alarms in rooms adjoining or on escape routes -
kitchens, garages, boiler houses etc. where Smoke Alarms are
unsuitable. Install within 5.3m (17 feet) of potential sources of
fire.
Single Storey Dwelling.
If the Home is on one level (a bungalow or mobile home for
example) you should put the first Smoke Alarm in a corridor or
hallway between the sleeping and living areas. Place it as near
to the living area as possible, but make sure you can hear it
loudly enough to wake a person in the bedrooms. (for example,
see figure 3) Single storey Dwelling with Recommended
ProtectionSingle
Storey Dwelling with Recommended
Protection
If the bungalow is very large and the corridor or hallway is more
than say 15 metres (50 ft) long, one Smoke Alarm will not be
sufficient. This is because no matter where it is located it will be
more than 7.5 metres from potential fires.
In houses with more than one sleeping area, Smoke Alarms
should be placed between each sleeping area and the living
area.
Multi Storey Dwellings
If the dwelling has more than one storey it must have an
interconnected alarm on each level for minimum protection.
Maximum Protection
For maximum protection you should put individual Smoke
Alarms in all the rooms where fire is most likely to break out
(apart from the locations to avoid, mentioned below). Ensure
that they are all interconnected. The living room is the most
likely place for a fire to start at night, followed by the kitchen and
then the dining room. You should also consider putting Smoke
Alarms in any bedrooms where fires might occur, for instance,
where there is an electrical appliance such as an electric
blanket or heater, or where the occupant is a smoker. You
could also consider putting Smoke Alarms in any rooms where
the occupant is unable to respond very well to a fire starting in
the room, such as an elderly or sick person or a very young
child.
Fire Authorities (including the Home Office, UK) recommend
that both Optical and Ionisation Smoke Alarms should be
fitted for the fastest response to all types of fires. An Optical
Alarm should be located downstairs to detect slow smouldering
fires (e.g. from a cigarette burning in a couch or bedding,
overheated PVC wiring etc). An Ionisation Alarm should be
located upstairs to detect fast flaming fires (e.g. paper burning
in a container or a grease fire in the kitchen) which could rapidly
block the main escape route.
Checking you can hear the Smoke & Heat Alarms
With the Alarm sounding in its intended location, check you are
able to hear it in each bedroom with the door closed, above the
sound of the radio. The radio should be set to a reasonably loud
conversation level. If you can’t hear it over your radio the
chances are that it wouldn’t wake a person.
If a Smoke Alarm is too far away for it to wake a person, it is
best to interconnect to another Smoke Alarm or Heat Alarm
near the bedroom, so when one alarm senses fire, all
interconnected alarms respond (see below for further details).
LOCATIONS TO AVOID
Don’t place Smoke Alarms in any of the following areas:
• Bathrooms, kitchens, shower rooms, garages or other
rooms where the smoke alarm may be triggered by steam,
condensation, normal smoke or fumes. Keep at least 6
metres (20 feet) away from sources of smoke.
Don’t place Heat Alarms in any of the following areas:
• Bathrooms, shower rooms or other room where the unit
may be triggered by steam or condensation.
Don’t place Smoke or Heat Alarms in any of the following
areas:
• Places where the normal temperature can exceed 40°C
(104°F) or be below 4°C (39°F) e.g. attics, furnace rooms
etc. directly above ovens or kettles, as the heat/steam
could cause nuisance alarms.
• Near a decorative object, door, light fitting, window
moulding etc., that may prevent smoke or heat from
entering the Alarm.
• Surfaces that are normally warmer or colder than the rest of
the room (for example attic hatches, uninsulated exterior
walls etc). Temperature differences might stop smoke or
heat from reaching the unit.
• Next to or directly above heaters or air conditioning
vents, windows, wall vents etc. that can change the
direction of airflow.
• In very high or awkward areas (eg. over stairwells) where it
may be difficult to reach the alarm (for testing, hushing or
battery replacement).
• Locate away from very dusty or dirty areas as dust build-up
in the chamber can impair performance. It can also block the
insect screen mesh and prevent smoke from entering the
smoke detector chamber.
• Locate the unit at least 1 metre (3 feet) from dimmer
controlled lights and wiring - some dimmers can cause
interference.
• Locate unit at least 1.5m (5 feet) and route wiring at least 1m
(3 feet) away from fluorescent light fittings as electrical
“noise” and/or flickering may affect the unit.
• Do not locate in insect infested areas. Small insects getting
into the smoke detector chamber can cause intermittent
alarms. Insects and contamination on the Heat Alarm sensor
can increase its response time.
POSITIONING SMOKE/HEATALARMS
The locations must comply with applicable building regulations.
Hot smoke rises and spreads out, so a central ceiling position is
the preferred location. The air is “dead” and does not move in
corners, therefore Smoke & Heat Alarms must be mounted
away from corners. Place the unit at least 300mm (12 inches)
from any light fitting or decorative object which might obstruct
smoke / heat entering the Alarm. Keep at least 300mm (12”)
away from walls. See figure 4. (Smoke Alarms should be
located directly on the ceiling or up to 570mm below it. Heat
Alarms should be located directly on the ceiling or up to 90mm
below it).
Wall mounting is not recommended for these Alarms.
Sloping Ceiling
In areas with sloping or peaked ceilings install your
Smoke/Heat Alarm 90mm (3 feet) from the highest point
measured horizontally (see figure 5), because “dead air” at the
apex may prevent smoke from reaching the unit.
INTERCONNECTING SMOKE/HEAT
ALARMS
When a fire is sensed the alarm must be given throughout the
house. Up to twenty (20) Smoke Alarms (models EI 180, 181,
185, 186 only) and Heat Alarms (model EI 183, 184 only) can
be interconnected so that when one senses fire all alarm.
Caution: Do not interconnect to any other type of alarm.
The unit initiating the alarm can be identified by the red LED on
the cover flashing every second. Figure 6 shows the
interconnect wiring.
Note: It is only necessary to wire one relay to the control panel.
If any alarm senses fire this relay will change state due to the
signal on the interconnect line.
These Alarms should be interconnected only within the
confines of a single family living unit. If they are interconnected
between different units there
may be excessive nuisance
alarms. Everybody may not be aware that they are being tested
or that it is a nuisance alarm caused by cooking etc. When one
unit alarms all relays will switch.
Systems using more than 3 or 4 alarms must be very carefully
planned to ensure nuisance alarms are not excessive, e.g.
from cooking or weekly testing.
Smoke Alarm Locator Switch (EI 159) should be incorporated
into the system and be readily accessible to all occupants so
that the source of an alarm can be quickly identified. (see
Accessory section).
All Alarms must be cleaned and maintained regularly.
A competent person must be on call to quickly remove any
faulty alarms (i.e. units with red light flashing), which are
causing all alarms to sound.
INSTALLING SMOKE/HEAT ALARMS
The Alarm is designed to be permanently mounted , using it’s
own built-in terminal blocks to connect it to the panel. The
mounting plate can be screwed directly to the ceiling after
connecting the wires.
IMPORTANT PRECAUTION: Do not install the actual alarm
itself in new or renovated buildings until all work is
completed (including floor coverings) and the building has
been fully cleaned. The wiring can be installed when
appropriate. (Excessive dust and debris from building
work can contaminate the smoke chamber or heat sensor
and cause problems, it will also invalidate the guarantee).
If it must be installed, cover it completely, particularly
around the edges, with a dust cover (eg. with the
elasticated cover supplied or a plastic bag), until all
cleaning is finished.
Warning: Wiring should only be installed by an Electrician in
accordance with current IEE wiring regulations for electrical
installation. The installation must also be in accordance with
the control panel instructions and the instructions in this leaflet.
Warning: The mains circuit used to power the control panel
must be a 24 hour voltage circuit and be wired on a separate
circuit (one with no other lights or applilances) to ensure
maximum reliability of the supply.
Warning: The Alarms must be connected to a panel that
supplies a permanent voltage that cannot be switched off.
Warning: For safety reasons the voltage supply from the
control panel must not be greater than 30V (peak or d.c.) and
must be either independent of the supply mains or isolated from
it by double or reinforced insulations.
Warning: If the control panel is not provided with an ALL-POLE
MAINS SWITCH (with a contact specification of at least 3mm in
each pole), then the electrical installation of the building shall
incorporate an ALL-POLE MAINS SWITCH, (with a contact
separation of at least 3mm in each pole).
Installation
Select a location complying with the above advice.
1. Remove the mounting plate from the Smoke Heat Alarm by
releasing the tamper-proof catch with a small screwdriver as
shown in figure 1a and sliding the alarm from the plate.
2. Lift the foam flap covering the circuit on the mounting plate. If
necessary move the jumpers on S1 and/or S2 (see figure 7) by
carefully lifting them and placing them over the required pins.
3. If surface wiring the unit remove the required breakaways.
Low voltage signal cable is satisfactory (e.g. wire 0.22mm
2 )
provided the resistance between the units and the panel is less
than 20 ohms.
All wiring must comply with local codes. Connect the wires to
the terminals as shown in the wiring diagram (figure 6). The
gasket flap can be tucked behind the terminals while this is
being done. Place gasket flap back over circuit board and
terminals.
4. Carefully align the mounting plate and screw into place. With
recessed wiring, ensure the rear gasket seals around the edge
of the hole in the ceiling. This is to prevent air draughts affecting
the smoke / heat entering the alarm. If the orifice is too large it
should be sealed with silicone rubber or equivalent.
Check the battery is connected in the back of the alarm ( EI
181, 184, 186 only).
Carefully line up the unit on the base and slide on.
Press the test/hush button for 10 seconds. The horn should
sound (EI 181, 184, 186 only).
7. Connect the panel power to the alarm circuit. The green light
on the mounting plate should turn on.
Check the operation of the Alarm as outlined in the next
section.
CHECKING AND MOUNTING YOUR
ALARMS
INSPECTION & TESTING PROCEDURE
After installation, after re-occupation following a holiday, and
weekly, check all your Alarms as follows:
Check the green light is illuminated on the mounting plate. This
shows the panel is supplying power.
Press the test button for up to 10 seconds to ensure the
sensor chamber, electronics and sounder are working. A red
light on the cover will flash while horn is sounding. The relay
contacts should change over with the EI185, EI186
relay
contacts when the horn sounds with the EI180, EI181, EI183,
EI184, it contacts within 6 seconds after the horn sounds. The
alarm will stop when the button is released. Pressing the test
button simulates the effect of smoke or heat during a real fire
and is the best way to ensure the Alarm is operating correctly.
WARNING: DO NOT TEST WITH FLAME.
This can set fire to the Alarm and damage the house.
We do not recommend testing with smoke or heat as the results
can be misleading unless special apparatus is used.
Check for any sign of contamination such as cobwebs or dust
and clean the alarm as described below if necessary.
Interconnected alarms
Test the first unit by pressing the button. All the detectors
should alarm within about 5 seconds of the first horn sounding
and the red light on the first unit only will flash once a second.
The relay contacts should change over about 6 seconds after
the horns sound. Check all the other units similarly. (Note:
Ionisation and Heat alarms signal to other
interconnected
alarms, about 4 seconds after their own horn sounds. Optical
alarms signal within about a second).
2
3
4
5
6
7
8
9 11
10
MOUNTING PLATE
SEALING
GASKET
CONTINUOUS GREEN PANEL POWER ON LIGHT
TAMPERPROOF CATCH
Figure 1a
PUSH SCREWDRIVER STRAIGHT IN TO RELEASE CATCH
SLIDE OFF
(PUSH COVER BACK)
UNIT WILL NOT FIT ON THE MOUNTING PLATE WITHOUT A BATTERY INSTALLED
(EI181/184/186 ONLY)
BASE
4 WAY PLUG ENGAGES SOCKET
ON MOUNTING PLATE TO CONNECT TO PANEL
BATTERY AND
9 V olt
Battery
BATTERY
SNAPS (EI181/184/186
ONLY)
Figure 1b
Recommended Protection
Minimum protection
Maximum protection
Smoke Alarms located on:-
- Interconnect all Alarms
Smoke Alarms located as above plus:-
Heat Alarms located in Kitchens, garages,
boiler rooms etc. Within 5.3m (17ft) of
potential fire sources.
every 7.5 metres (25ft) of hallways and
escape routes
each storey
Within 3m (10th) of all bedroom doors.
All rooms (except bathrooms, shower
rooms & kitchens)
See Figures 2 & 3
Multi Storey Dwelling with Recommended Protection
Fit both Ionisation &
Optical type alarms.
Best for fast flaming
fires.
Best for smouldering
fires.
Ionisation -
Optical -
Figures 2
BEDROOM
BEDROOM BEDROOM
KITCHEN
DINING
Figure 3
IDEAL FOR CENTRE OF CEILING
NEVER WITHIN
300mm OF ANY
WALL / CORNER
DEAD AIR SPACES
900mm
(3 ft)
Figure 4 Figure 5
COMPATIBLE
10.5 - 30 VOLT
PANEL
COMPATIBLE
10.5 - 30 VOLT
PANEL
INTERCONNECT
INTERCONNECT EOL - ND F INE DEVICE, SPECIFIED BY PANEL E O L
Figure 6a Circuit for Normally Open Relay Contacts
Figure 6b Circuit for Normally Closed Relay Contacts
+V
+V
0V
0V
NORMALLY OPEN CIRCUIT
NORMALLY CLOSED
CIRCUIT
COMMON
COMMON
NO
NO
*
*
EOL
DEVICE
NC
NC
COMMON
COMMON
UNIT 1
UNIT 1
UNIT 2
UNIT 2
NO
NO
NC
NC
+
+
IC
IC
-
-
+
+
IC
IC
-
- +
NO
IC
NC P C
S1
-
COMMON
MAIN BREAKAWAYS FOR SURFACE MOUNTING
BREAKAWAYS FOR STRAIGHT
THROUGH
WIRING
S1
S2
POSITION C
POSITION NR
RELAY ON CONTINUOUSLY WHEN IN ALARM (AS SUPPLIED)
NO RESISTANCE IN SERIES WITH RELAY CONTACTS (AS SUPPLIED)
RELAY PULSED FOR 5 SECONDS WHEN UNIT ALARMS
RESISTORS CONNECTED TO CONTACTS AS SHOWN BELOW
POSITION P
POSITION R
SEALING
GASKET
FLAP FOLDED BACK
Figure 7a
NR S2 R
NR
S2
R
P C
S1
68K
22K
R
NR C
NO
NC
Figure 7b
Pages 2 to 11
B14090 Rev-1
12/03/01
