Description of the Appliance
• The hood is supplied as an extractor unit and can also be used with a filtering function
by fitting one charcoal filter (special accessory).
• You will need an original AEG charcoal filter for this function (Available from your local
AEG Service Force Centre).

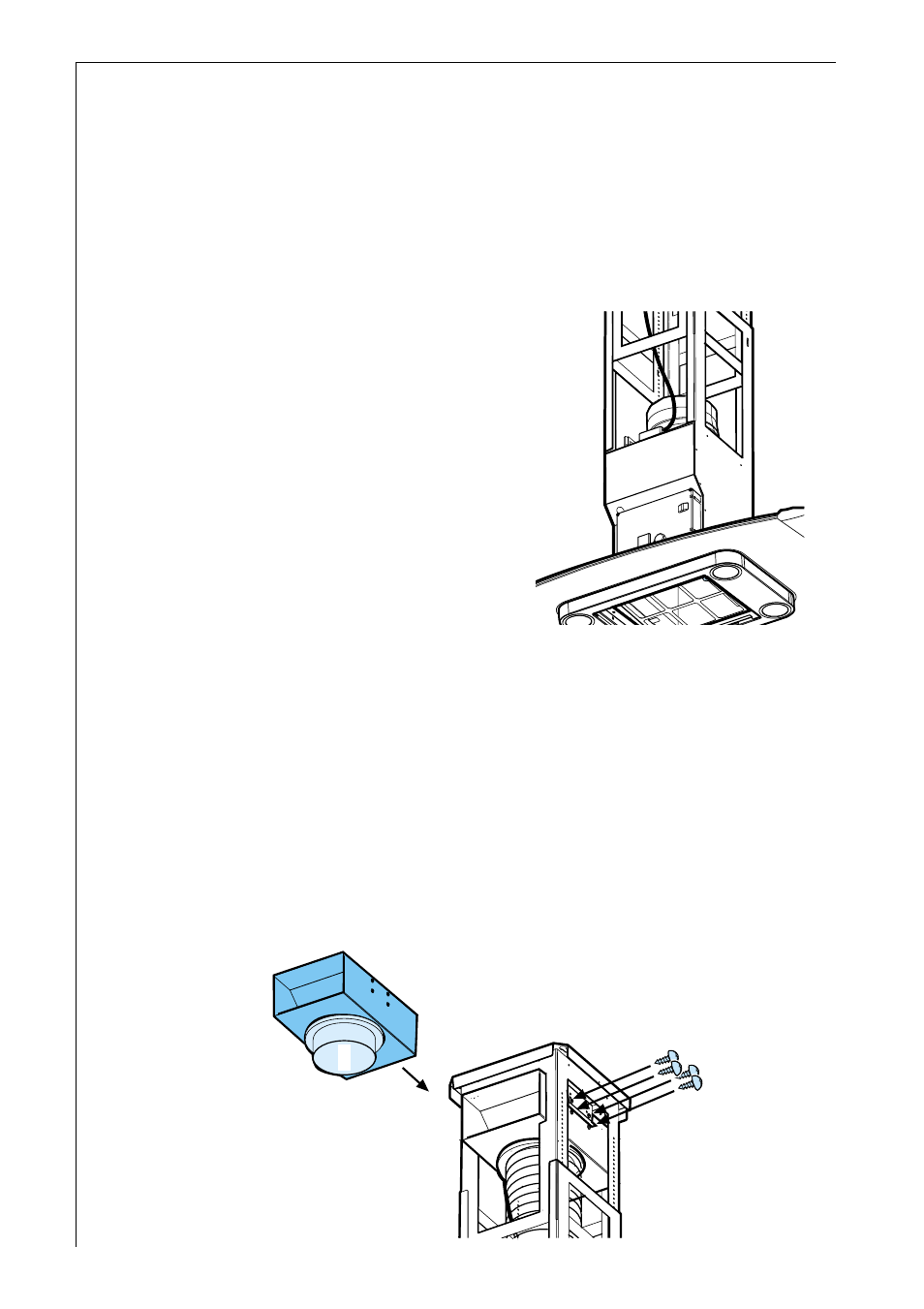

Extractor version
• The air is discharged to the outside through a
pipe, which must be fitted to connection flange
A. Fig. 1.
• In order to obtain the best performance the
hose should have a diameter equal to the outlet
hole.
For the extractor version this pipe must have a
diameter of 150 mm.
Should there already be a pipe of diameter
125 mm that ducts to the outside through the
walls or roof, it is possible to use the 150/125
mm reduction flange provided. In this case the
hood will be slightly noisier.
Fig. 1
A
Recirculation Version
• The air is filtered through an activated charcoal filter and returned to the kitchen
through the top grill of the outlet pipe.
• You will need an original AEG charcoal filter for the recirculation function. (Available
from your local Service Force Centre).
• Fix the deflector using 4 screws Ø 3.5x6.5 mm. Fig. 2.
F
Fig. 2
