NOTE: Take care not to scratch fan housing when
installing blades.

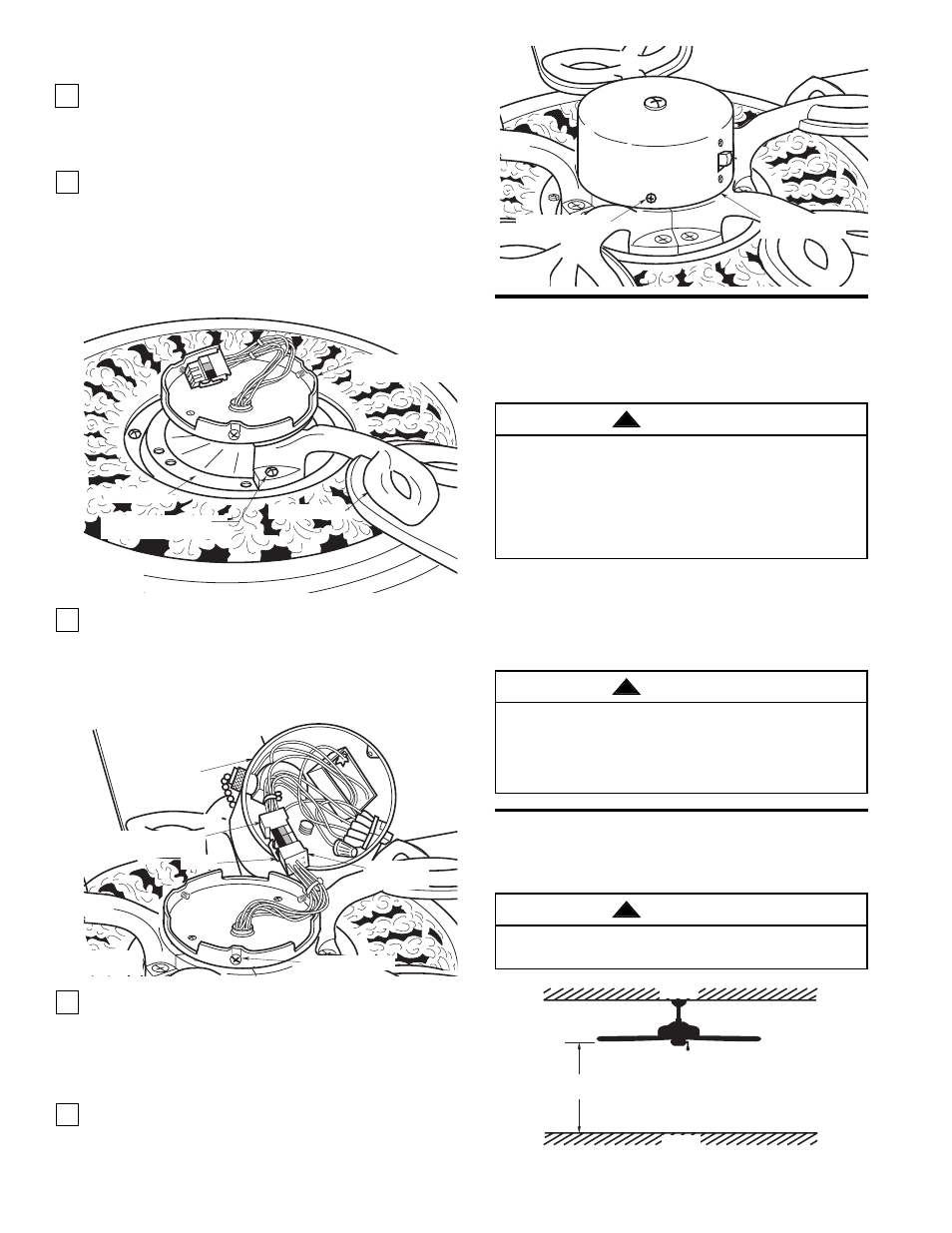

9. Loosely attach one blade assembly to the motor
hub using two 1/4-20 x 1/2” Phillips oval head
flange screws (Figure 5). Make sure the screws
are NOT tightened. Repeat this procedure for the
other four blade assemblies.
10. The blade flanges have an interlocking feature that
must be fully engaged before tightening the
screws. Make sure all the flanges are properly
engaged and then tighten the flange screws. If one
of the flanges does not seat properly on the motor
hub, loosen the adjacent flange screws, re-engage
and reseat the flanges, then tighten the screws
again.
11. Engage the connector of the switch housing
assembly with the motor connector (Figure 6).
The two connectors are keyed and color-coded
and must be mated correctly (color-to-color)
before they can be engaged. Make sure the
connector latch closes properly.
12. Remove the three mounting screws from the switch
housing plate (Figure 6). Position the switch housing
assembly on the switch housing plate and secure
using the three mounting screws (Figure 7).
NOTE: Do not pinch wires between the switch
housing assembly and the switch housing plate.
13. You have now completed the assembly of your
new ceiling fan. You can now proceed with hang-
ing and wiring your fan.
5
MOTOR HUB
FLANGE BLADE
1/4-20 x 1/2" PHILLIPS
OVAL HEAD FLANGE SCREW
SWITCH HOUSING
PLATE
Figure 5
MOUNTING SCREW
SWITCH HOUSING
ASSEMBLY
Figure 7
MOTOR
CONNECTOR
LATCH
SWITCH HOUSING
CONNECTOR
SWITCH HOUSING
ASSEMBLY
MOUNTING SCREW Figure 6
Electrical Requirements
The outlet box must be securely anchored and capa-
ble of withstanding a load of at least 50 pounds.
If your fan is to replace an existing ceiling light fixture,
turn electricity off at the main fuse box at this time and
remove the existing light fixture.
Your new ceiling fan will require a grounded electrical
supply line of 120 volts AC, 60 Hz, 15 amp circuit.
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked acceptable for
fan support, and use screws supplied with outlet
box. Most outlet boxes commonly used for support
of light fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified
electrician if in doubt.
WARNING !
To avoid fire or shock, follow all wiring instructions
carefully.
Any electrical work not described in these
instructions should be done or approved by a
licensed electrician.
WARNING !
How to Hang
Your Ceiling Fan
AT LEAST
7'
CEILING
FLOOR
Figure 8
The fan must be hung with at least 7' of clearance
from floor to blades (Figure 8).
WARNING !
