Route the parking brake signal cable to the main
unit.
- 11 -
Foot-operated
Parking brake
Hand-operated
Parking brake

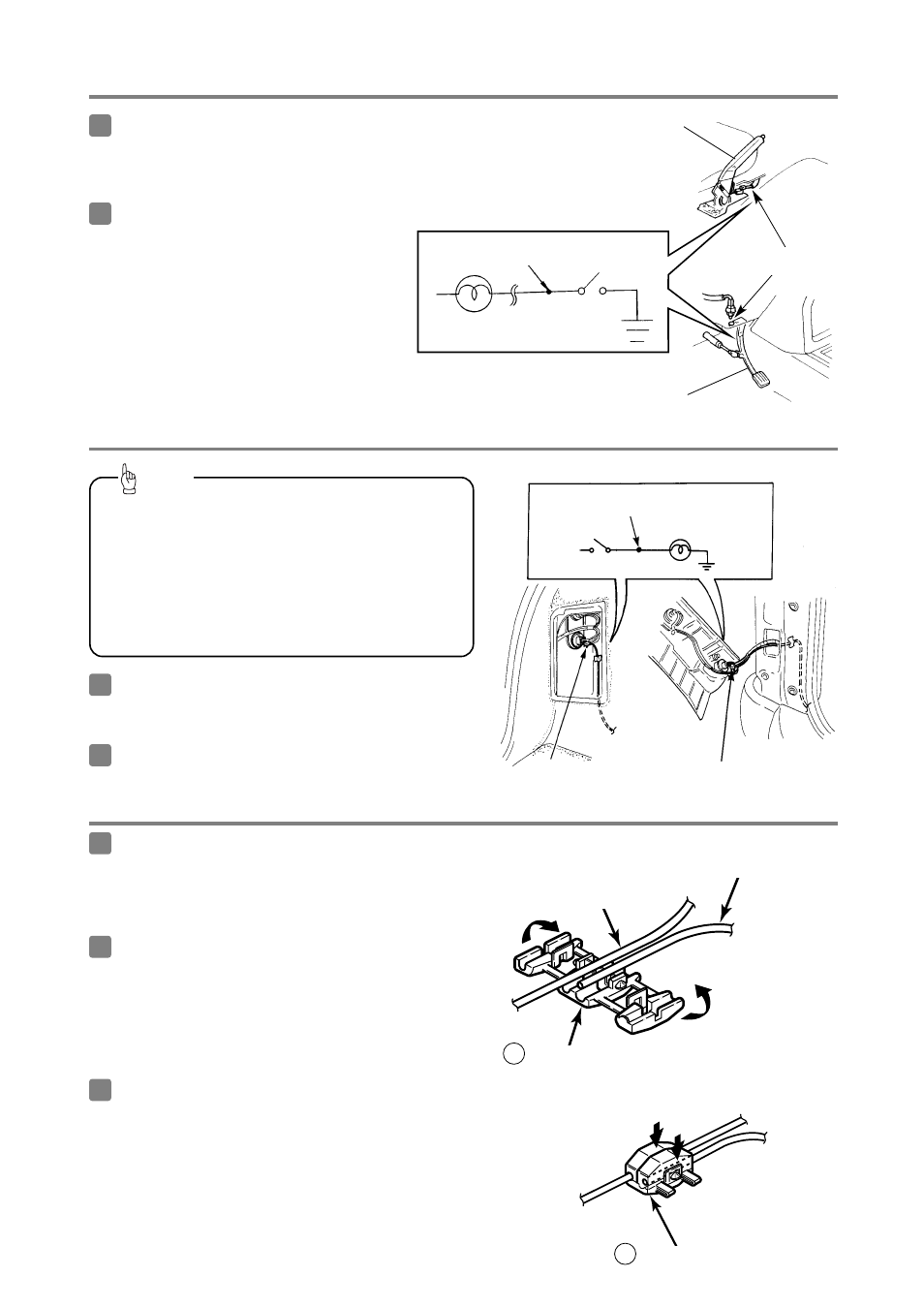

- A connecting the point for parking brake (example) -
Attach a splicing
connector at this location.
Reverse signal cable
Reverse lamp
Reverse signal cable
- A connecting point for the reverse signal (example) -
• • Be sure to connect the reverse signal cable. If it is
not connected, the vehicle position may be
incorrect when the vehicle is reversed.
• • Use a circuit tester to confirm that a sensing
voltage of 6 V or higher is generated when the
vehicle is reversed.
Tip
- Using the splicing connector -
Insert the connection cable [vehicle speed pulse
signal cable (purple/white), parking brake signal
cable (red/white), or reverse signal cable
(green)] from the main unit and the vehicle cable
into the splicing connector. 1
Push in the terminal (the metal part) of the
splicing connector using a pair of pliers. 2
Harness in the car
Vehicle speed pulse signal cable
(purple/white), parking brake cable,
(red/white) or reverse cable (green)
Splicing connector 10
Press down the cover of the splicing connector
and squeeze it until it locks. 3
Lock
Splicing connector 10
Use a splicing connector to connect the reverse
signal cable (green) coming from the main unit to
the reverse signal cable of the vehicle. 1
Route the reverse signal cable to the main unit . 2
Use a splicing connector to connect the parking
brake signal cable (red/white) coming from the
main unit to the parking brake signal cable of the
vehicle. 1
2
Parking brake
Signal Cable
Attach a splicing
connector at this location.
Parking brake
signal cable
