Direct-Thermal LP Model
Before following the steps in this procedure, open the printer by
pulling the release latches forward then lifting the top cover.
Removal

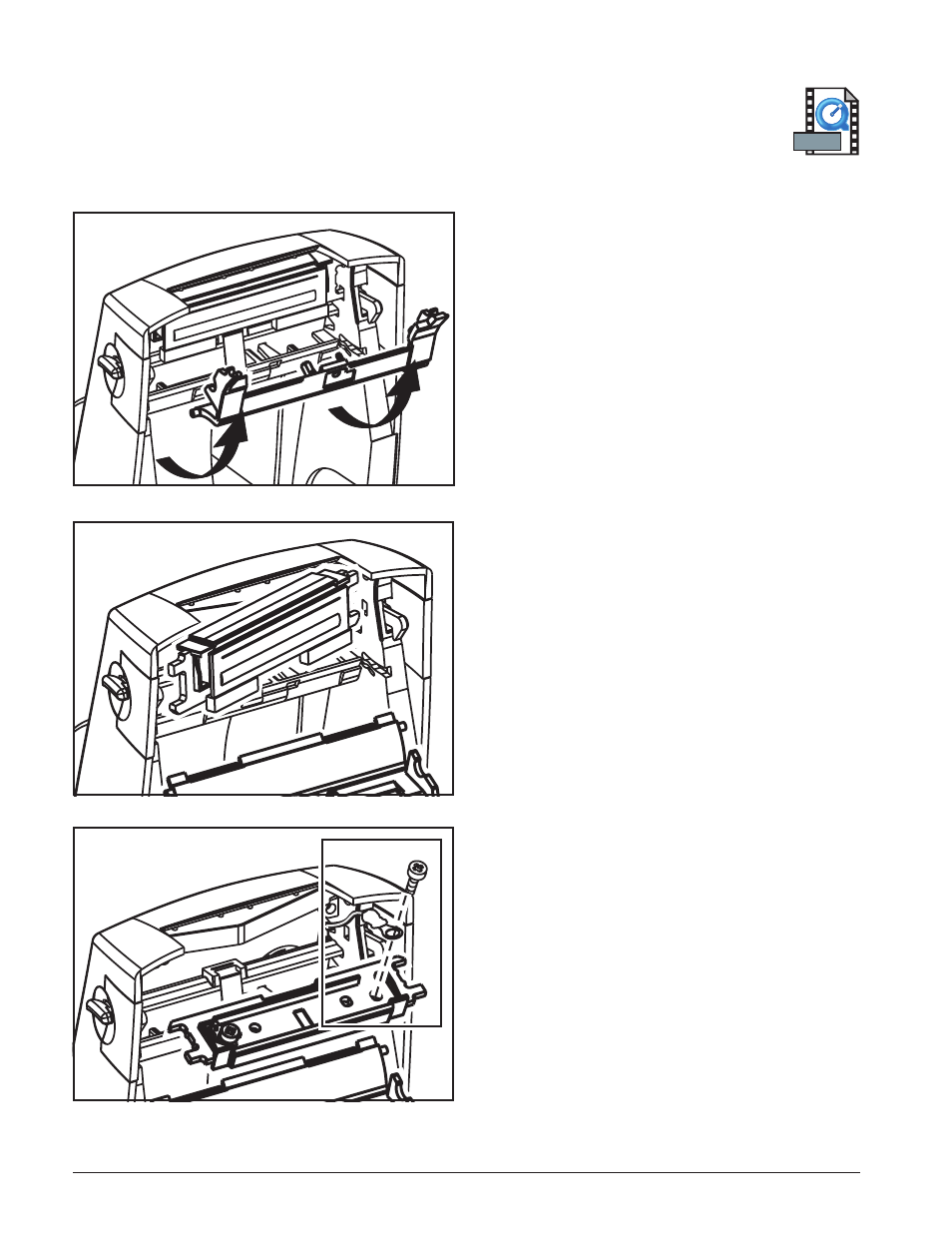

1. Unsnap the bracket from the lid.
2. Slide the print head to one side until it
is free of the lid.
3. Use a #1 Phillips driver to loosen the
screw that holds the ground wire to
the bracket; pull the wire away from
the bracket.
4. Unplug both bundles of print head
wires from the left and right
connectors.
30
980481-001A
