5
Rev.052411‐AS
www.elitescreens.com [email protected]

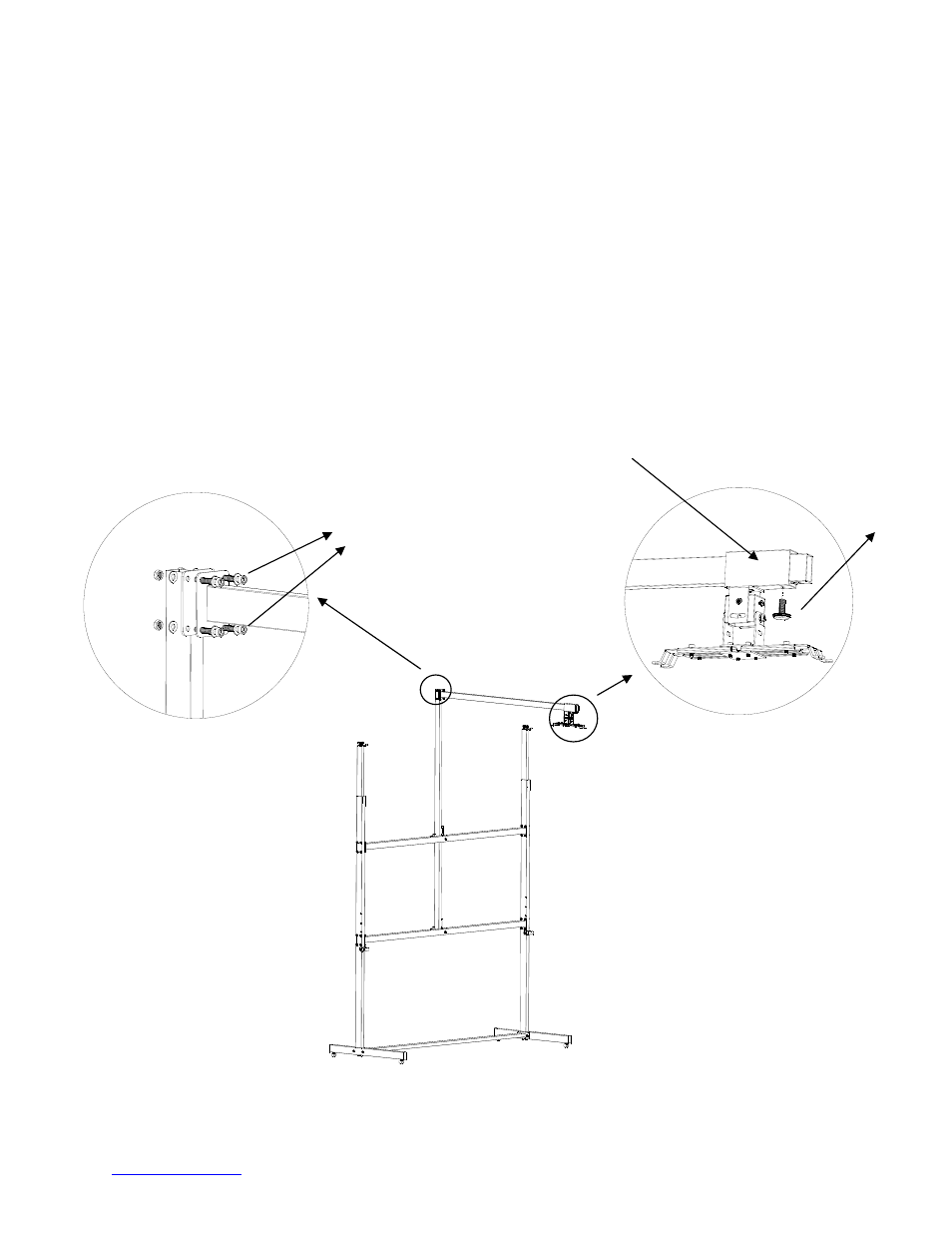

8. Attach the Projector Rail (g) to the Center Upright Bar (e) and secure with M6x15
screws (l), M6 washers (q) and M6 nuts (o).
9. Attach the Center Upright Bar (e) to the Middle Center Bar (d2) and to the Top
Center Bar, and secure with the M8x50 screw (s).
10. Attach the Rail Bracket (h) to the projector mount and to the Projector Rail (g),
and secure with the M8x20 screw (p).
(h) rail bracket
(l) M6x15
e
g
(p) M8x20
