3
Rev.052411‐AS
www.elitescreens.com [email protected]
Elite Screens recommends two persons to fully assemble the Universal Mobile Stand. Please follow
the installation instructions carefully and make sure all screws are secure before installing your
WhiteBoardScreen Universal to your Universal Mobile Stand.
1. Attach the Wheels (k) to the Bottom Legs (a).
2. Attach the Bottom Legs (a) to the Side Legs (b) and secure with the M6x60 screws
(r), M6 washers (q), and M6 nuts (o).
3. Attach the Bottom Center Bar (c) as shown in the figure below and secure with
the M6x35 screws (n), M6 washers (q) and M6 nuts (o).

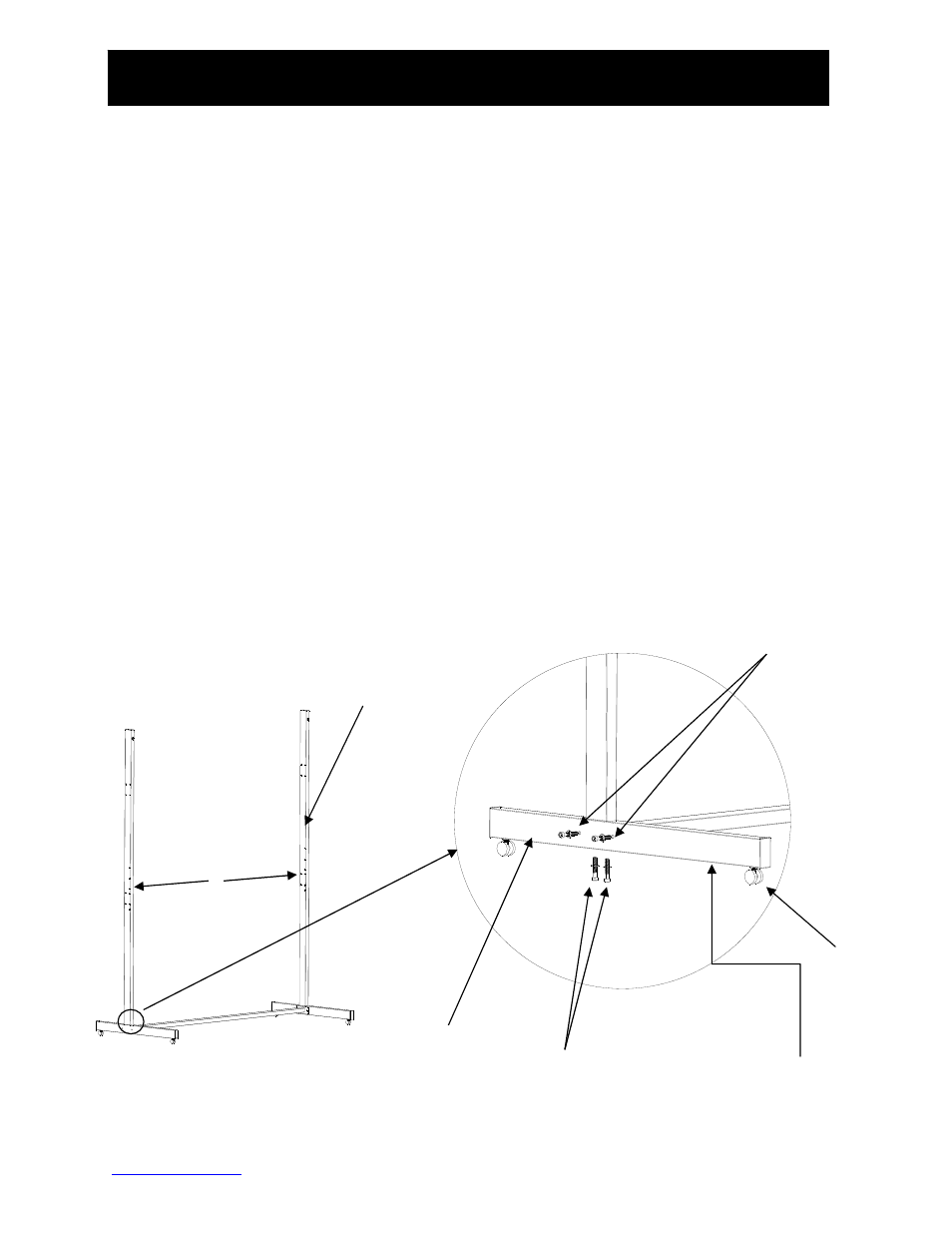

4. The installation should look like the illustration below.
Installation Instructions
b
Front side with 6
screw holes
Shorter side (rear)
(r) M6x60
(n) M6x35
Longer side (front)
(k) Wheel
