LUBRICATION

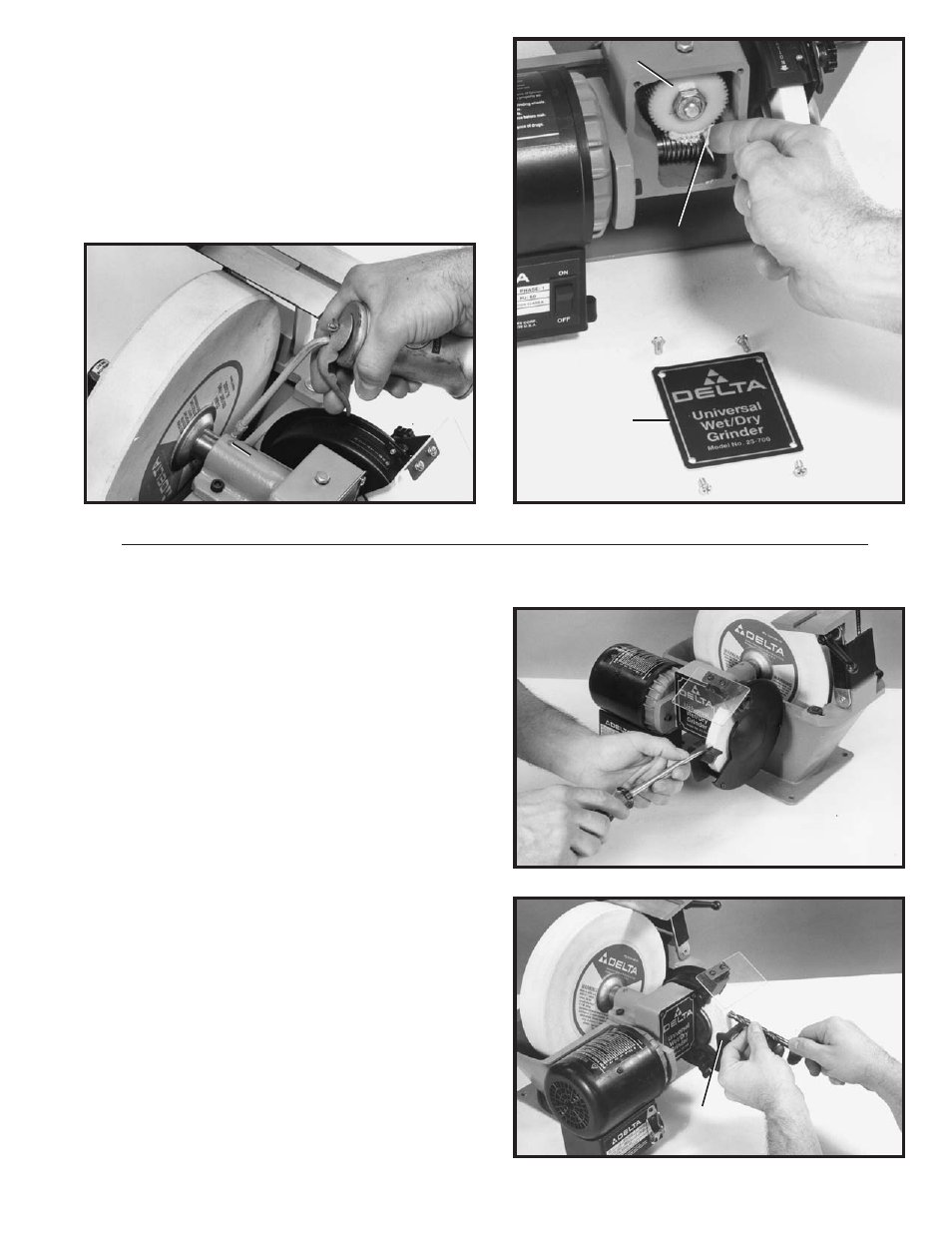

Occasionally lubricate the arbor shaft with light machine
oil, through the oiler (A) Fig. 22, provided.
To lubricate the worm gears (A) and (B) Fig. 23, remove
the nameplate (C) and apply grease to the two gears (A)
and (B) as shown.
Fig. 22 Fig. 23
OPERATION
Fig. 24
Fig. 25
FIVE INCH
DRY GRINDING WHEEL
The five inch diameter aluminum oxide grinding wheel
operates at 3450 RPM and is used for many grinding
operations, such as pointing screwdrivers as shown in
Fig. 24. Scissors, putty knives, wood chisels and drill bits
such as shown in Fig. 25, can also be sharpened easily
on the five inch grinding wheel.
Set the tool rest (A) Fig. 25, slightly below the center of
the grinding wheel for general work and adjust it so it
supports the tool at the proper grinding angle. Make cer-
tain all safety precautions are taken before applying
power to the machine.
