Electro-Voice ZX3-90 - Manual (Page 2)

20 100 1000 10000 20000
360
100
20
3.6
Horizontal Vertical
Frequency (Hz)
-6dB Beamwidth (degrees)
Preliminary
12000 Portland Avenue South, Burnsville, MN 55337
Phone: 952/884-4051, Fax: 952/884-0043
www.electrovoice.com
© Bosch Communications Systems 12/2007
Part Number LIT000170 Rev 1
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: 800/955-6831
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other Internatonal locations. For customer orders, Contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 887-9212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
Electro-Voice ®

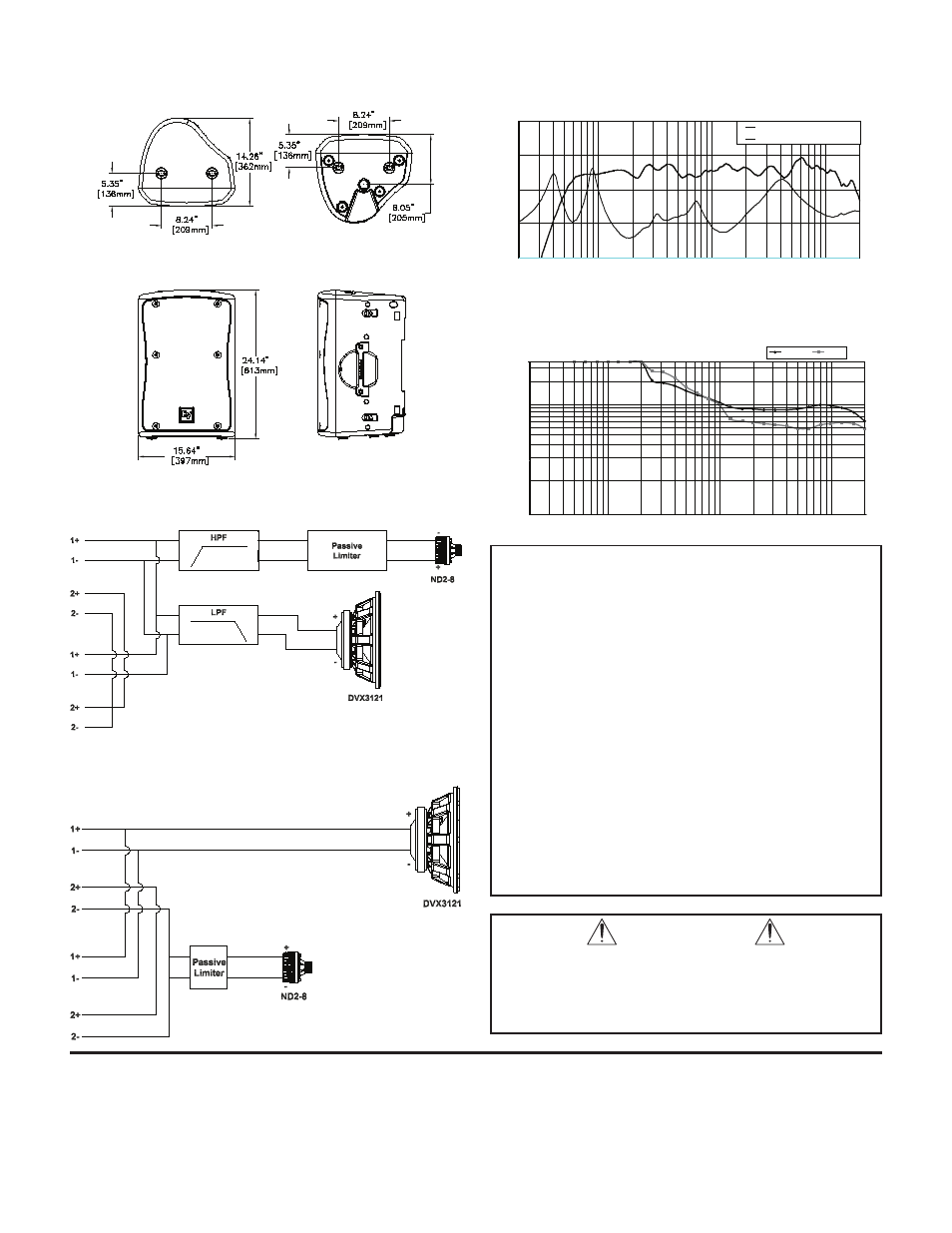

Dimension Drawings:
Top View
Front View
Bottom View
Right View
CAUTION
This Zx3 Loudspeaker should be suspended overhead only in ac-
cordance with the procedures and limitations specified in the Zx3
Users Manual and possible manual update notices. This system
should be suspended with certified rigging hardware by an autho-
rized rigging professional and in compliance with local, state, and
federal overhead suspension ordinances.
Zx3 Part Numbers
PRD000117-001 Zx3-90B, 90° x 50° Horn, Black •
PRD000117-002 Zx3-90W, 90° x 50° Horn, White •
PRD000117-003 Zx3-60B, 60° x 60° Horn, Black •
PRD000117-004 Zx3-60W, 60° x 60° Horn, White •
PRD000117-005 Zx3-90PI-B, 90° x 50° Horn, Black, Weather Resistant •
PRD000117-006 Zx3-90PI-W, 90° x 50° Horn, White, Weather Resistant •
PRD000117-007 Zx3-60PI-B, 60° x 60° Horn, Black, Weather Resistant •
PRD000117-008 Zx3-60PI-W, 60° x 60° Horn, White, Weather Resistant •
Performance Match
301576-001 SbA760, 120V Single 15” Powered Sub, 760W •
D170312 CP3000S, 120V Power Amplifier, 2 x 1100W •
D170258 CP2200, 120V Power Amplifier, 2 x 800W •
Accessories
301625-001 CB5-B, Array Bracket Kit (Black) •
301625-002 CB5-W, Array Bracket Kit (White) •
301634-000 EBK-3, Forged M8 Eyebolt Kit, Set of Three •
301633-000 SSK-1, Single-Stud Rigging Kit, Set of Three •
ASY000032-001 MB3-B, Wall/Ceiling Mount Bracket (Black) •
ASY000032-002 MB3-W, Wall/Ceiling Mount Bracket (White) •
ASY000031-001 HDC-3, Heavy-Duty Stackable Cover (Black) •
KIT000023-001 TMK-ZX3, Truss-Mount Kit, Includes VSA-1, •
TCA-1, and HA-3 (Black)
Frequency Response & Impedance:
Beamwidth:
Block Diagram (Biamp):
Block Diagram (Passive):
20 50 100 1000 10000 20000
3.16
10
100
316
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
Impedance (Ohms)
Passive Mode, Half Space
Impedance
