Product Overview
Wheel Base: (Center of Caster Tire to
Center of Drive Tire)
52 inch Deck 60 inch Deck
43.3 inches (110.0 cm) 43.3 inches (110.0 cm)
Curb Weight:
52 inch Deck 60 inch Deck
740 lb (336 kg) 780 lb (354 kg)
Torque Requirements
Bolt Location Torque
Cutter Housing Spindle
Nut 140–145 ft-lb (190–197
N-m)
Blade Mounting Bolt
(lubricate with anti-seize) 55-60 ft-lb (75-81 N-m)
Engine Deck/Mower
Deck Support Mount
Bolts 30-35 ft-lb (41-47 N-m)
Anti-Scalp Roller Nyloc
Nut See Figure 9 30-35 ft-lb (41-47 N-m)
Anti-Scalp Roller Whizlock
Nut See Figure 9 30-35 ft-lb (41-47 N-m)
Engine Mounting Bolts 15-20 ft-lb (20-27 N-m)
Wheel Lug Nuts 90-95 ft-lb (122-129 N-m)
Wheel Hub Slotted Nuts
(Style A) 140-155 ft-lb (190-210
N-m)
Wheel Hub Slotted Nuts
(Style B) minimum 100 ft-lb (136
N-m)
Clutch Retaining Bolt
(secured with threadlocker) 55-60 ft-lb (75-81 N-m)
Wheel Motor Mounting
Bolts 30-35 ft-lb (41-47 N-m)
Product Overview

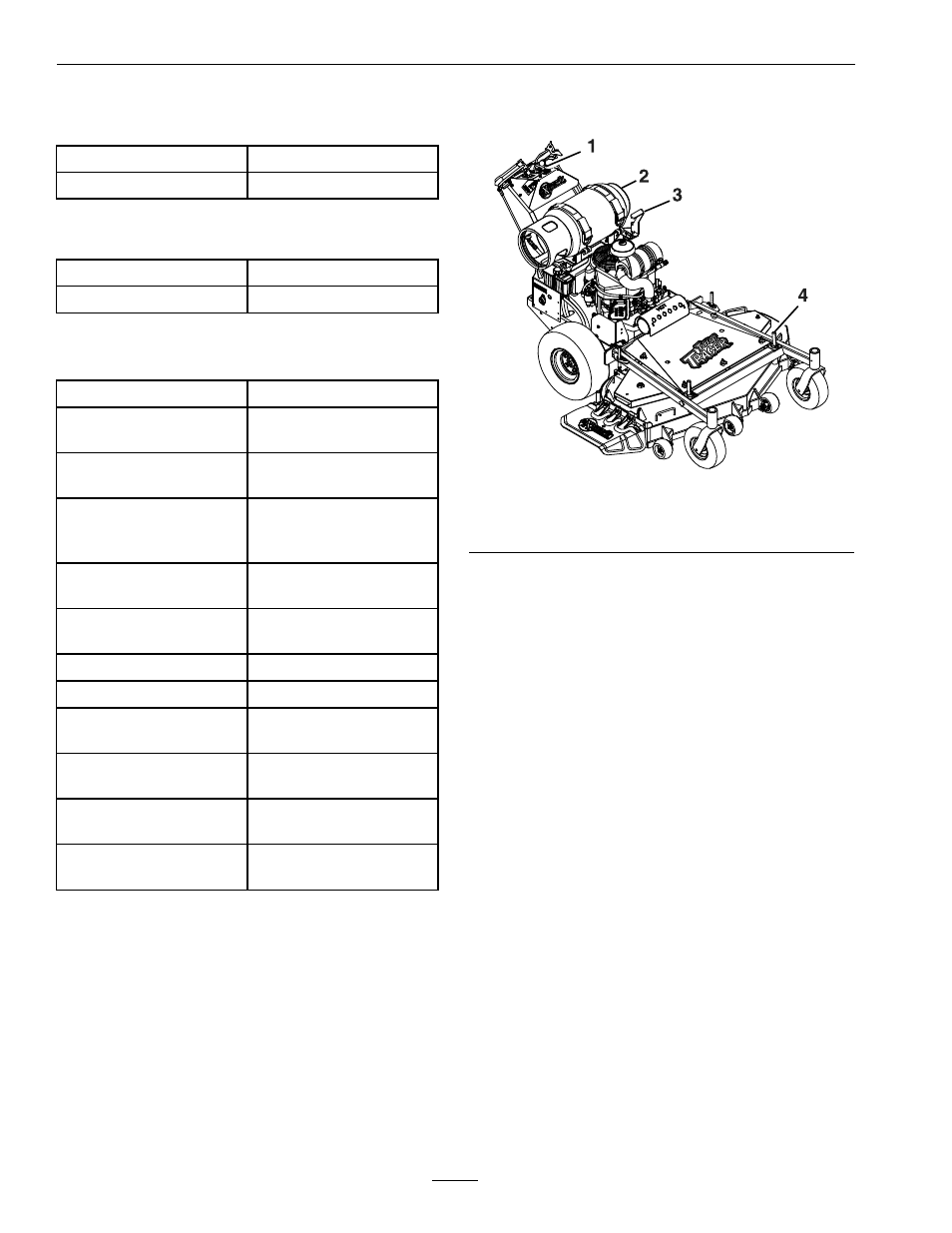

Figure 3
1. Controls 3. Park Brake Lever
2. LPG Fuel Tank 4. Height-of-Cut Pins
16
