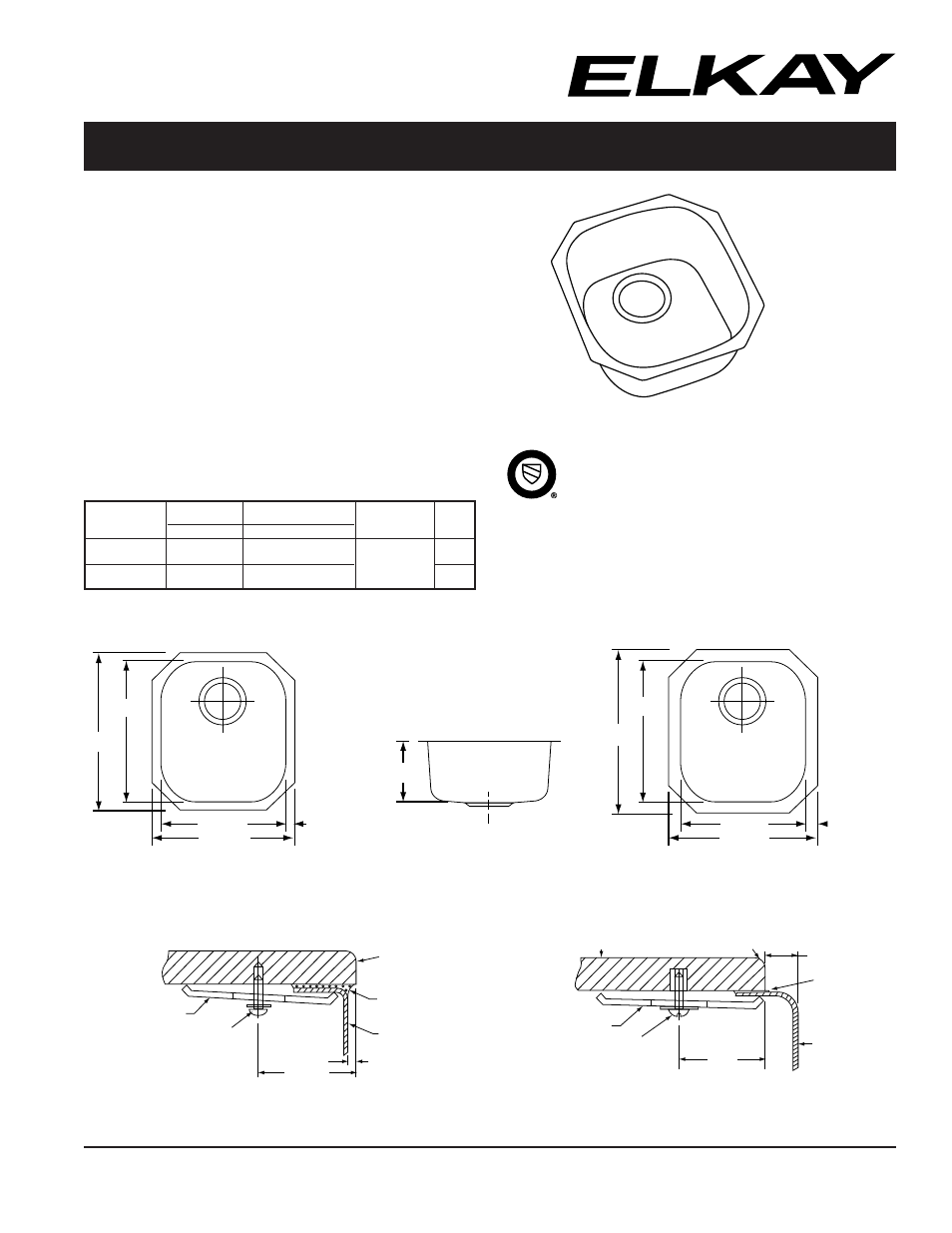

Lustertone

®

Undermount Single Bowl Sink

Models ELU1113 and ELUH1113

®

SPECIFICATIONS

GENERAL

Highest quality sink seamlessly drawn of #18 gauge, type 304

(18-8) nickel bearing stainless steel. Underside of sink is fully

protected by heavy duty Sound Guard

undercoating.

Designed to accept waste disposer.
DESIGN FEATURES

Bowl Depth: 5-15/16".

Finish: Exposed surfaces are hand blended to a lustrous

highlighted satin finish. ELUH1113 model has highlighted

inside top bowl radius.

Underside: Fully protected by heavy duty Sound Guard

undercoating to prevent condensation and deaden sound.
OTHER

Drain Opening: 3-1/2".

Note: All Elkay custom design undermount sinks are designed

to affix easily to the underside of any solid surface countertop.

Installation: See illustrated profile below.

Recommended Minimum Sink Base:

Elkay Manufacturing Company

2222 Camden Court

Oak Brook, IL 60523

Printed in U.S.A.

©2001 Elkay Mfg. Co.

(Rev. 7/01)

1-117C

www.elkay.com

Model ELU1113

In keeping with our policy of continuing product improvement, Elkay reserves the right to change

product specifications without notice.

This specification describes an Elkay product with design, quality and functional benefits to the

user. When making a comparison of other producers’ offerings, be certain these features are not

overlooked.

These sinks comply with ANSI Standard A112.19.3M.

These sinks are listed by the International Association

of Plumbing and Mechanical Officials as meeting the

requirements of the Uniform Plumbing Code.

I

A

P

M

O

UPC

F

O

UNDED 19

26

ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.

ELU1113 Illustrated

3/4" TYP.

(8 SIDES)

14-3/4"

13-1/4"

5-15/16"

13-1/4"

11-3/4"

ELUH1113 Illustrated

1-1/4" TYP.

(8 SIDES)

15-3/4"

13-1/4"

14-1/4"

11-3/4"

(ELUH Single bowl)

COUNTERTOP

CONTOUR EDGE
TO CUSTOMER DESIRE

MOUNTING
BRACKET

1/2"

SILICONE
CAULK
(NOT
FURNISHED)

SINK

1-1/8"

FASTENER
(NOT FURNISHED)

Installation Profile of ELU and ELUH Single Bowl Models

The template provided with each ELU/ELUH sink provides the only type of installation recommended by Elkay.

1/8" Countertop
Overhang
(ELU Single bowl)

MOUNTING
BRACKET

COUNTERTOP

SILICONE CAULK
(NOT FURNISHED)

SINK

1/8 (APPROX.)
OVERHANG

1-3/8"+1/4"

FASTENER
(NOT FURNISHED)

_

SINK DIMENSIONS (INCHES)*

*

Length is left to right. Width is front to back.

**Template and countertop mounting clips are packed with every sink.

Ship.

Model

Overall

Inside Bowl

Cutout in

Wt.

Number

L

W

L

W

D

Countertop

Lbs.

ELU1113

13

1

/

4

14

3

/

4

11

3

/

4

13

1

/

4

5

15

/

16

See

7

ELUH1113

14

1

/

4

15

3

/

4

11

3

/

4

13

1

/

4

5

15

/

16

Template**

7
