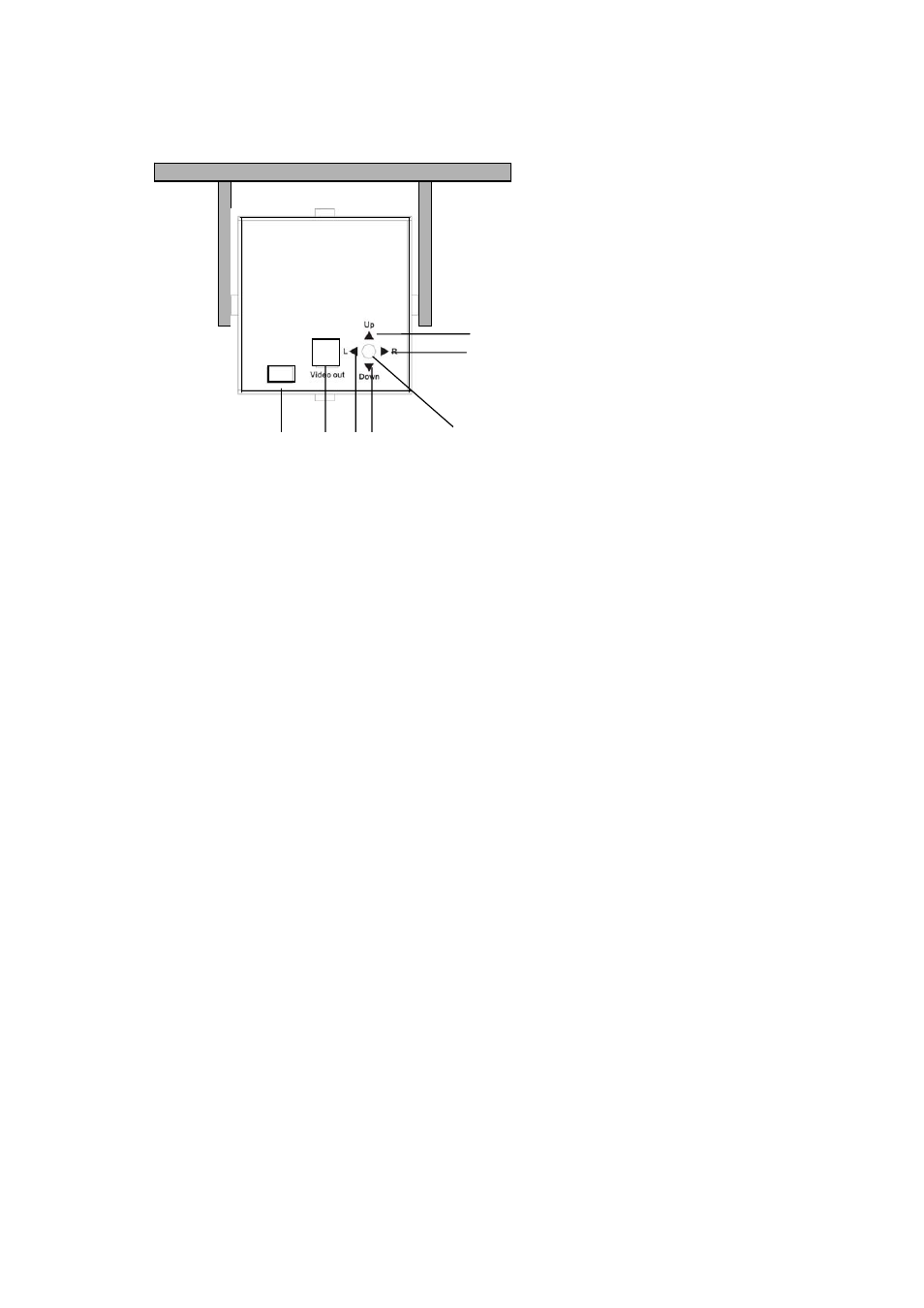

2.2 Back Panel
(1) Power Input Terminal & Video Output Connector
Connect to the appropriate power to each model. Video Output connector is for connecting
the video output of the camera to a color monitor or other video devices through a 75 Ohm
type coaxial cable with BNC female connector at backside of the camera.
(2) Second Video Output Connector
When installing the camera, you can use second video connector to connect a portable
monitor, this will allow you to easily adjust camera’ angle.
(3) Adjust the Switch to Left direction
(4) Adjust the Switch to Down direction
(5) Adjust the Switch to Right direction
(6) Adjust the Switch to Up direction
(7) Press the button for on-screen setting menu
(1) (2) (3) (4)
(5)
(6)
(7)
