z Please select the area you would like to detect from the 4 areas in AREA SEL mode.
z Please select ON mode for the chosen area.
z Please adjust the switch to UP or DOWN direction to move between TOP, DOWN,
LEFT and RIGHT for adjusting the size of the area to be detected.
z Please adjust the switch to LEFT or RIGHT direction to adjust the value for size of
the area to be detected.
z Additionally, it is possible to change the position of the area to be detected. Please
refer to the following example for detailed steps on moving AREA1 to center.
1. The original position of AREA1 was TOP: 10, DOWN: 25, LEFT: 20 and RIGHT: 40.
MOTION DETECTION
> AEREA SEL AREA1
AREA STATE ON
TOP
|+++++++++| 10
DOWN |+++++++++| 25
LEFT |+++++++++| 20
RIGHT |+++++++++| 40
SPECIAL
CAMERA ID OFF
COLOR ADJ. <┘
SYNC. INT
> MOTIION DET ON <┘
PRIVACY OFF
MIRROR OFF
SHARPNESS ON <┘
RESET
RETURN <┘

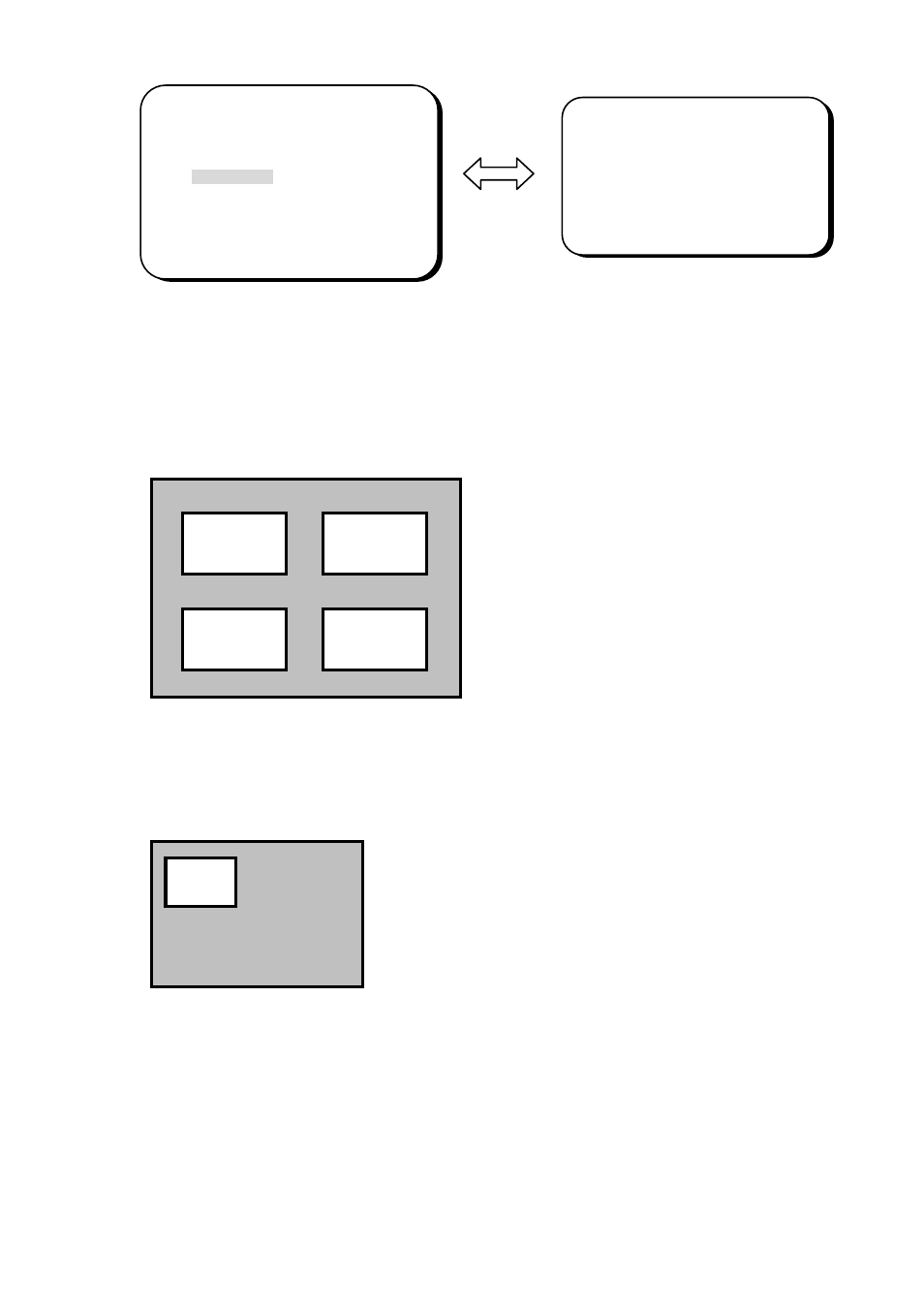

AREA1 AREA2
AREA3 AREA4
AREA1
