Sealey CP1440 - Manual (Page 2)

2. INTRODUCTION & SPECIFICATION
3. OPERATION
fig.1
Powerful, compact cordless impact wrench with electronic variable speed trigger. Forward, reverse and trigger lock control integrated
into the housing for ease of use. Superbly balanced tool with vibration reducing grip. Suitable for workshop applications. Includes 14.4Volt
Ni-Cad battery pack and 1 hour mains charger.
Drive: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3/8” Square
No-Load Speed:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-2200rpm
Impact Rate: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-2900bpm
Maximum Torque: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150lb.ft / 2075kg.cm
Weight:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.8kg
Battery Pack: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.4V (Model No. CP1440BP)
Noise Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88dB.A
Noise Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99dB.A
 IMPORTANT WARRANTY INFORMATION:
The battery pack fitted to this cordless tool is considered to be a consumable item
and its ability to accept charge will reduce over time. We will warranty it against
mechanical and electrical defect for a period of one year - this does not cover fair
wear and tear. If the battery is not properly charged before first use, or regularly
conditioned, its capacity will diminish. Under these circumstances we will not
replace the battery pack even if it is less than one year old.
3.1 CHARGING THE BATTERY PACK
3.1.1 Remove the battery pack (fig.1.4) from the wrench, by depressing the two side
release clips (fig.1.3).
 WARNING! Do not touch metal terminals.
3.1.2 Place wrench in carry case and remove the battery charger.
3.1.3 The battery pack and charger’s positive (+) and negative (-) terminals are
marked. Align the terminals correctly and insert the battery into slot (fig.2).
Note: The battery pack is designed so that it will only enter the charger unit the correct
way.
When placed in the charger, a very slight downward pressure will seat the pack
firmly into the power terminals.
3.1.4 Switch on main supply to charger and the Green LED (fig.2) will light. Press
“SET” to begin charging and the Red LED will light.
1.3.3 Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See 1.3.1 and 1.3.2
and use a Portable Appliance Tester.
1.3.4 Ensure that cables are always protected against short circuit and overload.
1.3.5 Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure none is loose.
1.3.6
Important: Ensure that the voltage marked on the appliance matches the power supply to be used and that the plug is fitted with the
correct fuse - see fuse rating at 1.3.9.
1.3.7 DO NOT pull or carry the appliance by the power cable.
1.3.8 DO NOT pull the plug from the socket by the cable.
1.3.9 DO NOT use worn or damage cables, plugs or connectors. Immediately have any faulty item
repaired or replaced by a qualified electrician. When an ASTA/BS approved UK 3 pin plug is
damaged, cut the cable just above the plug and dispose of the plug safely.

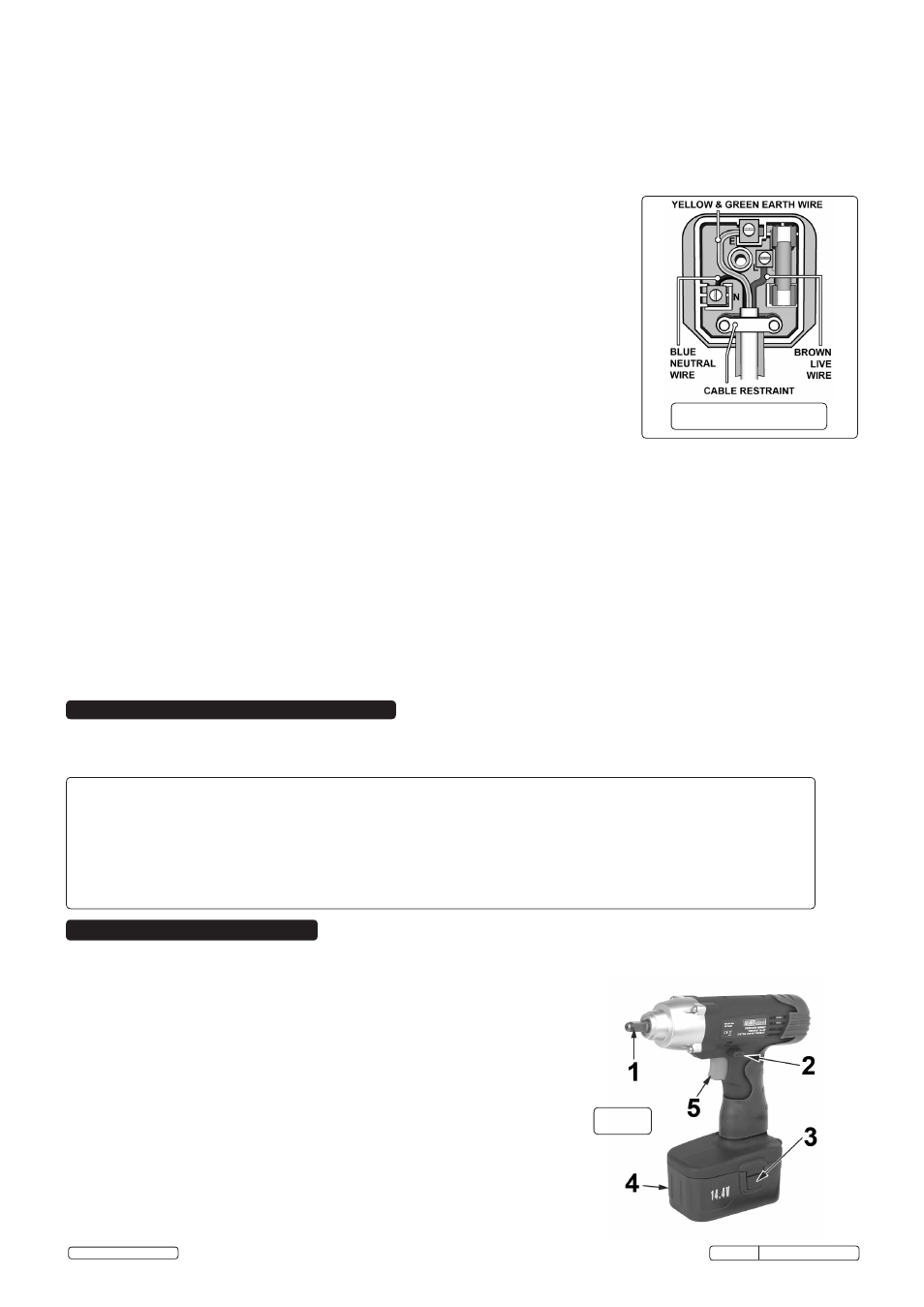

Ensure that the double insulated charger is correctly connected via a three-pin plug, as follows:
a) Connect the Brown live wire to live terminal ‘L’.
b) Connect the Blue neutral wire to the neutral terminal ‘N’.
c) After wiring, check that there are no bare wires, that all wires have been correctly connected,
that the cable outer insulation extends past the cable clamp and that the clamp is tight.
Note that the earth pin ‘E’ remains unconnected.
1.3.10 If an extension reel is used it should be fully unwound before connection. A reel with an RCD
fitted ispreferred since any appliance plugged into it will be protected. The cable core section is
important and should be at least 1.5mm², but to be absolutely sure that the capacity of the
reel is suitable for this product and for others which may be used in the other output sockets,
we recommend the use of 2.5mm² section cable. If extension reel is to be used outdoors,
ensure itis marked for outdoor use.
1.4 BATTERY CHARGER SAFETY INSTRUCTIONS

WARNING! DO NOT attempt to charge any battery other than that supplied for the wrench. Other types of batteries may
explode!

All mains electrical supply safety features must be followed as described in 1.3 above.

Disconnect the charger from the mains supply when not in use.

DO NOT charge battery if room temperature is below 10°C (50°F) or above 40°C (104°F).

DO NOT expose the charger to damp or wet conditions.

DO NOT pull or carry the charger by the power lead.

DO NOT operate the charger if it has been dropped, or has received a sharp knock, or is damaged. Take the charger to an authorised
agent for repair or obtain a replacement.

DO NOT dismantle the charger as this may cause damage and/or personal injury and will invalidate the warranty.

DO NOT insert foreign objects or material into the hole reserved for the battery pack.

DO NOT recharge a second battery pack immediately after charging the first. Consecutive charging will overheat the charger. Allow the
unit to cool for 15 minutes before charging the next pack.

DO NOT attempt to connect two chargers together.

Store the charger in the same manner as the battery pack in 1.2.
RECOMMENDED FUSE
RATING; 5A
Original Language Version
CP1440 Issue: 5(L) - 20/04/15 © Jack Sealey Limited
