Innovative portable barbeque designed for home or picnic use. Features a two piece iron grill, stainless steel tube burner, black foldable plastic

legs, removable side shelves and temperature gauge. It is painted in enamel which is both stylish and practical. Supplied with clip on propane

regulator for use with patio gas bottles.

MODEL: ................................................................................... BBQ07

Dimensions (WxDxH): ..........................................930 x 440 x 400mm

Cooking Area: ....................................490 x 365mm Ovular (1300cm²)

Gas Category: ..................................................................... I

3+(28-30/37)

Heat Output: ............................................................................... 3.4kw

2. INTRODUCTION

3. SPECIFICATION

4. CONTENTS

Original Language Version

BBQ07 Issue: 1 - 05/01/15

5. OPERATION

To operate this barbecue you will need to purchase a 5kg. Patio gas bottle. Plug the supplied regulator on to the gas bottle valve.

5.1 INSTALLATION

5.1.1. Check security of barbecue module fixings; a cross head screwdriver will be required only.

5.1.2. Assemble the barbecue as illustrated in fig.1, no tools are required.

5.1.3. Position your gas bottle at the side of your barbecue, remember the bottle must be kept away from heat, and be in a safe position.

5.1.4. Check the control knob on the barbecue is in the "OFF" position fig.3. Check the regulator is in the off position (lever horizontal).

5.1.5. Connect the supplied hose to the barbed fitting on the barbecue and the regulator. A smear of washing up liquid will assist. Secure

with supplied hoseclips.

5.1.6. Switch on the regulator (lever verticle)

5.1.7. Perform the Gas Leak Test as described in Safety Precautions Section 1 and Maintenance Section.

5.1.8. Check the hose before each and every use, looking for cracks, cuts or any abrasions. If the hose is found to be faulty in any way,

DO NOT attempt to use your barbecue, replace the hose with one from your Sealey dealer.

2-"D" shaped grilles

2-Hinged removable

utility side trays

Hose, Hoseclips &

gas regulator

Barbecue module

with hinged lid

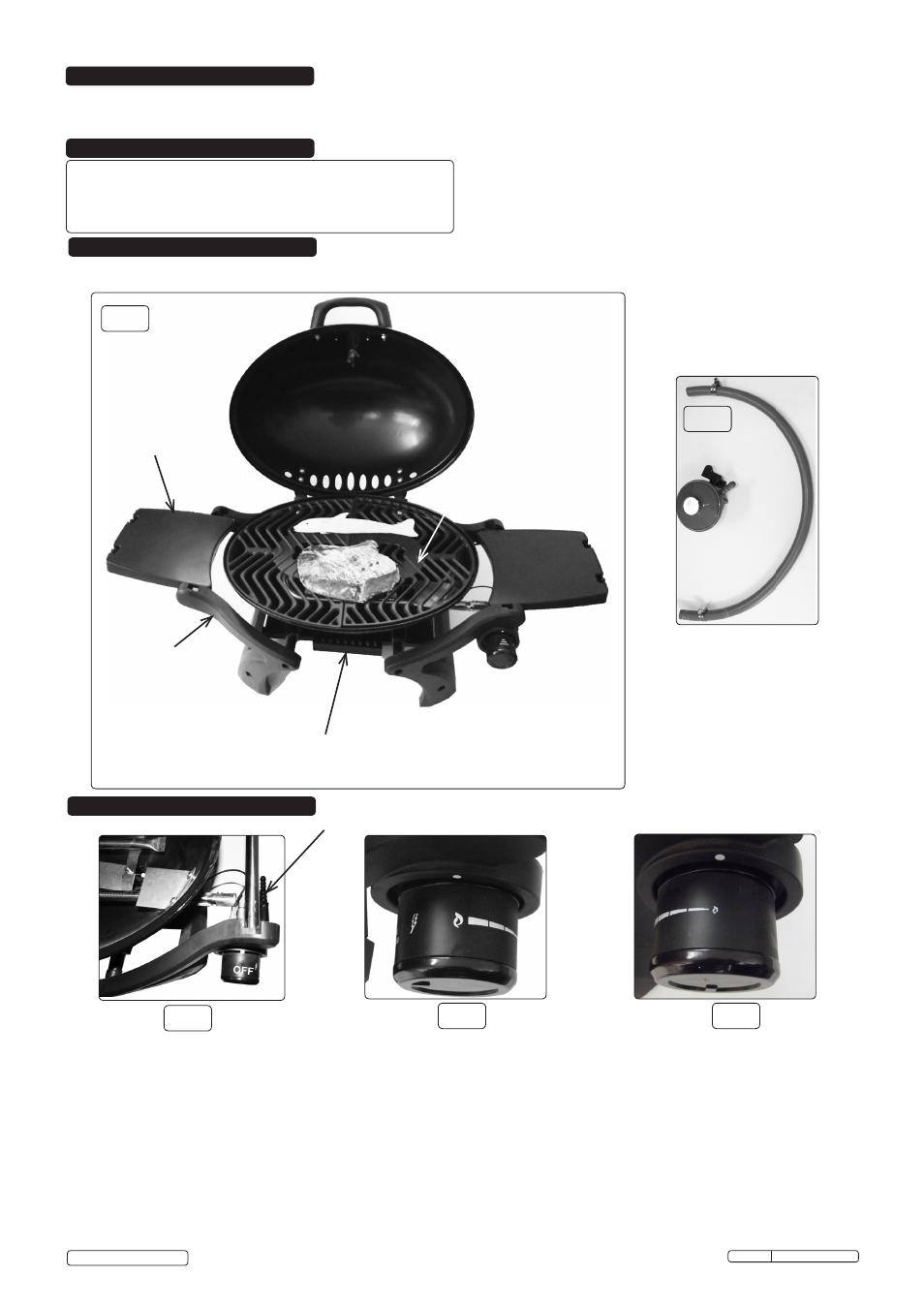

fig.1

fig.2

fig.3

27mm push-on

regulator in the

"off" position

Hot fat drip tray

fig.4

fig.5

gas connection
