10

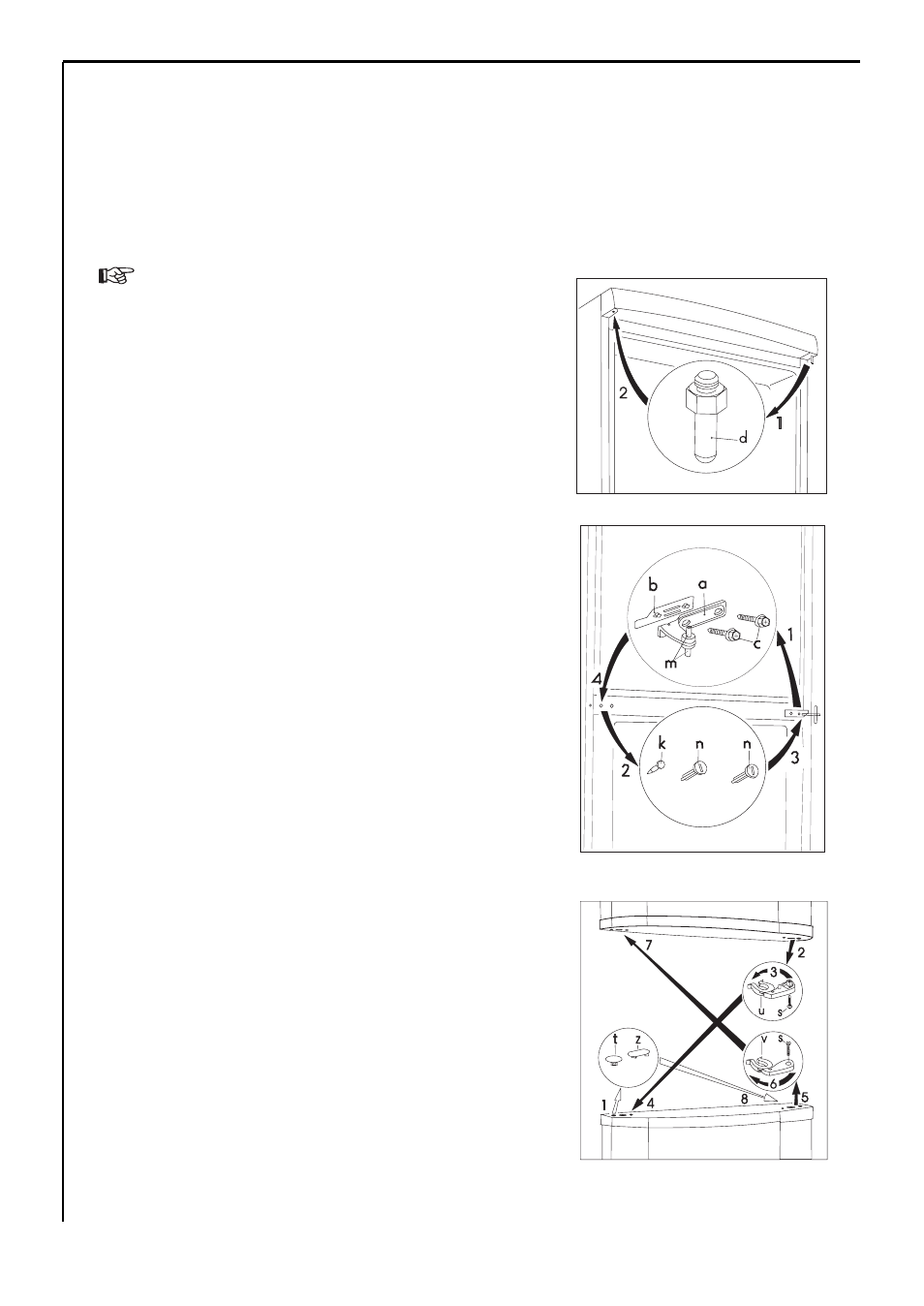

Change of door opening direction
Should the setting-up place or handling demand it, door-opening direction
can be refitted from right-handed to left-handed.
Appliances on the market are right-handed.
Following operations are to be done on the basis of figures and explanations:
1. To perform the operations listed below it is
recommended to ask another person for help
who safely can keep the doors while perform-
ing the operations.
2. Disconnect the appliance from the electricity
supply.
3. Open the doors and dismount the double
door hinge (a,b) by removing the screws (2
pieces) (c). (fig. 2)
4. Take off the double door hinge (a,b,c) by grad-
ually removing it from the cabinet, slightly
tilting both doors. Do not forget to remove
the plastic spacer (b) under the hinge. (fig. 2)
5. Take off the refrigerator door by pulling it
slightly downwards.
6. Take off the freezer door by pulling it slightly
upwards.
7. Unscrew the top door hinge pin (d) of the
refrigerator then screw it back on the other
side. (fig. 1)
8. Remove the insert of the plinth (e) by a screw-
driver. (fig. 4)
9. Unmount the lower hinge pin (f) and its wash-
er (h) and mount them on the other side.
(fig. 4)
10. Replace the insert of the plinth (e) on the
other side.
11. Remove the covering nails (3 pieces) (n,k) of
the double door holder on the left side and
put them to the other side. (fig. 2)
12. Remove the (t, z) plugs from both doors.
(fig. 3)
13. Remove the (u, v) door closing devices by
unscrewing the (s) screw.
14. Replace the (u, v) door devices on the opposite
side of the other door after turning them,
then fix them by screwing the (s) screw.
