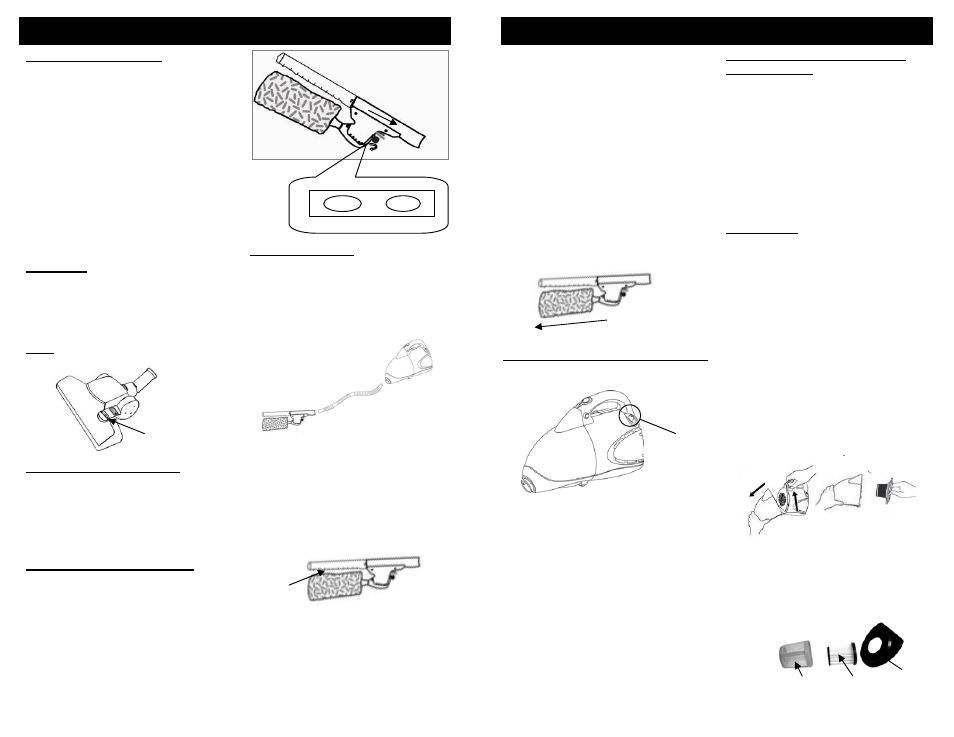

OPERATING INSTRUCTIONS

Cleaning & Changing the HEPA
Dust Cup Filter

1. To open the Dust Cup (container),

push button and detach the Dust Cup

(container ). (Fig. 13)

2. Pull out the HEPA Dust Cup Filter.

(Fig. 14)

Fig. 13

IMPORTANT

, Please Note : The

“TapClean” Rinseable HEPA Dust Cup

Filter & Debris Screen will stop most of

the tiniest dust particles re-entering the

air you breathe. In fact it stops 99.97% of

all particles as small as 0.3 microns -

many times smaller than a human hair!!!

Because of this incredible filtration

performance, the HEPA Dust Cup Filter

will quickly accumulate, inside the white

filter folds, many fine dust particles that

are difficult to see but which will

eventually block or reduce your suction

power - if not cleaned properly. Clean the

HEPA Filter and Debris Screen after

each use as described in this section.

Fig. 14

Fig. 15

Frame Flange

HEPA

Filter

3. Empty the dust from the dust cup

(container).

4. Separate the debris screen from the

HEPA filter cartridge by grasping the

debris screen with one hand and the

filter frame with the other and pull

apart. (Fig. 15)

4. Depress on/off power switch located

on duster handle. Releasing power

switch will stop motor.

5. For constant turning motion of duster

push the on/off switch on the duster

forward, switch will lock into the “On”

position.

6. To turn off constant motion, slide

switch back to “Off” position.

Note: Do Not exert pressure on duster,

this causes the motor to stop. A light

dusting motion is all that is needed.

Please Note: Occasionally the duster will

require cleaning. To do this:

1. Remove duster from housing.

(Fig. 11)

2. Insert crevice tool into the unit.

Vacuum duster and intake tube to

remove excess dust.

Fig. 11

Pull out

Using The Retractor™ Cord Feature

1. Locate the cord Retractor™ button on

the unit. (Fig. 12)

Fig. 12

Cord

Retractor™

Button

2. When cord is extended, push cord

Retractor™ button down.

3. Release button to stop cord action.

WARNING: Do not allow cord to whip

as it retracts, this could cause injury.

Warning:

Always unplug the unit

from electrical outlet before opening

the dust cup (container).

To Operate Duster

The duster is designed to suction up

dust as it is rotating, making dusting a

cleaner chore.

1. To attach the duster to the hose,

slide the duster intake tube onto the

hose. Attach the other end of the

hose into the suction hole of the

hand vacuum. (Fig 9)

Fig. 9

2. If you need a longer reach, the

duster can also be attached to the

extensions tubes, 1, 2 or 3, or

directly onto the unit depending on

the length that you need.

3. When using the duster, make sure

duster head is pointing downwards

and the vent holes are aligned with

duster before using on furniture or

other flat surfaces, as in Fig 10.

Vent

Holes

Fig. 10

1. To attach the extension tubes

together, slide the narrow end of one

of the extension tubes into the wide

end of another extension tube. Do the

same with the other extension tube to

form a long extension tube.

2. Slide the narrow end of the long

extension tube inside the floor

attachment.

3. Slide the wide end of the assembled

extension tube into the hose which is

attached to the vacuum.

4. Attach the shoulder strap to the

vacuum unit and hang it from your

shoulder.

5. You can now proceed to vacuum your

carpet or hard floor.

Please Note: To vacuum wooden floors,

press Floor-to-Carpet Lever down, to

lower the bristles down. (Fig. 6)

To vacuum carpets, press Floor-to-

Carpet Lever up, to raise the bristles up.

Very flat carpets can sometimes be

vacuumed with the bristles down.

Note: Adjustable height can be obtained

by using 1,2 or all extension tubes.

Fig. 6

Floor-to-Carpet

Lever

Using Floor Attachment

Fig. 7

IMPORTANT:

Do NOT use the HEPA

dust cup filter without the debris screen in

place.

Fig. 8

WARNING

After each Use - Always

remove the Filter Debris Screen from the

HEPA Dust Cup Filter, then vigorously

“TapClean” HEPA Filter until no more

dust can be removed.

Using The Unit with Duster

The duster is powered by 2 AAA

batteries (packaged separately).

Before using your duster for the first time,

insert batteries as per illustration on

battery door. (Fig. 7) When replacing

batteries, ALWAYS use AAA batteries.

Battery life is dependant on usage.

To Insert or Change Batteries

1. To open the battery door pull

button upwards and lift door.

(Fig. 7)

2. Insert batteries making sure the ‘+’

and ‘-’ ends are in the correct

position. (Fig. 8)

3. To remove the batteries, open the

battery door and slide the batteries

out by tipping duster downward.

(Fig. 7)

Debris

Screen
