air-o-steam ®
Gas Combi Oven 202
Supply voltage:
267555 (AOS202GAP1)
120 V/1p/60Hz - 17A
Circuit breaker required
Electric
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
8-11-09

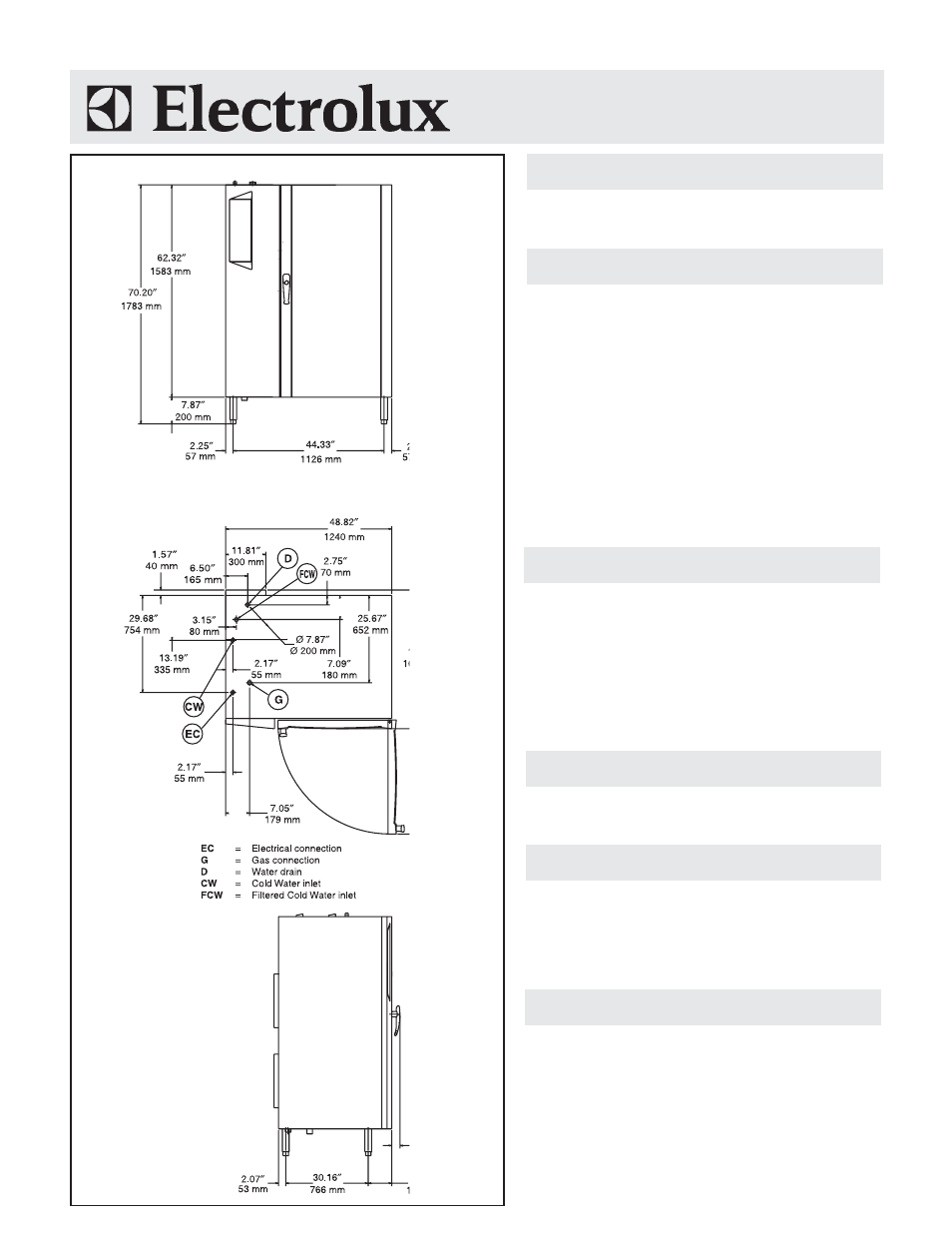

Front View
Top View
Side View
air-o-steam ®
Gas Combi Oven 202
Gas (Natural or LPG)
ISO 7/1 Gas connection diameter:
1 ″ MNPT
Gas regulator recommended. Supplied by others.
Max rated thermal load:
Natural Gas
Pressure: 7 ″ w.c. (17.4 mbar)
Boiler: BTU 205,000 (60 kW)
Heating elements: BTU 239,000 (70 kW)
Total: BTU 444,000 (130 kW)
LPG
Pressure: 11 ″ w.c. (27.4 mbar)
Boiler: BTU 188,000 (55 kW)
Heating elements: BTU 205,000 (60 kW)
Total: BTU 393,000 (115 kW)
Gas (Natural or LPG)
Net weight: 1058 lbs. (480 kg)
Shipping weight: 1080 lbs. (490 kg)
Shipping width: 51-3/16 ″ (1300 mm)
Shipping height: 81-1/8 ″ (2060 mm)
Shipping depth: 44-11/16 ″ (1135 mm)
Shipping Volume: 107.35 cu. ft. (3.04 m³)
Key Information
Water Consumption (gal./hr.): Min: 7.13 Max: 26.42
Water inlet “CW” – ¾ ″″″″″ connection:
Unfiltered drinking water
Water inlet “FCW” - ¾
″″″″″ connection:
Total hardness: 5-50 ppm
Pressure: 22-36 psi (150-250 kPa)
Drain “D”: 1-1/4 ″ connection
Electrolux recommends the use of treated water, based on
testing of specific water conditions.
Please refer to user manual for detailed water quality information.
Water
Clearance: 2 ″ (5 cm) rear and right hand sides.
Suggested clearance
for service access:
20 ″ (50 cm) left hand side.
Installation
Sheet pans: 20 – 18 ″ x 26″
Steam pans: 40 – 12 ″ x 20″
Half size sheet pans: 40 – 13 ″ x 18″
GN: 40 – 1/1 containers
20 – 2/1 containers
Max load capacity: 440 lbs. (200 kg)
Capacity
