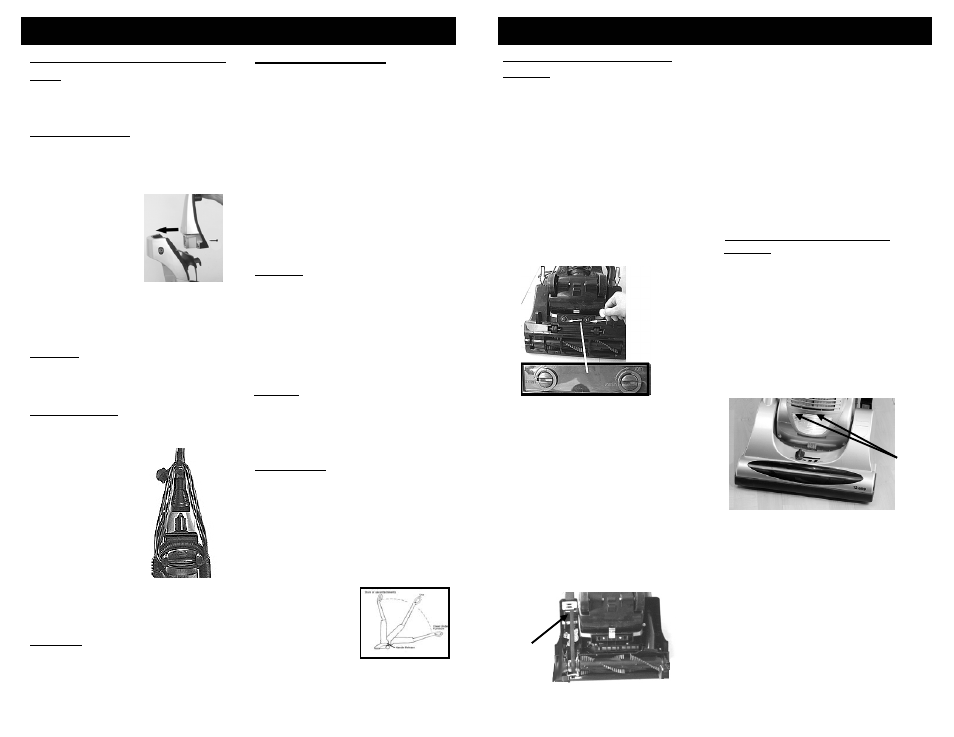

OPERATING INSTRUCTIONS

Cleaning & Changing the Belt

Assembling Your Vacuum Cleaner

Using the Attachments

Place vacuum in its upright position.

Make sure that the vacuum cleaner

is NOT plugged into the electrical

outlet when adding or removing

accessories.

Turn the carpet height selector

to the highest position and set the

Carpet to Floor selector to the

“Floor” position.

Remove the hose connector from

the rear of the unit and push in the

desired attachment firmly onto the

end of the hose.

If additional length is required,

attach the extension tubes to the end

of the hose and then attach the

crevice tool, round brush or

upholstery brush to the end of the

extension tube.

10. Insert the left side of the agitator in

first by placing the end cap down

into the slot and then do the same

with the right side. Press firmly to

make sure that each end is

completely inserted.

11. Check to make sure that the belt is

centered on the pulley and that the

agitator turns freely.

12. Replace the top cover over the

power head base and lock in place

by turning the two screw locks

clockwise until you hear them lock

in place.

Warning:

To reduce the risk of electric

shock, the power cord must be

disconnected before removing the dust

cup, HEPA filter,changing the filters or

performing maintenance/trouble shooting

checks.

Note:

Do not plug the power cord

into an electrical outlet until

the vacuum is fully

assembled.

Handle Assembly

1. Carefully unpack all components,

set aside packaging.

2. Lift vacuum body to upright position.

3. Remove the screw (1) that comes

attached to the

body.

4. From the rear of

the vacuum, align

the handle with

groove and slide

onto vacuum. If

necessary, use

thumb and finger

pressure to slide

handle into position.

5. Once handle is in place, secure the

handle with the screws (2). (Fig. 1)

Caution:

Do not over tighten. Over

tightening could strip the screw holes.

Do not operate the vacuum without

the handle screws in place.

Fig. 1

Occasionally the power nozzle drive

belt will require changing, the

frequency will depend upon the amount

of use your vacuum sees.

1. Turn the vacuum "Off" and unplug

from power supply.

2. Turn the vacuum upside down on a

flat level surface.

3. With a coin or a thick flat head

screwdriver, unlock the two (2)

screw locks by turning counter-

clockwise. (Fig. 22)

Changing the Headlight Bulb

Warning:

To reduce the risk of electric

shock, the power cord must be

disconnected before removing the dust

cup, HEPA filter,changing the filters or

performing maintenance/trouble shooting

checks.

How to Start

The upright vacuum can be used on

multiple types of carpeting, bare floors or

upholstery with attachments. When using

the attachment tools such as the crevice

tool, round brush or the upholstery brush,

place the handle of the vacuum in the

upright position.

1. Turn the quick release cord holder

to either side 180° to release the

power cord.

2. Plug the power cord into the electrical

outlet.

3. Push the On/Off

button to the "On"

position to turn

the vacuum on.

4. To release the

handle, step

on the power

head and pull the handle back.

5. When using the attachments, the

vacuum must be in the upright

position. (Fig. 3)

Warning:

Avoid tipping the vacuum or

setting it on furniture, fringed area rugs or

carpeted stairs while you are using the

hose with the attachments. When using

the unit to vacuum floors or with

attachments, set the Carpet to Floor

Selector to the “Floor” position. This will

stop the beater brush from rotating. When

vacuuming carpets, avoid leaving the

vacuum in one place for an extended

period of time, particularly on thick carpet.

Caution:

Do NOT pull the vacuum

cleaner around the room by the hose as it

could tip over and cause damage. When

using the attachments, do NOT over

extend the hose length when reaching.

Trying to reach beyond the hose reach

could cause the vacuum to tip over.

Fig. 3

Fig. 22

1. Turn unit “Off” and unplug from wall

outlet.

2. With a flat head screw driver, snap

off the lens cover by pressing down

on the two notches on the lens

cover. (Fig. 24)

3. Lift off the head light lens.

4. Remove the bottom cover of the

power head.

5. Lift the right side of the agitator

brush first and then lift the left hand

side and lift the agitator brush out of

the power head.

6. Carefully remove any belt residue

that may exist in the belt area.

7. If the belt has broken, remove any

loose pieces before replacing with a

new belt.

8. Remove the worn or broken belt

from the motor drive shaft.

9 Loop the new belt first over the

motor drive shaft and then over the

agitator pulley. (Fig. 23)

Cord Assembly

1. Make sure that the quick release

cord holder is in the upright

position.

2. Remove the wire

tie from the power

cord.

3. Wrap the cord into

place by wrapping

it in a clockwise

direction around

the quick release

cord holder and

the lower cord

holders. (Fig. 2)

4. Turn the quick

release cord holder

to the left or to the right to unwrap

the power cord. (Fig. 2)

Warning:

Always make sure that the

vacuum is turned off

before unplugging.

Fig. 2

Notches

4. Remove the light bulb by pulling it

out carefully.

5. Replace the new bulb by pushing

it in.

6. Replace the head light lens by pushing

it in so that it snaps back in place.

Fig. 24

Insert

First

Fig. 23
