GENERAL

LKDA2480 Dual Clear Crystalac handles. Deck-mounted

stainless steel escutcheon with 5-1/2" tubular swing spout
threaded for hose attachment, finished in gleaming chrome
plate. Removable cartridges. All operating parts are replace-
able from above deck. Requires 2 faucet holes on 4" centers.
Ship. Wt. 2 lbs.

LKD2490 Same as LKDA2480 except with chr

ome plated lever

handles. Ship. Wt. 2 lbs.

LKD2490BH Same as LKDA2480 except with 4"

blade handles.

Ship. Wt. 2-3/4 lbs.

Maximum Countertop Thickness: 1" (25mm).

COMPLIES

WITH:

ASME

A112.18.1M

CSA B125-01
NSF/ANSI 61
ADA (LKD2490BH Only)

MAXIMUM FLOW RA

2.5 GPM/9.5 L/min AT 80 P.S.I.G.
2.2 GPM/8.3 L/min AT 60 P.S.I.G.

Elka

2222 Camden Court

Oak Brook, IL 60523

Printed in U.S.A.
©2005 Elkay

(10/05)

5-139

www.elkayusa.com

(101.6mm)

5-1/2"

(139.7mm)

4-1/4"

(107.9mm)

1-7/8"

(47.6mm)

1" PIPE THD.

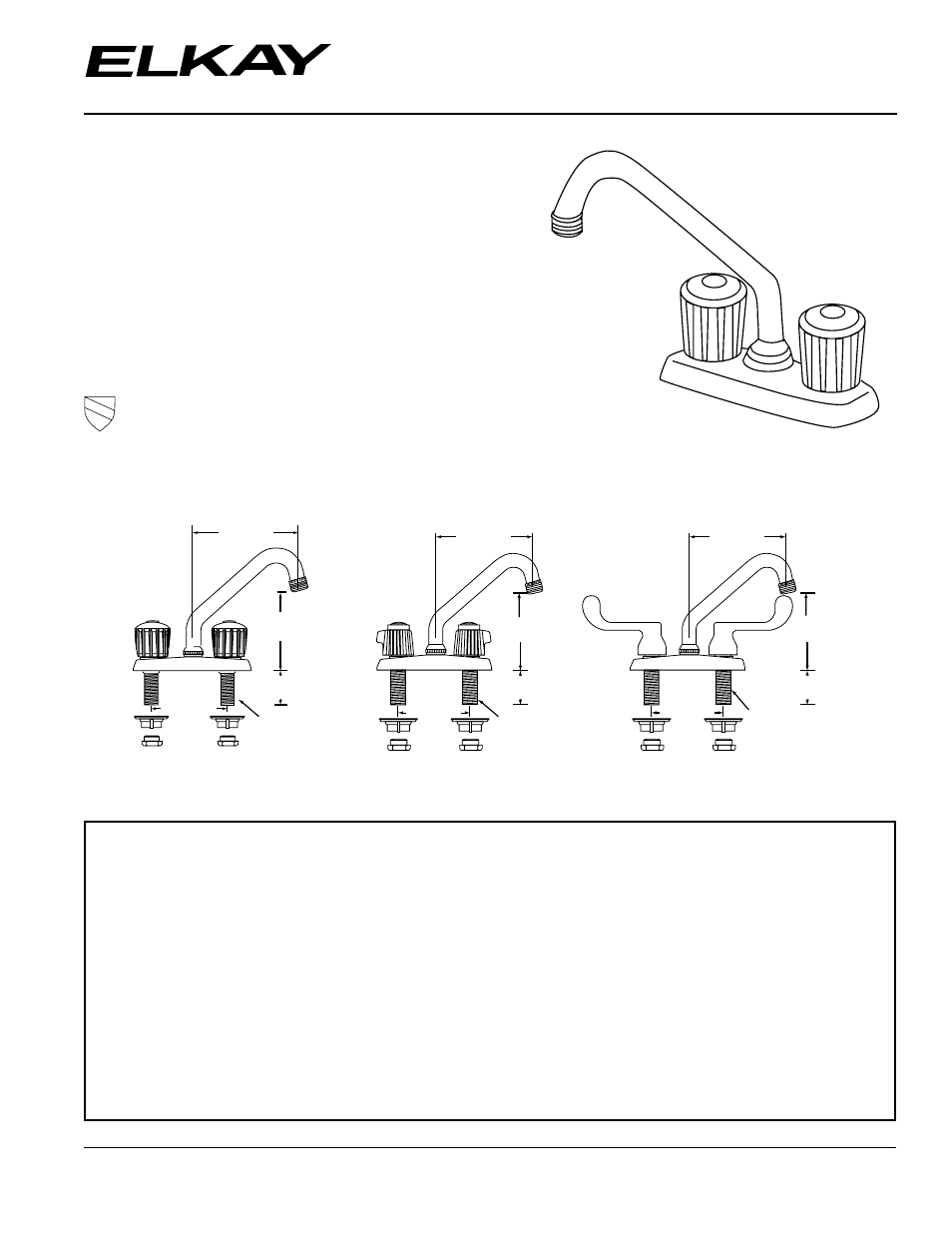

LKDA2480 Illustrated

LKD2490 Illustrated

LKD2490BH Illustrated

(101.6mm)

5-1/2"

(139.7mm)

(101.6mm)

1-7/8"

(47.6mm)

1/2"
PIPE
THD.

(101.6mm)

5-1/2"

(139.7mm)

(101.6mm)

1-7/8"

(47.6mm)

1/2"
PIPE
THD.

Model LKDA2480

Dual Handle Laundr

y Faucet

Models LKDA2480, LKD2490 and LKD2490BH

S P E C I F I C A

T I O N S
