Product Overview
Torque Requirements
Bolt Location Torque
Cutter Housing Spindle
Nut 140-145 ft-lb
(190-197 N-m)
Blade Mounting Bolt 115-120 ft-lb
(156-163 N-m)
Anti-Scalp Roller Nyloc
Nut 40-45 ft-lb (54-61 N-m)
Engine Mounting Bolts 25-30 ft-lb (34-41 N-m)
Wheel Lug Nuts 90-95 ft-lb (122-129 N-m)
Clutch Retaining Bolt
(secured with threadlocker) 55-60 ft-lb (75-81 N-m)
Product Overview

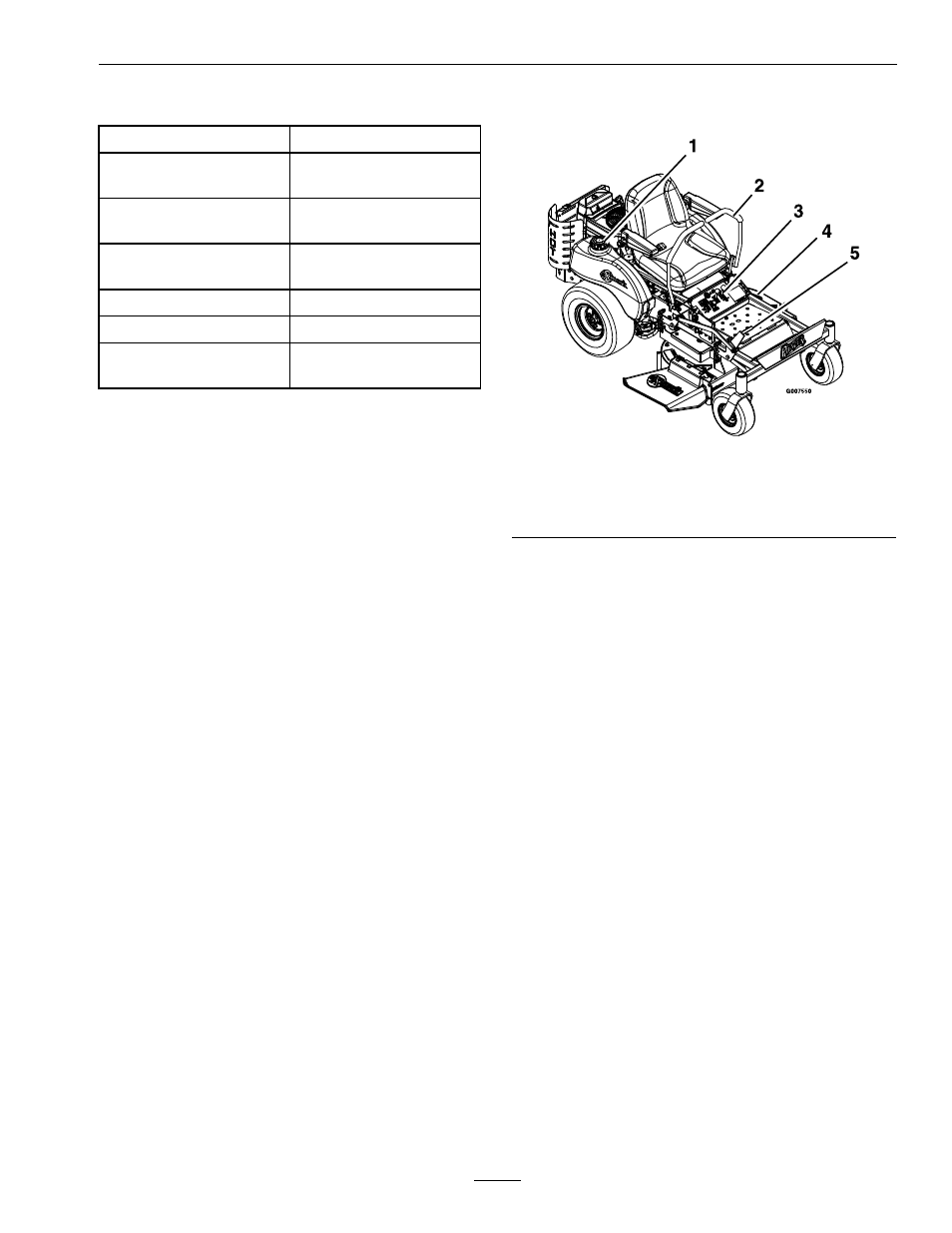

Figure 4
1. Fuel Cap 4. Parking Brake Lever
2. Motion Control Lever 5. Height-of-Cut Foot Lever
3. Controls
