36" Glass Canopy Wall-Mount Hood Specifications
•
Product Weight – 64 Lbs.
•
Wall-Mount Installation
•
Ventilation system is preset to exhaust air outside. If outside ducting is
not possible, optional Duct-Free Kit (PN # RHDFW60GS) is available
to convert ventilation to allow air to recirculate inside. (Refer to Ducted
Option Specifications for outside ventilation.)
•
Sones Rating – 9.9
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 0.474 kW (For use on
adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @ 120 Volts = 3.8 Amps
•
Always consult local and national electric codes. Check local building
codes for installation requirements, as they may vary per locale.
•
Minimum installation height allowed from bottom of hood to cooking
surface is 24" - 30" for electric and 30" for gas. (NOT more than 36"
recommended.)
•
To prepare mounting surface, adequate structure and support must be
provided, capable of supporting 100 lbs.
Ducted Option Specifications
•
For outside ventilation.
•
Exhaust Duct Required – 8" round
•
For most efficient airflow exhaust, use a straight run or as few elbows
as possible.
•
Use metallic flex ducting only to connect rigid duct directly to transitions
(if allowed by code).
•
Thermal breaks such as short section of nonmetallic duct, should be
used in areas of extreme cold.
•
Cold weather installations should have additional backdraft damper
installed.
•
Refer to installation instructions on web for detailed exhaust duct
preparation and converting vent blower system for recirculating inside.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•
Duct-Free Kit – (PN # RHDFW60GS).
Glass Canopy Wall-Mount Hood
RH36WC60GS
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
250 Bobby Jones Expressway
•
Augusta, GA 30907
•
1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
electroluxicon.ca
RH36WC60GS 10/09
© 2009 Electrolux Home Products, Inc.
Printed in the U.S.A.
Top
Controls
4
9
/
16
"
Wiring box
Air outlet - 7
7
/
8
" diam.

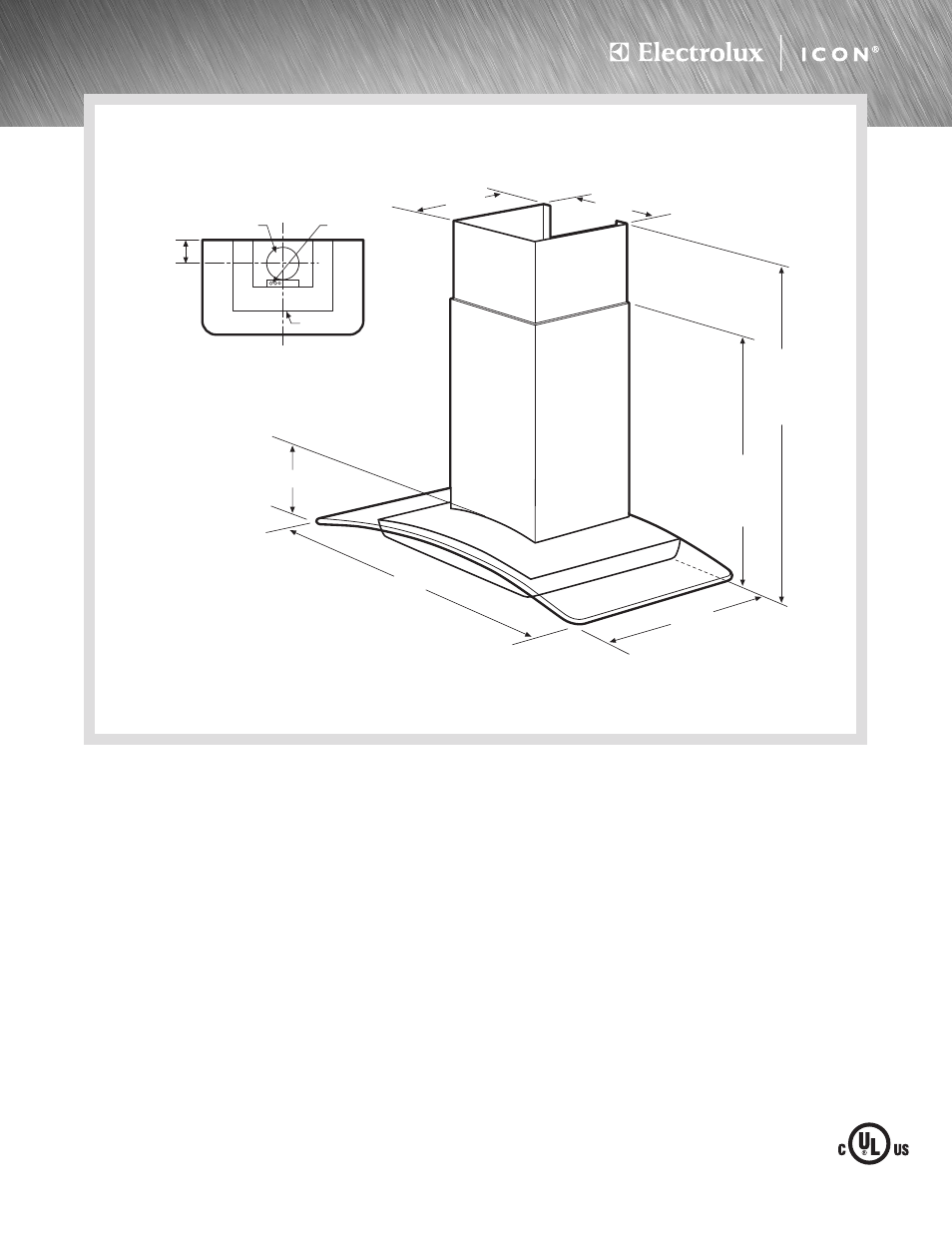

Dimensions
from base of
hood to ceiling,
and include
clearance
required for
installation.
35
7
/
8
"
19
11
/
16
"
2
9
/
16
"
30
1
/
8
"
min.
54
9
/
16
"
max.
10
13
/
16
"
13
3
/
16
"
29
7
/
16
"
( min.
height
with one
cover)
