12. INSTALLING THE LIGHT BULB &
GLASS SHADE
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box.

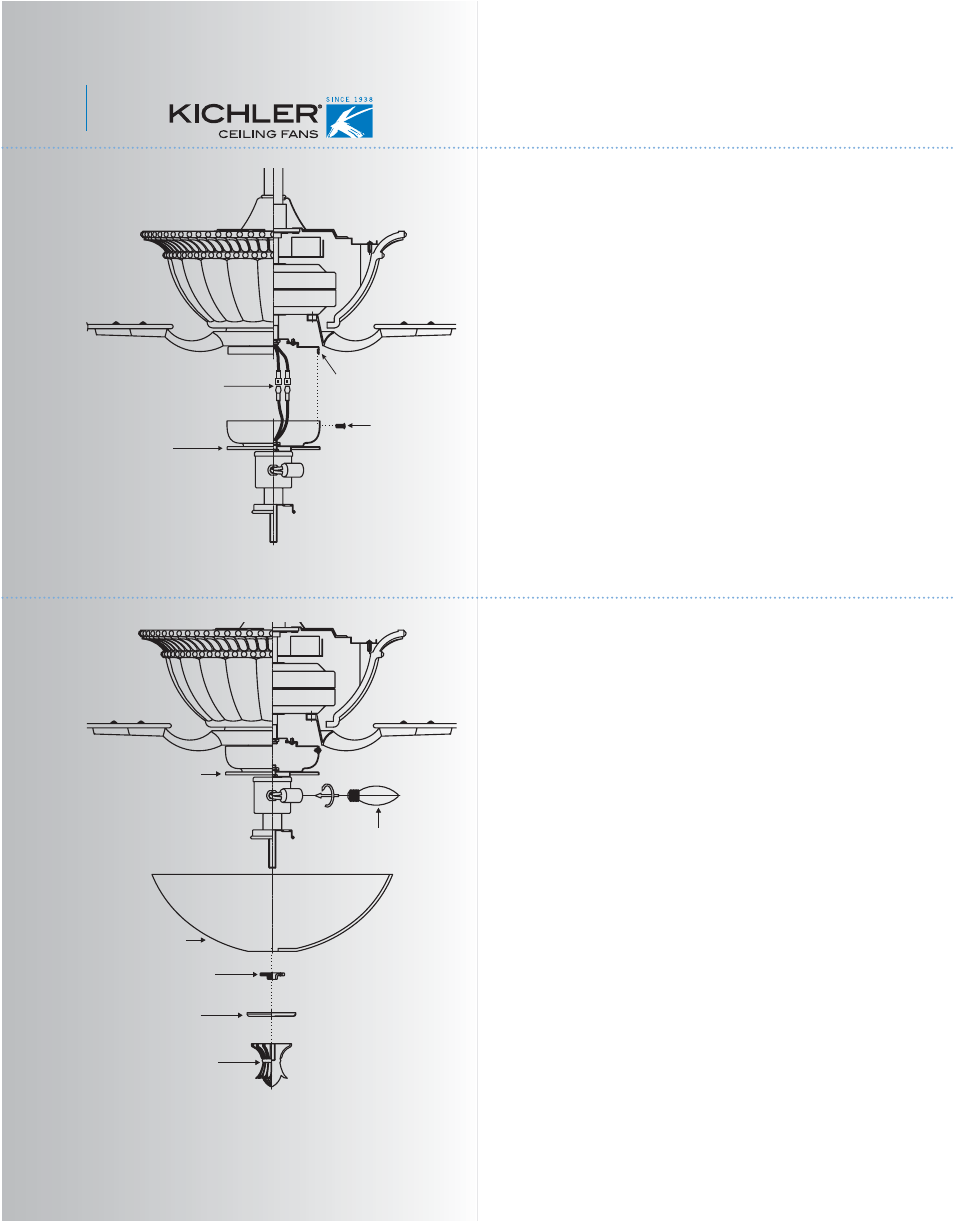

Step 1. Loosen the 3 screws from the
mounting plate.
Step 2. Raise and hold the light kit close to the
mounting plate. Connect the white wire
connectors from the light kit and fan. Follow
the same procedure with the black wire
connectors. (Fig. 18)
Step 3. Tuck connections neatly into mounting
plate, Place the light plate key holes over the 3
screws previously loosened from the mounting
plate, turn light plate until it locks in place at
the narrow section of the key holes. Secure by
tightening the 3 screws previously loosened.
(Fig. 18)
1. Install 3, 40W candelabra bulbs (not
included).
2. Remove the decorative nut, glass cap and
metal nut from the light kit. Place glass shade
over the light kit stem, secure with the metal
nut (rubber side on the top), glass cap and
decorative nut. Do not overtighten. (Fig. 19)
3. Restore power and your light kit is ready for
operation.
11. INSTALLING THE LIGHT PLATE
Mounting plate
Connection plugs
Light kit
Screws
Light kit
Bulbs
Glass shade
Glass cap
Decorative nut
Metal nut
