7

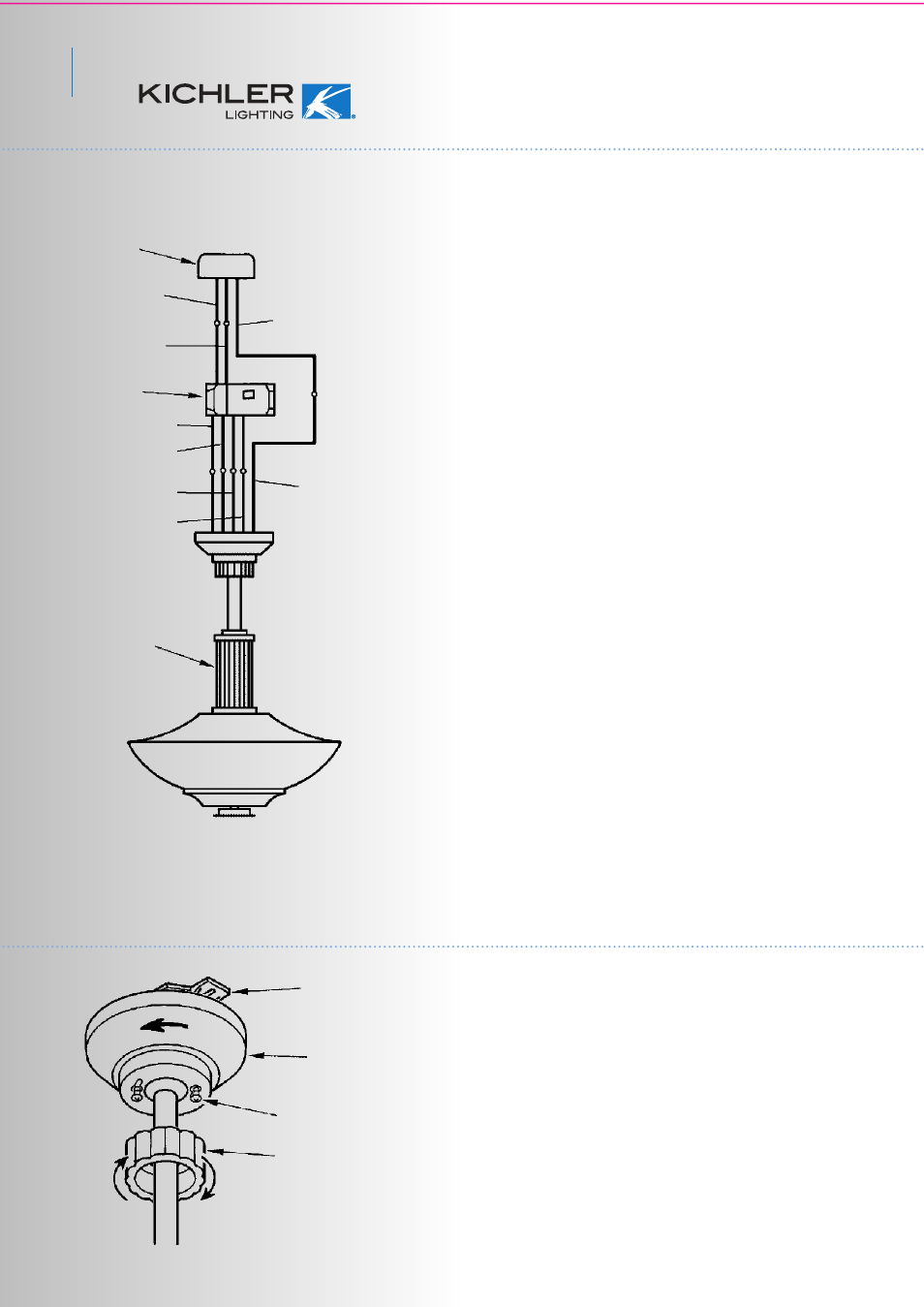

Fig. 15
Fig. 16
Orange (For Upper Light)
Decorative rod
Green (Ground)
Green (Ground)
Outlet Box
White (AC in N)
Receiver
Black (TO MOTOR L)
White (TO MOTOR N)
Blue (For Bottom Light)
Black (AC in L)
Mounting bracket
Canopy
Screw
Canopy Screw cover
Step 2. Motor to Receiver Electrical
Connections: (Fig. 14) Connect the black wire
from the fan to the black wire marked "TO
MOTOR L" on the receiver. Connect the white
wire from the fan to the white wire marked "TO
MOTOR N" on the receiver. Connect the blue
wire from the fan to the blue wire marked
"FOR LIGHT" on the receiver.
Secure each set of wire connections with the
plastic wire nuts provided in the parts bag.
Step 3. Receiver to Supply Wires Electrical
Connections: (Fig. 14) Connect the black
(load) wire from the ceiling outlet box to the
black wire marked "AC in L" on the receiver.
Connect the white (neutral) wire from the
ceiling outlet box to the white wire marked "AC
in N" on the receiver.
Secure each set of electrical connections with
with the plastic wire nuts provided in the parts
bag.
Step 4. Connect the ground wire (green or
bare copper) from the outlet box to the ground
wire on the ceiling mounting bracket and the
ground wire from the ceiling fan.
After making all connections, separate the
white and green wire connections to one side
and the black wire connections to the other
side of the outlet box.
Note: Fan must be installed at a maximum
distance of 30 feet from the CoolTouch™
Remote Transmitter for optimal signal
transmission between the transmitter and the
fan's receiving unit.
Step 1. Tuck all the connections neatly into
the ceiling outlet box.
MAKE SURE the Black Antenna wire on the
receiver remains free from all other wires.
Step 2. Slide the canopy up to ceiling and over
the two screws on hanger bracket. Rotate
canopy clockwise, next, while holding the
canopy with one hand, slide the canopy cover
over the screws and rotate clockwise until
tight. NOTE: Adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig.15)
8. FINISHING THE INSTALLATION
