3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
Philips screw driver
Slot screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
a. Ceiling Mounting Bracket (1)
b. Canopy (1)
c. Coupler Cover (1)
d. Upper Glass Bowl Assembly (1)
e. Bottom Cap (1)
f. Fan Blades (5)
g. Ball / Downrod Assembly (1)
& Extra Downrod (1)
h. Fan Assembly (1)
i. Bulb (6)
j. Decorative Ring (1)
k. Set of Blade Brackets (5)
l. Parts Bag Contents
1.) Mounting hardware:
a. wire nuts (4), b. flat washers (2),
c. wood screws (2), d. screws (2)
2.) Blade bracket hardware:
a. screws (2), b. paper washer (2)
3.) Blade attachment hardware:
a. washer screws (16),
b. paper washers (16)
4.) Safety cable hardware:
a. wood screw (1), b. flat washer (1),
c. washer (1)
m. Canopy Screw Cover (1)
n. Decorative Rod (1)
o. Mounting Ring (1)
p. Reveiver + 7 Wire Nuts
q. CoolTouch Control System
M
N
A
B
C
D
E
F
G
H
K
O
0
Q
I
,
2
Palla
TM
TM
3

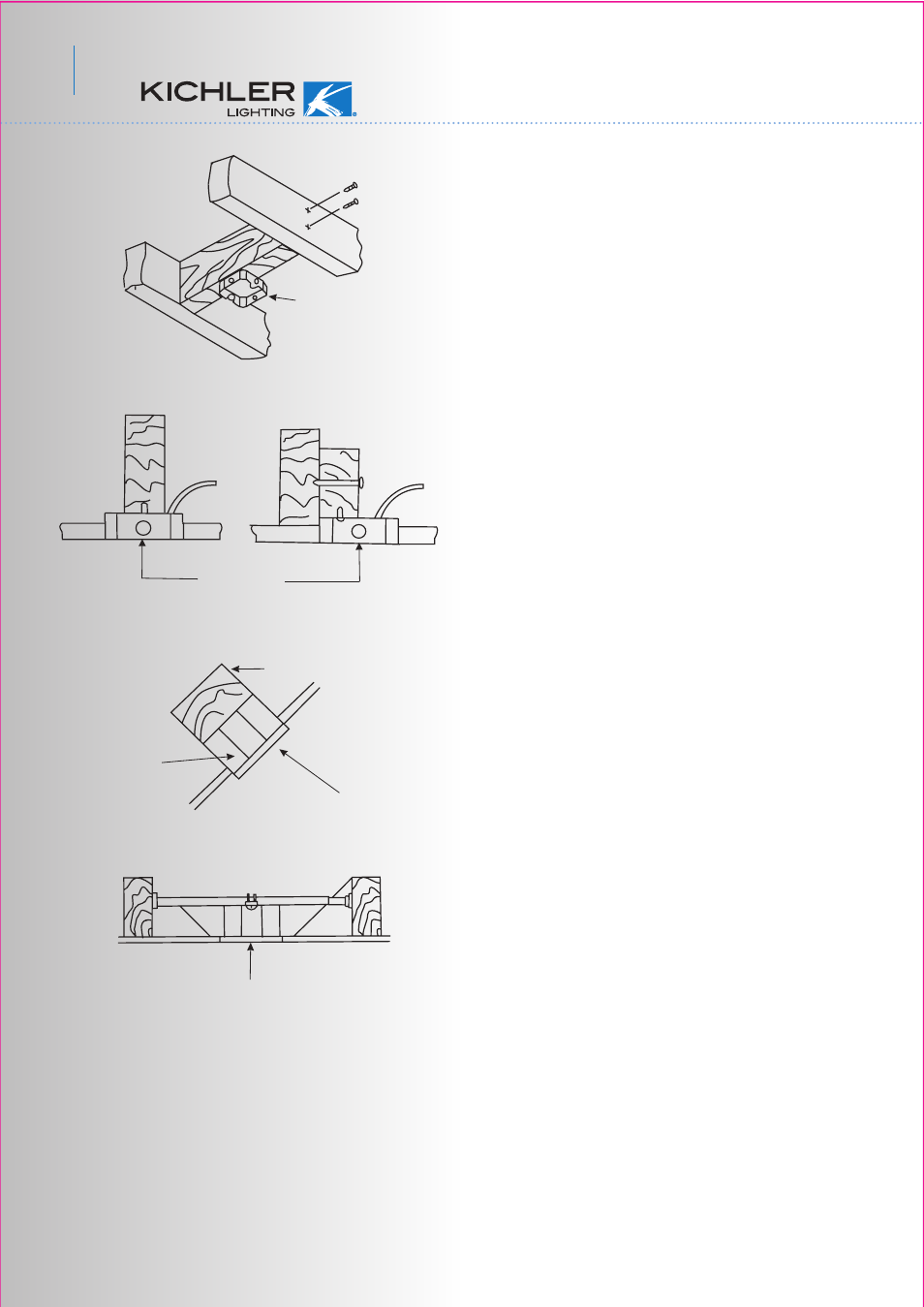

4. MOUNTING OPTIONS
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
NOTE:
NOTE:
If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a longer
downrod to maintain proper clearance between
the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal operation.
Outlet box
Provide strong
support
Recessed
outlet box
Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
If there isn't an exsiting UL (cUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power by
removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and build-
ing materials. The outlet box and its support
must be able to fully support the moving weight
of the fan (at least 50 lbs). Do not use plastic
outlet boxes.
Depending on the location you have selected
for installation, you may need to purchase and install
a "Joist Hanger" for the support of the outlet box.
Make sure the joist hanger you purchase has been
designed for use with ceiling fans. (Fig. 4)
