8
Bellamy
TM

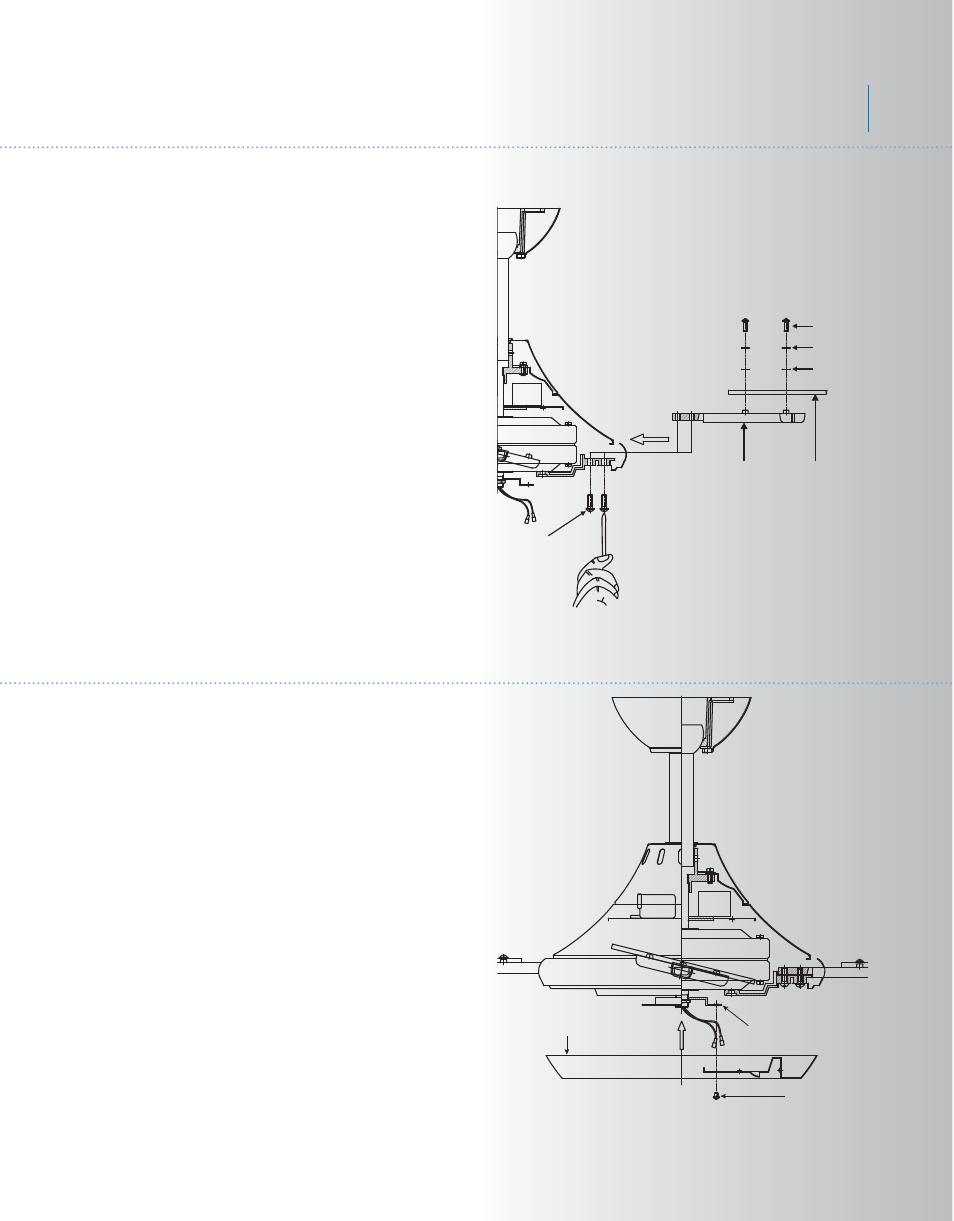

9. ATTACHING THE FAN BLADES
Fig. 16
Fig. 17
10. INSTALLING THE LIGHT FIXTURE
CAUTION: Remove the five rubber shipping
blocks attached to the face of the motor.
These blocks keep the motor from shifting
during shipping and
MUST be removed during
installation.
Step 1. Attach a blade to a blade bracket
using the screws, metal washers and fiber
washers provided. (Fig. 16)
Make sure the blade is straight when set on
the blade bracket. Tighten each mounting
screw and then repeat this procedure for each
blade.
Step 2. Attach each blade assembly to the
motor using two mounting screws in the blade
bracket. (Fig. 16)
NOTE: Make sure each mounting screw is
securely tightened.
1. Loosen the two screws on the mounting ring
attached to the motor shaft and "remove" and
save the third screw. (Fig. 17)
2. Place the key hole slots on the mounting
plate over the two screws previously loosened
on the mounting ring.
Turn the mounting plate until is locks in place
at the narrow section of the key hole slots.
Tighten both key hole screws and replace the
third screw previously removed and tighten
securely.
Screws
Blades Blade brackets
Screws
Washers
Fiber
washers
Mounting plate Mounting ring
Screws
