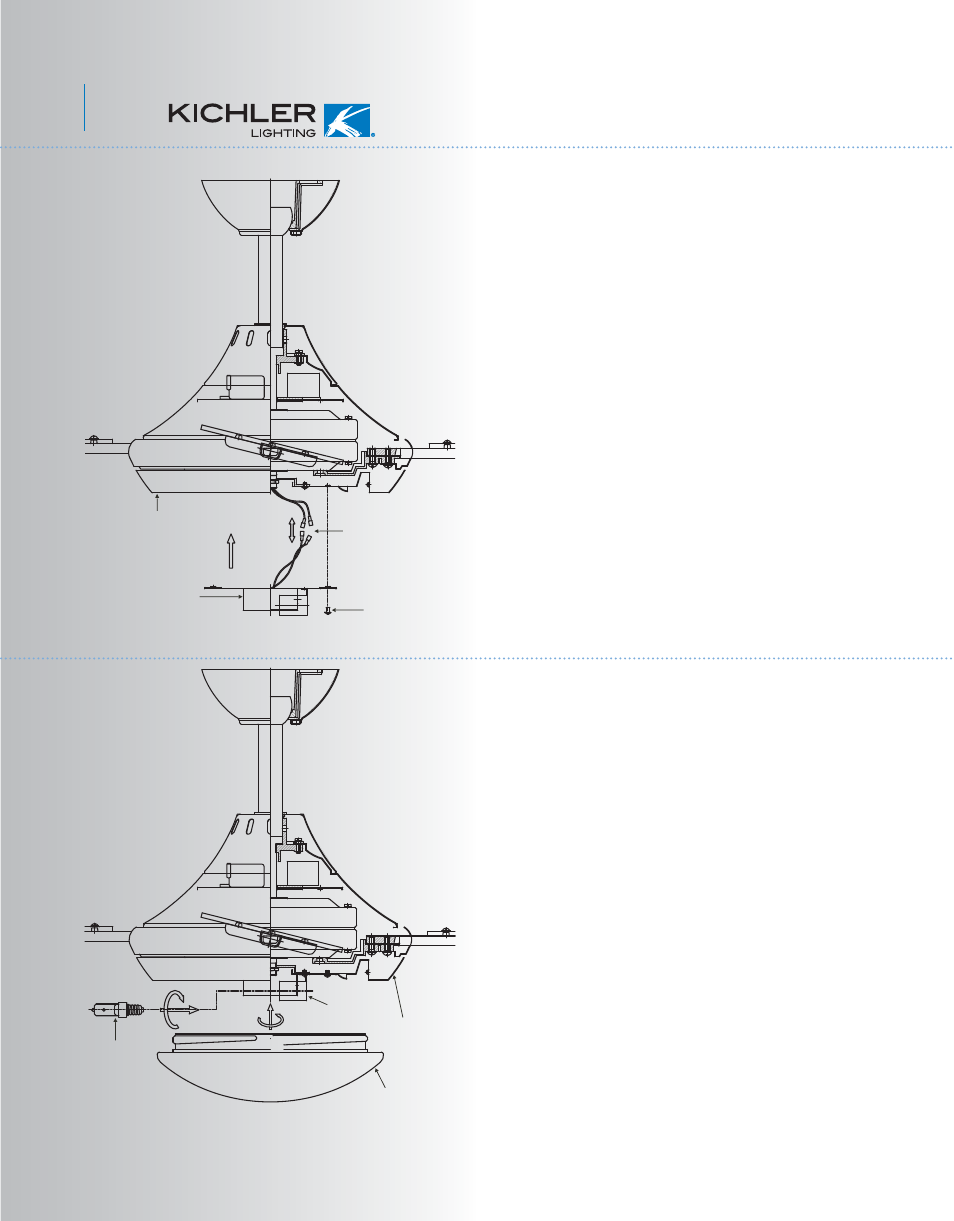

Fig. 18
Fig. 19
Step 1. Install 2, 50W T3 halogen bulbs
(provided). (Fig. 19)
Step 2. Raise the glass shade against the light
plate and turn clockwise until snug, do not
overtighten. (Fig. 19)
12. INSTALLING THE LIGHT BULBS
AND GLASS SHADE
Step 1. Loosen the three mounting screws on
the inside of the mounting plate.
Step 2. Hold the light plate close to the
mounting plate and connect the white wires
from the light plate and the fan. Follow the
same procedure with the black wire
connectors. (Fig. 18)
Step 3. Tuck the connections neatly into the
light fixture.
Step 4. Be careful not to pinch the light fixture
wires between the mounting plate and the light
plate.
Place the light plate key holes over the three
mounting screws inside the light fixture and
turn the light plate until it locks in place at the
narrow section of the key hole slots. Secure by
tightening all three screws.
11. INSTALLING THE LIGHT FIXTURE
Light plate
Wire connectors
Mounting plate
Mounting Screws
Glass shade
Light plate
Bulbs
Mounting plate
