5

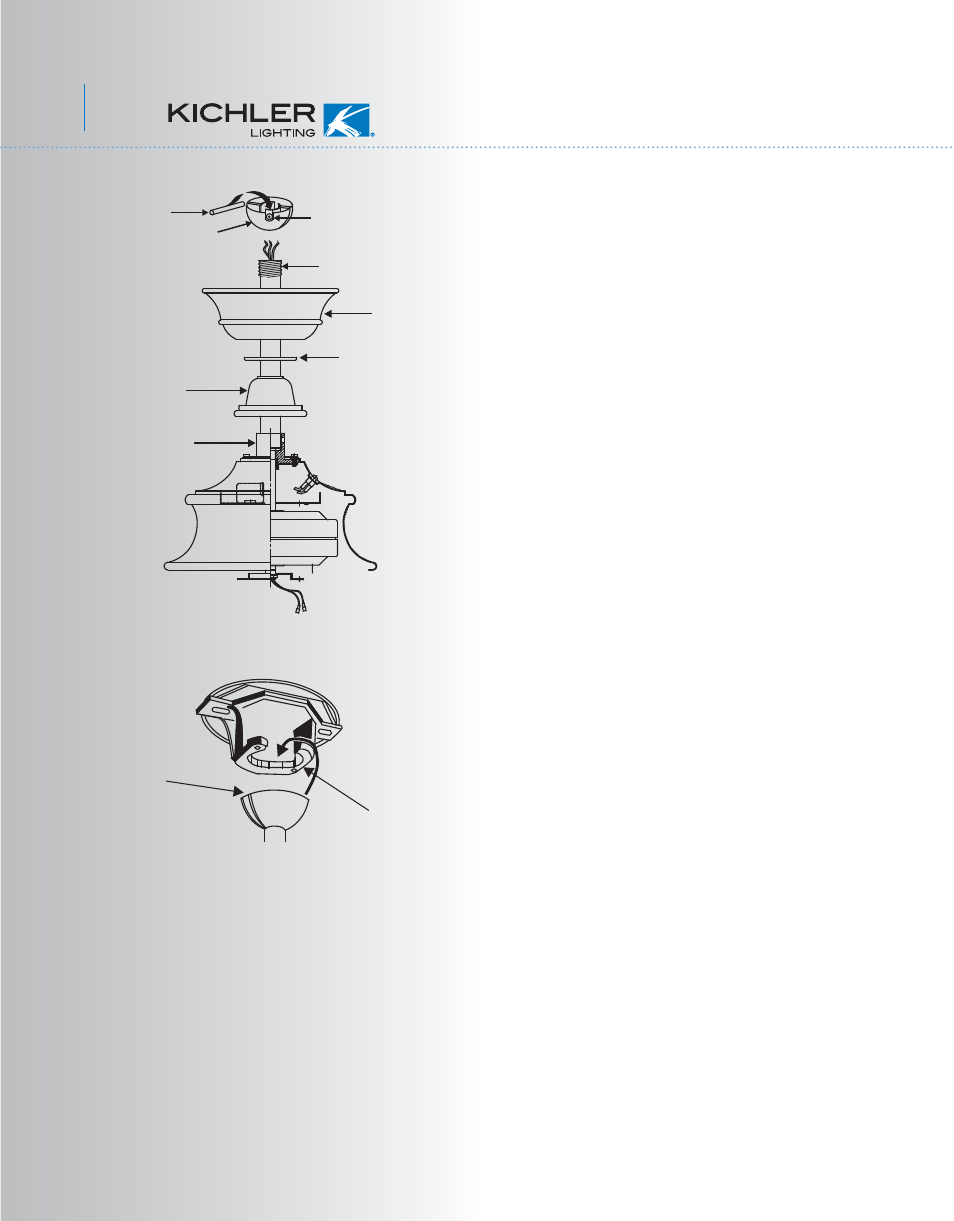

Fig. 9
Fig. 10
Registration slot
Check tab
Step 8. Slip the coupling cover, canopy cover
and canopy onto the downrod.
Thread the hanger ball onto the downrod,
insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position
and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the "Check
Tab" has dropped into the "Registration Slot"
and seats firmly. (Fig. 10)
The entire motor assembly should not rotate
(left or right) when seated properly.
WARNING: Failure to reattach the cross pin
and seat the "Check Tab" can cause the fan to
fall from the ceiling during operation. Take
special care to make sure this pin is
reattached.
Canopy
Canopy cover
Coupling cover
Coupling
Downrod
Cross pin
Hanger ball
Hanger ball
