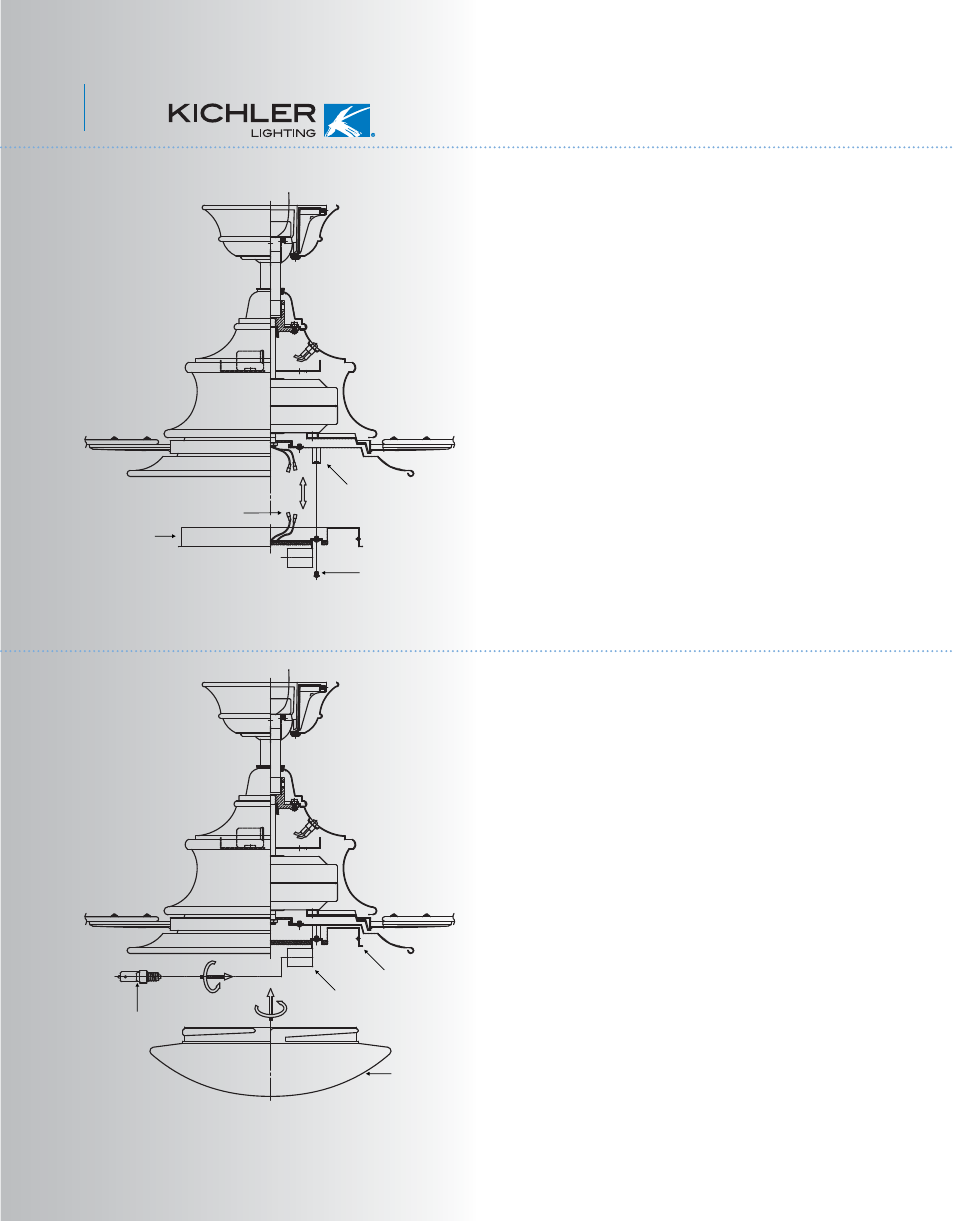

Fig. 18
Fig. 19
Step 1. Install the 3, 40 Watt/E12 T3 Krypton
lamps (provided). (Fig. 19)
Step 2. Raise the glass shade against the light
plate and turn clockwise until snug, DO NOT
OVERTIGHTEN. (Fig. 19)
12. INSTALLING THE LAMPS AND
GLASS SHADE
Screws
Lamp
Socket plate
Light plate
Light plate
Socket plate
Wire connectors
Glass
shade
11. INSTALLING THE SOCKET PLATE
NOTE: Before continuing installation, confirm
that the power is still turned off at the main
circuit breaker or by removing the correct fuse.
Turning the power off using a wall switch is not
sufficient to prevent electrical shock.
Step 1. Loosen the two mounting screws on
the inside of the light plate then remove and
save the third screw.
Hold the socket plate close to the light plate
and connect the white wires from the socket
plate and the fan by pushing the connectors
together. Follow the same procedure with the
black wire connectors. (Fig. 18)
Step 2. Tuck the connections neatly into the
light plate. Place the key holes on the socket
plate over the 2 screws previously loosened
from the light plate, turn the socket plate until
it locks in place at the narrow section of the
key holes. Secure by tightening all three
screws. (Fig. 18)
