7

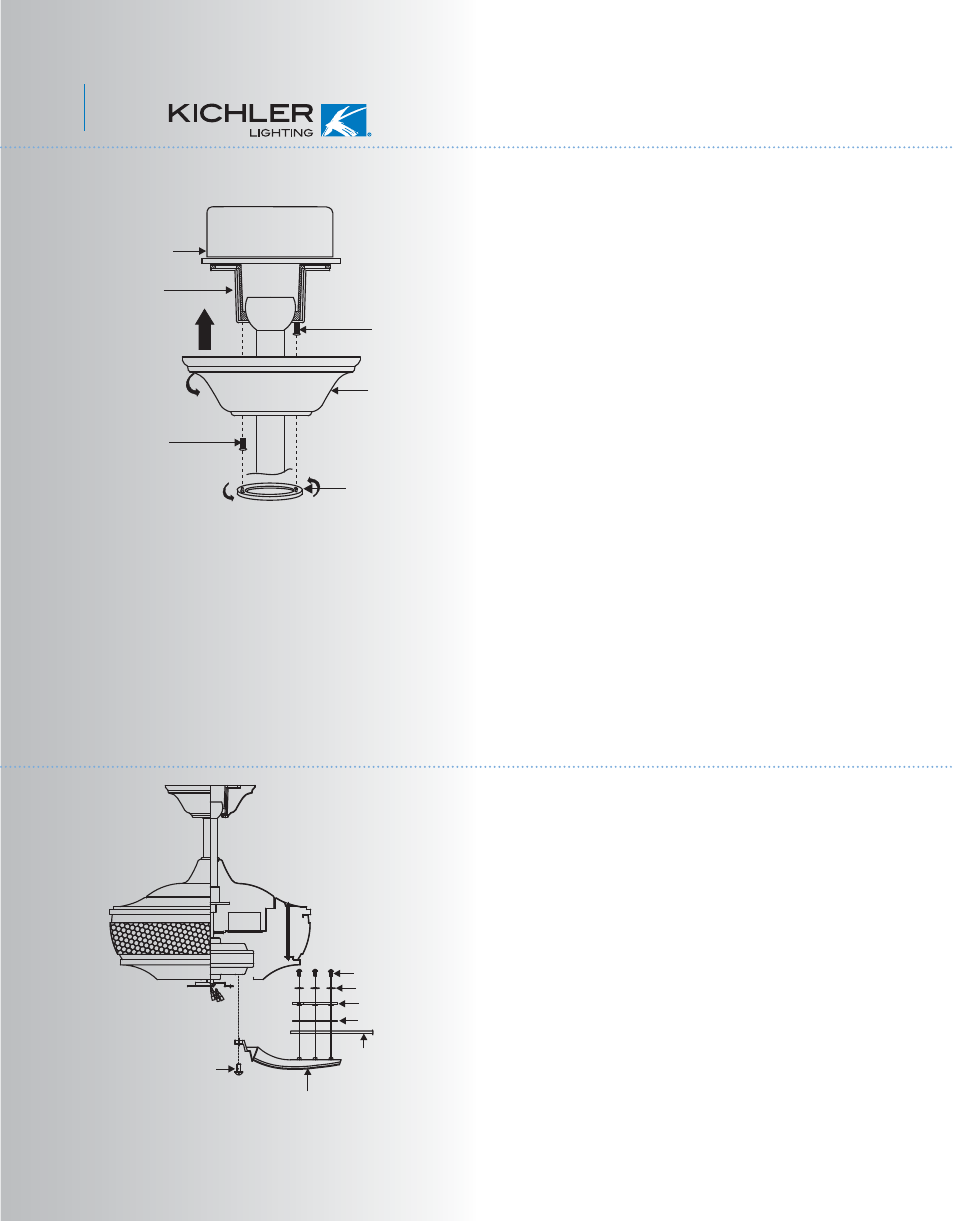

Step 1. Tuck all the connections neatly into
the ceiling outlet box.
Step 2. Slide the canopy up to the mounting
bracket and place one of the key hole slots
over the mounting screw on the mounting
bracket. Rotate the canopy until the screw
head locks in place at the narrow section of
the key hole. See figure 13.
Step 3. Align the remaining circular hole on
the canopy with the remaining hole on the
Ceiling Mounting Bracket. Insert and tighten
the mounting screw you removed earlier and
the mounting screw from Step 2 above. Now,
attach the canopy cover to the mounting screw
heads by inserting the screw heads into the
bottom side of the canopy cover and rotating
the cover clockwise.
NOTE: Adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig. 13)
Warning: Make sure the "Check Tab" at the
bottom of the hanger bracket is properly
seated in the "Registration Slot" on the side of
the hanger ball before attaching the canopy to
the bracket. Failure to properly seat the
"Check Tab" could damage the electrical wires
when to ceiling fan blade direction is changed
while the fan is running.
8. FINISHING THE INSTALLATION
9. ATTACHING THE FAN BLADES
Fig. 13
Fig. 14
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws
CAUTION: Remove the five rubber shipping
blocks attached to the face of the motor. These
blocks keep the motor from shifting during
shipping and MUST be removed during
installation.
Step 1. Attach the blade to the blade bracket
using the screws, spring washers, blade
support plate and fiber washers as shown in
Figure 14. Start screw into bracket. Repeat for
the two remaining screws.
Step 2. Make sure the blade is straight and
tighten each screw.
Step 3. Fasten blade assembly to motor using
"Pre-Installed" mounting screws in the blade
bracket.
Blade
Blades bracket
Screws
Spring washers
Support plate
Fiber washers
Screws
