8

1. Control

Panel

2. Display

PCB

3. Panel

4. Inner

Liner

5. Handle

6. Ice

Shovel

7. Ice

Case

8. Evaporator

9. Steel Water Supply Pipe

10. Steel Shell

11. Component Of Switch

12. Cover

13. Left Board

14. Filter

15. Solenoid Valve

16. Pressure Controller

17. Container

Of

Refrigerant

18. Back Board

19. Strengthen Plate

20. Cooling Fan

21. Condenser

22. Water Pump

23. Soft Water Supply Pipe

24. Adjustable Foot

25. Compressor

26. Underpan

27. Control Box

28. Soft Drain Pipe

29. Transformer

30. Right Board

31. Driving Motor

32. Ice Basket

33. Basket Bottomplate

27

31

32

29

30

28

1

2

3

4

5

6

7

8

20

26 25

24

22

23

21

18

19

17

14

16

15

12

9

10

11

13

33

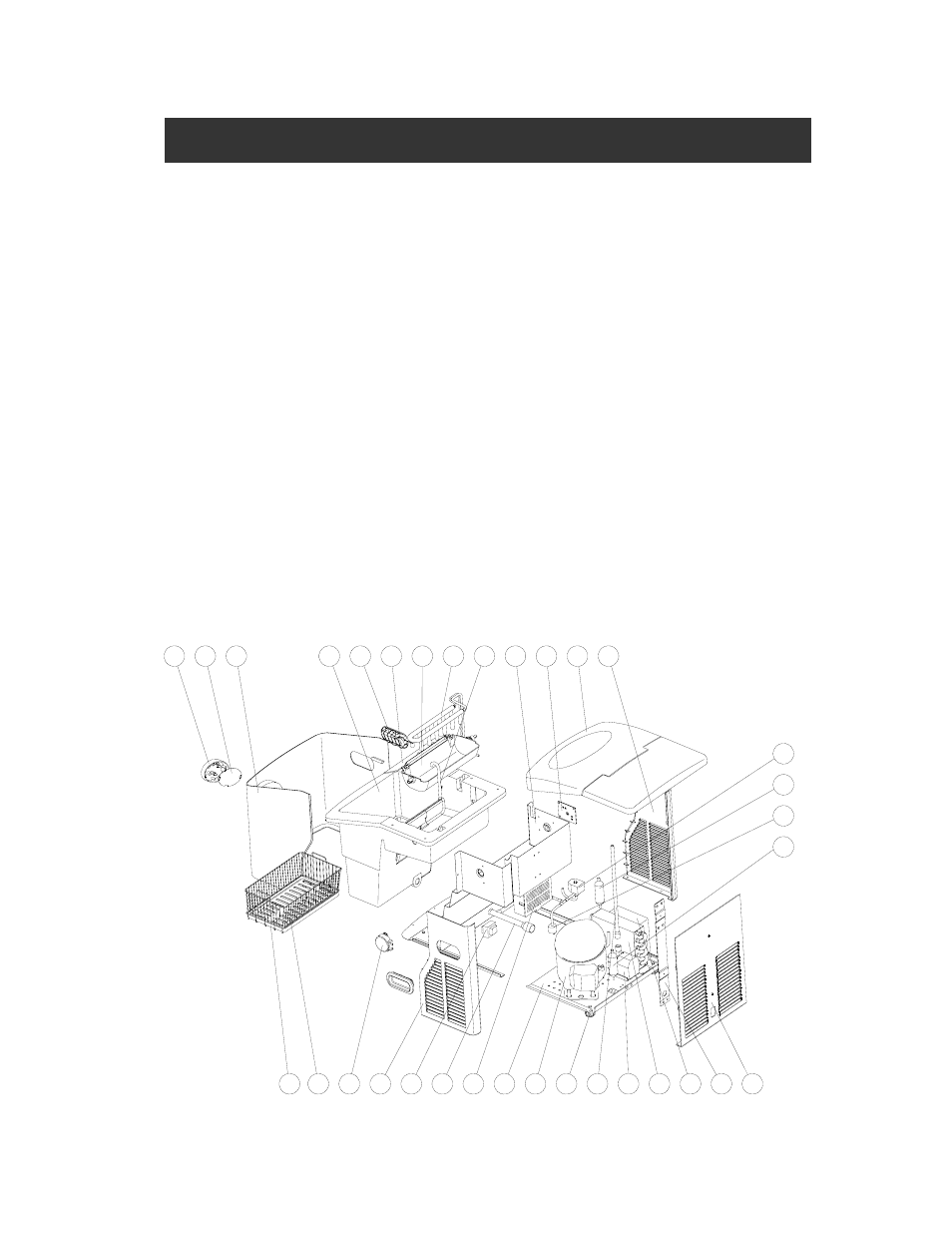

PARTS BREAKDOWN DIAGRAM
