9 P
ower
B
lower
o
Perator
'
s
M
anual
c

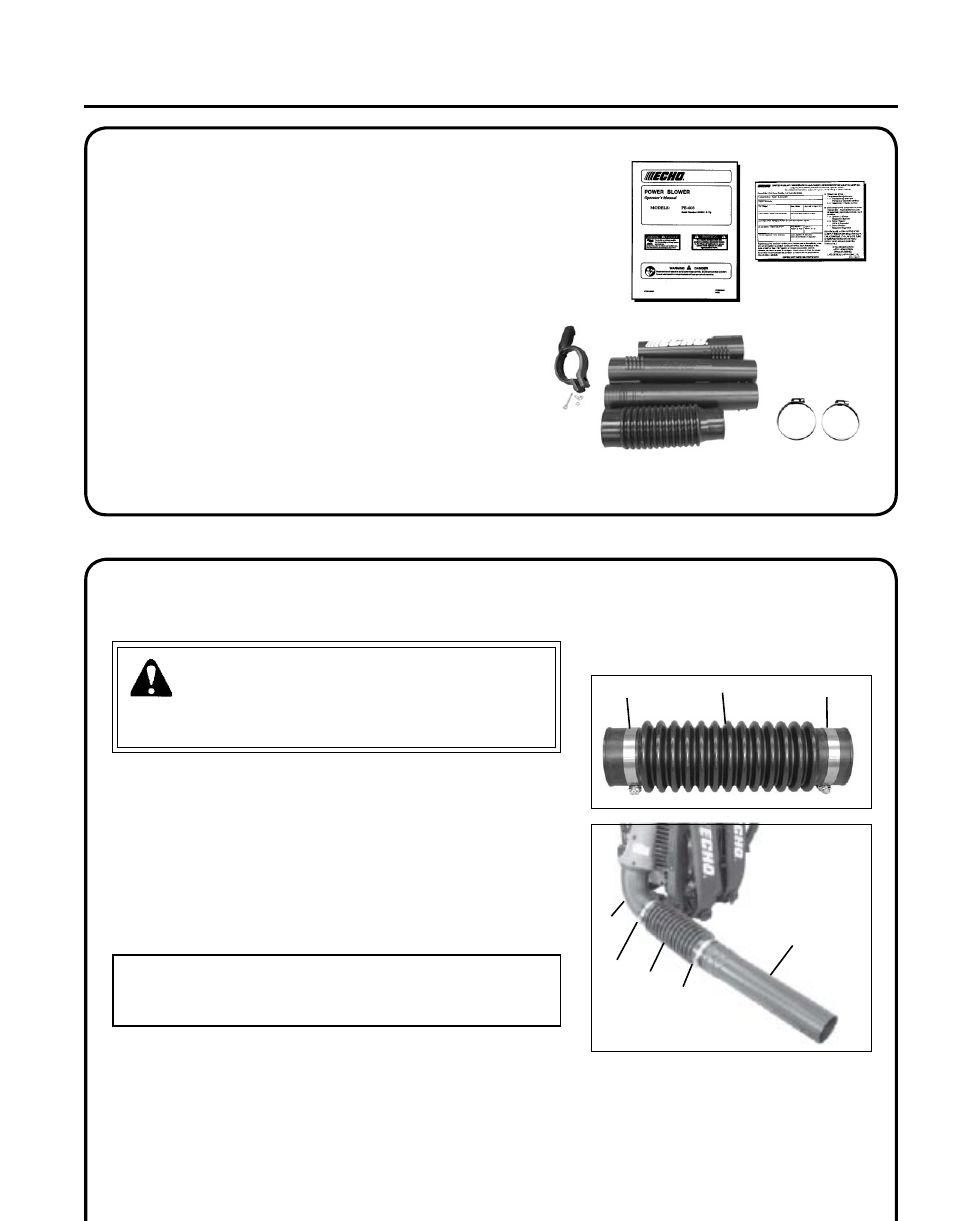

ontents
____ 1 - Power Head
____ 1 - Flex Pipe
____ 1 - Pipe w/swivel
____ 1 - Straight Pipe
____ 1 - Straight Pipe w/decal
____ 1 - Operator's Manual
____ 1 - Warranty Registration Card
____ 1 - Plastic Bag
____ 1 - Stick Handle
____ 2 - Clamps w/screws
a
ssembly
WARNING
Never perform maintenance or assembly procedures with engine
running or serious personal injury may result.
Install blower pIpes
/
stIck handle
1. Assemble clamps (A) onto both ends of flexible pipe (B).
2. Assemble straight pipe with swivel (C) into flexible pipe (B).
3. Assemble flexible pipe (B) to elbow (D) on blower.
NOTE
A light lubricant may be used to ease assembly of flexible pipe to
blower elbow.
4. Tighten clamps (A).
C
A
B
A
D
A A
B
