CONNECTING TO A DOLBY DIGITAL DECODER,
DTS DECODER, OR MPEG DECODER (for DVD)
NOTES:
• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the Owner's Manuals for the components to be connected to the TV/DVD/VHS.
• If output Dolby Digital audio, connect to a Dolby Digital decoder, and set Dolby Digital to on for audio
output in the setup mode.
• If output DTS audio, connect to a DTS decoder, and set DTS to ON for audio output in the setup mode.
• If played a disc indicated MPEG audio, connect to a MPEG decoder, and set MPEG to ON for audio output
in the setup mode.
• Unless connected to a Dolby Digital decoder, a DTS decoder, or a MPEG decoder, set Dolby Digital, DTS,
or MPEG to off for audio output in the setup mode. Playing a TV/DVD/VHS using incorrect settings may
generate noise distortion, and may also damage the speakers.
• When DOLBY DIGITAL is set to OFF and VIRTUAL 3D to ON for audio output in the setup mode and
you select the audio source in a 5.1 channel Dolby Digital surround format, the audio will be muted.
ANT.
L
AUDIO OUT
R
COAXIAL
1 Front speaker
(left)
Center
speaker
Front speaker
(right)
Surround
speaker
(left)
Surround
speaker
(right)
Subwoofer
To DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COAXIAL jack
To COAXIAL DIGITAL
AUDIO INPUT jack
Dolby Digital
or DTS decoder

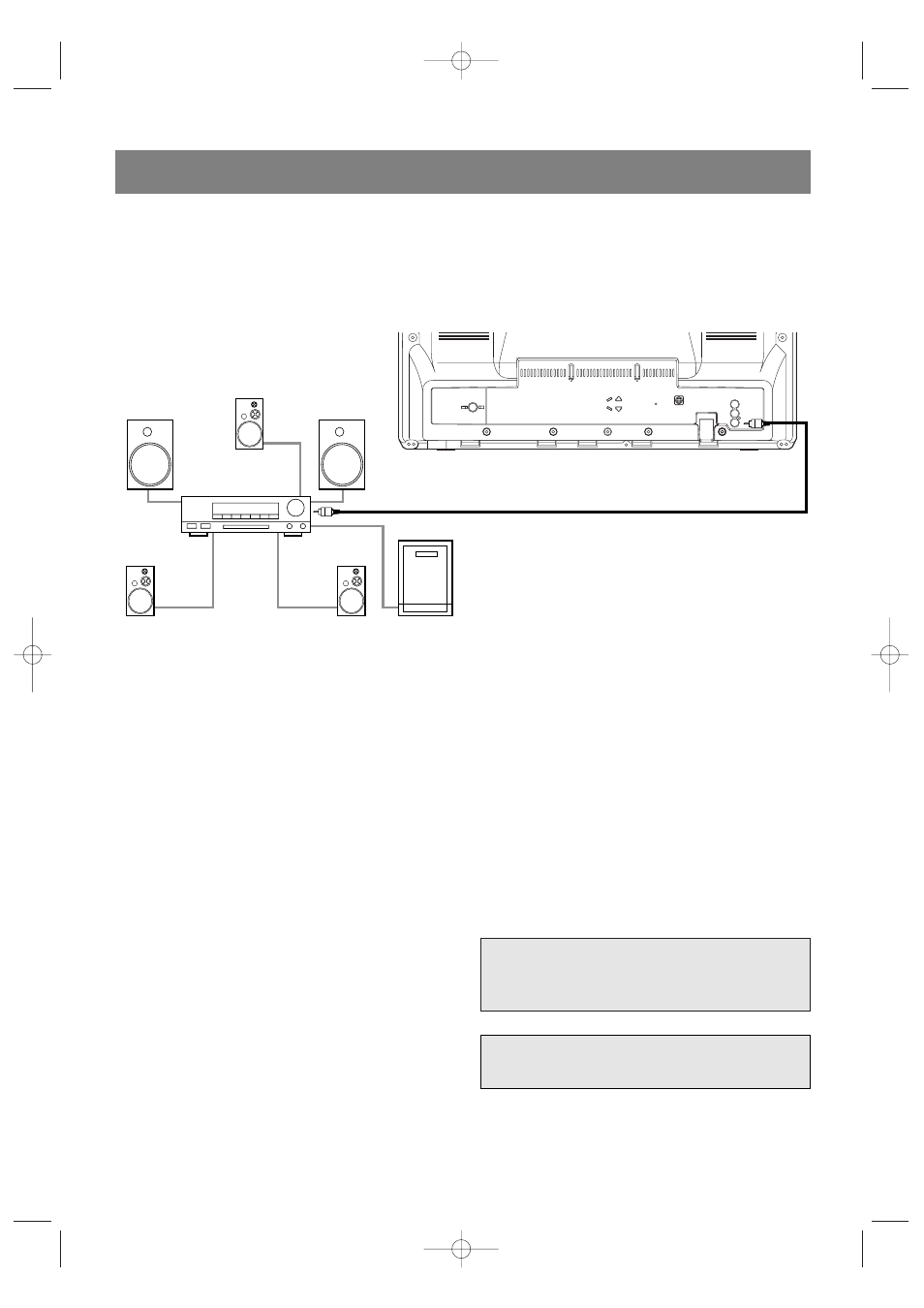

[Fig. 8]
If using this TV/DVD/VHS to play back a TV/DVD/VHS in a 5.1 channel Dolby Digital surround, DTS sur-
round, or MPEG surround format, the TV/DVD/VHS outputs a Dolby Digital, DTS, or MPEG data stream from
its COAXIAL DIGITAL AUDIO OUT jack. By hooking the player up to a Dolby Digital or DTS decoder, you
can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound of a profes-
sional standard such as can be heard in movie theaters.
Use audio coaxial digital cables (commercially available) for the audio connections.
