ELECTRO-VOICE ® Plasma Owner’s Manual 8

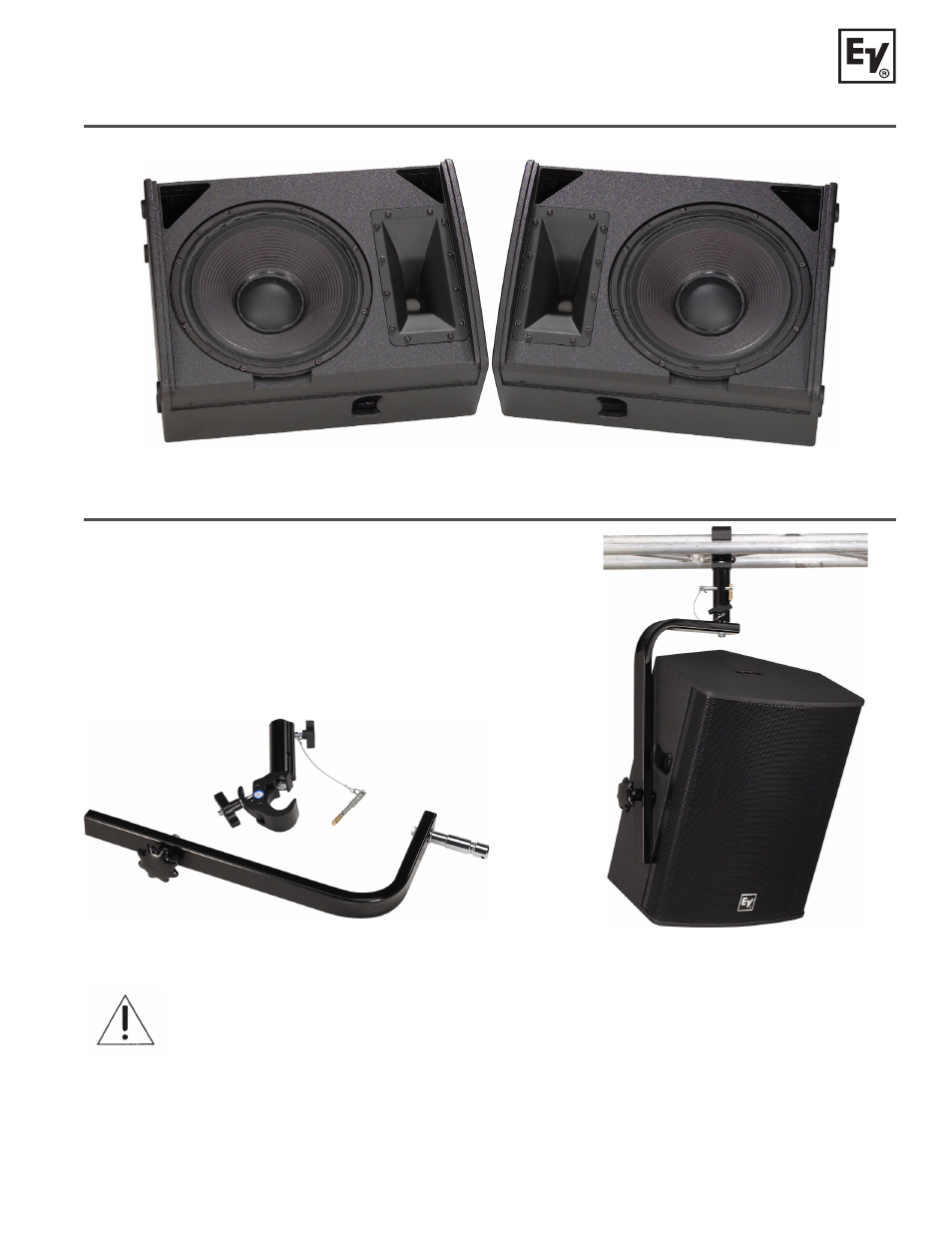

Using Plasma P1’s as Floor Monitors
· The Plasma P1 is perfect for use as a powered floor monitor.
Plasma P1 Rigging
· The Plasma P1 has an L-track embedded into the
top and side of the enclosure to provide convenient
multi axis suspension and attachment points for an
optional suspension arm or L-track stud fitting.
The very compact multi-angle enclosure can be
suspended or arrayed. The L-Track also accepts
double-stud locking swivel fittings.
Figure 3:
Rigging Hardware for the Plasma P1
Figure 4:
Suspending the Plasma P1
WARNING: Suspending any object is potentially dangerous and should only be
attempted by individuals who have a thorough knowledge of the techniques and
regulations of rigging objects overhead. Electro-Voice
® strongly recommends that
Plasma speakers be suspended taking into account all current national, federal, state and local
regulations. It is the responsibility of the installer to ensure that Plasma speakers are safely
installed in accordance with all such regulations. If Plasma speakers are suspended, Electro-
Voice
® strongly recommends that the system be inspected at least once a year. If any sign of
weakness or damage is detected, remedial action should be taken immediately.
Figure 2:
Using the Plasma P1 as a mirror image Floor Monitor
