COMBINATIONS OF CUTTING
HEADS, SHIELDS, HANDLES, ETC…
PLASTIC DEBRIS SHIELD
FOR CURVED SHAFT UNITS
CUT-OFF KNIFE
ON RIGHT SIDE
PLASTIC DEBRIS SHIELD
WHEN PROVIDED FOR
STRAIGHT SHAFT UNITS
CUT-OFF KNIFE
ON LEFT SIDE
DEBRIS SHIELDS FOR NYLON LINE HEADS

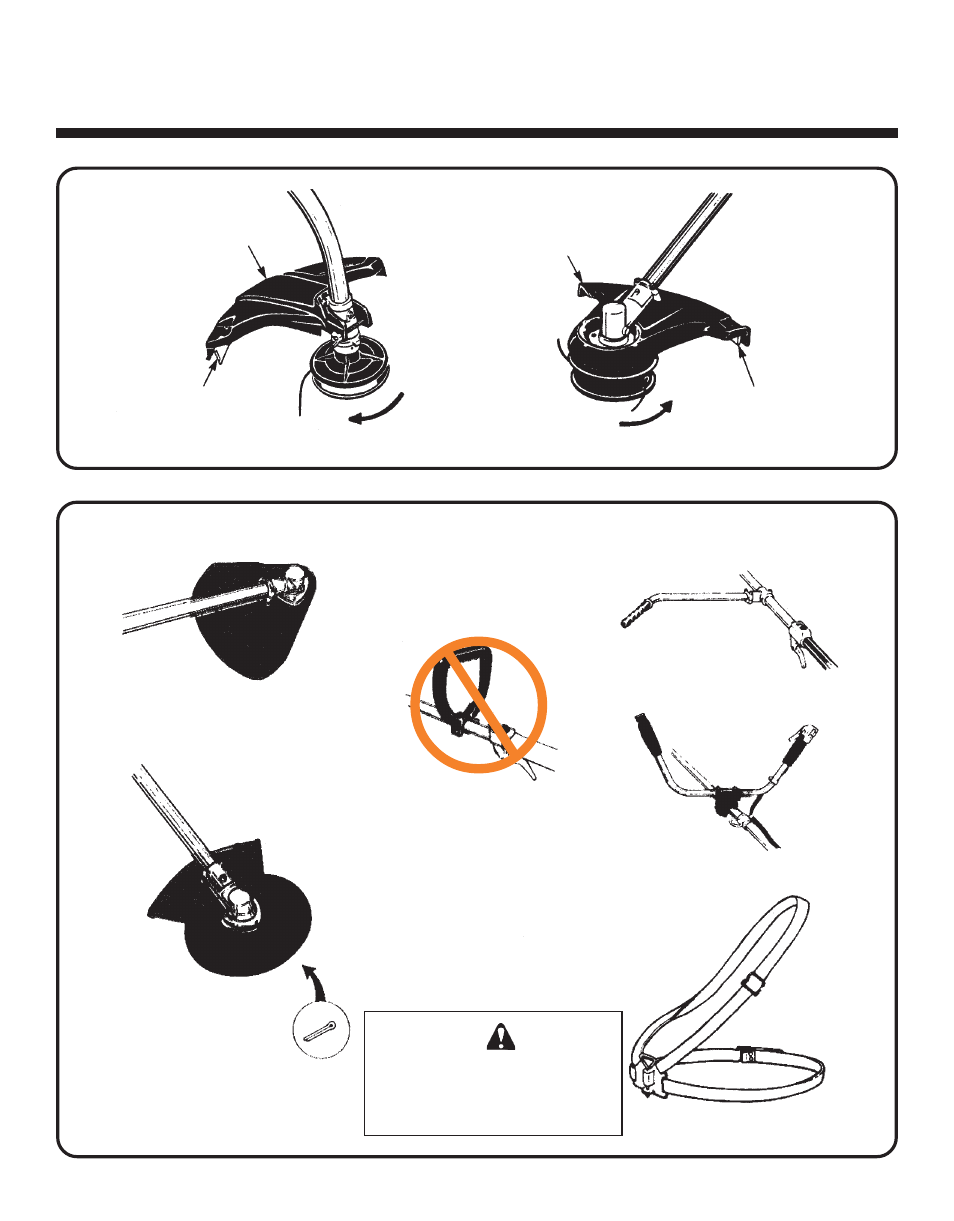

BASIC COMPONENTS AVAILABLE FOR METAL BLADE USE
REVIEW THE OPERATOR’S MANUAL FOR PROPER PROCEDURE WHEN CONVERTING FROM NYLON LINE HEAD TO
BLADE APPLICATION
1. IF UNIT HAS A PLASTIC DEBRIS SHIELD,
REPLACE WITH METAL BLADE SHIELD. SEE
OPERATOR’S MANUAL.
2. IF UNIT HAS A D-HANDLE, REPLACE
WITH A BAR OR U-HANDLE
BAR HANDLE
U-HANDLE
3. SELECT AND INSTALL THE BLADE
OF YOUR CHOICE.*
4. INSTALL THE SHOULDER/
WAIST HARNESS.
BLADE MUST BE RETAINED
WITH A NEW COTTER PIN
EACH TIME INSTALLED.
* CHECK DEALER FOR NEW CUTTING BLADES
OR HARNESSES WHICH MAY BE INTRO-
DUCED FROM TIME TO TIME
WARNING DANGER
DO NOT INSTALL
A METAL BLADE
ON A GT UNIT.
