7
FINIAL NUT
FIBER WASHER
COVER PLATE
SWITCH
HOUSING
COVER

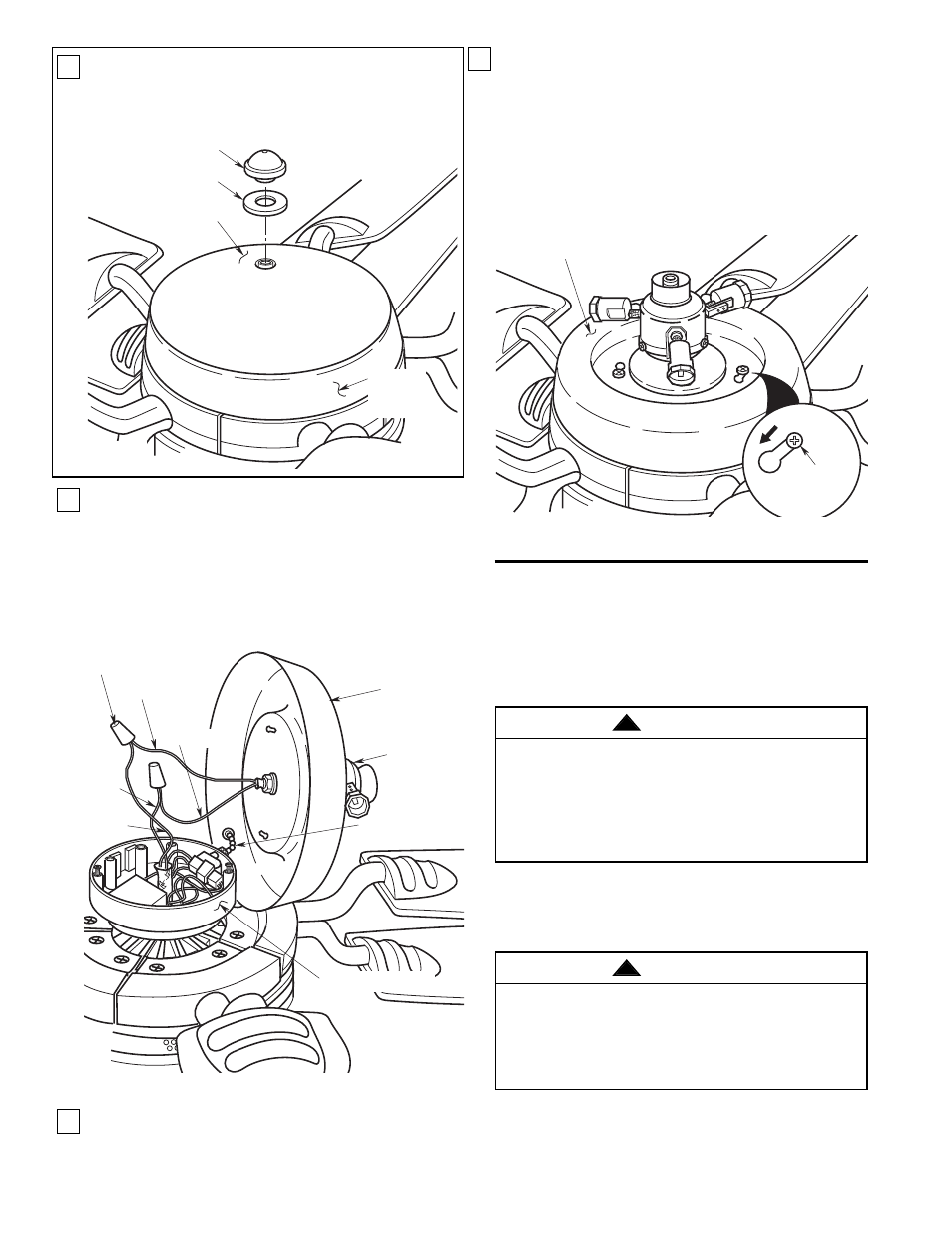

Figure 14
23. Position the cover plate on the switch housing
cover and secure by installing the fiber washer
and finial nut (supplied) (Figure 14). Proceed to
“Electrical Requirements” section.
24. Remove the wire connectors from the blue and
white wires in the switch housing. Connect the
switch housing blue wire to the blue wire from the
switch housing cover/light fixture assembly;
connect the switch housing white wire to the white
wire from the switch housing cover/light fixture
assembly (Figure 15). Secure the wires using the
wire connectors previously removed.
25. Pass the speed control switch chain from the
switch housing through the chain bushing in the
switch housing cover.
SWITCH
HOUSING
WIRE
CONNECTOR
WHITE WIRE
SPEED CONTROL
SWITCH CHAIN
LIGHT
FIXTURE
BLUE WIRE
BLUE
WIRE
WHITE
WIRE
SWITCH HOUSING
Figure 15
26. Make sure all wires and wire connectors are
inside the switch housing, then position the switch
housing cover on the switch housing so that the
8-32 x 3/8” pan head screws (previously installed)
protrude through the keyhole slots in the switch
housing cover. Turn the switch housing cover
clockwise to engage the slots, then securely
tighten the two screws (Figure 16).
NOTE: Be sure the wires are not pinched between
the switch housing and the switch housing cover.
Electrical Requirements
If your fan is to replace an existing ceiling light fixture,
turn electricity off at the main fuse box at this time and
remove the existing light fixture.
Your new ceiling fan will require a grounded electrical
supply line of 120 volts AC, 60 Hz, 15 amp circuit.
The outlet box must be securely anchored and
capable of withstanding a load of at least 50 pounds.
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 50 lbs. or less”, and use screws
supplied with outlet box. Most outlet boxes
commonly used for support of light fixtures are not
acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring must
be in accordance with National and Local codes and
the ceiling fan must be properly grounded as a
precaution against possible electrical shock.
WARNING
!
SWITCH HOUSING COVER
TIGHTEN TWO
8-32 x 3/8"
PAN HEAD
SCREWS
Figure 16
