Evled-vsc – Elation Professional Evled Media Screen Series User Manual

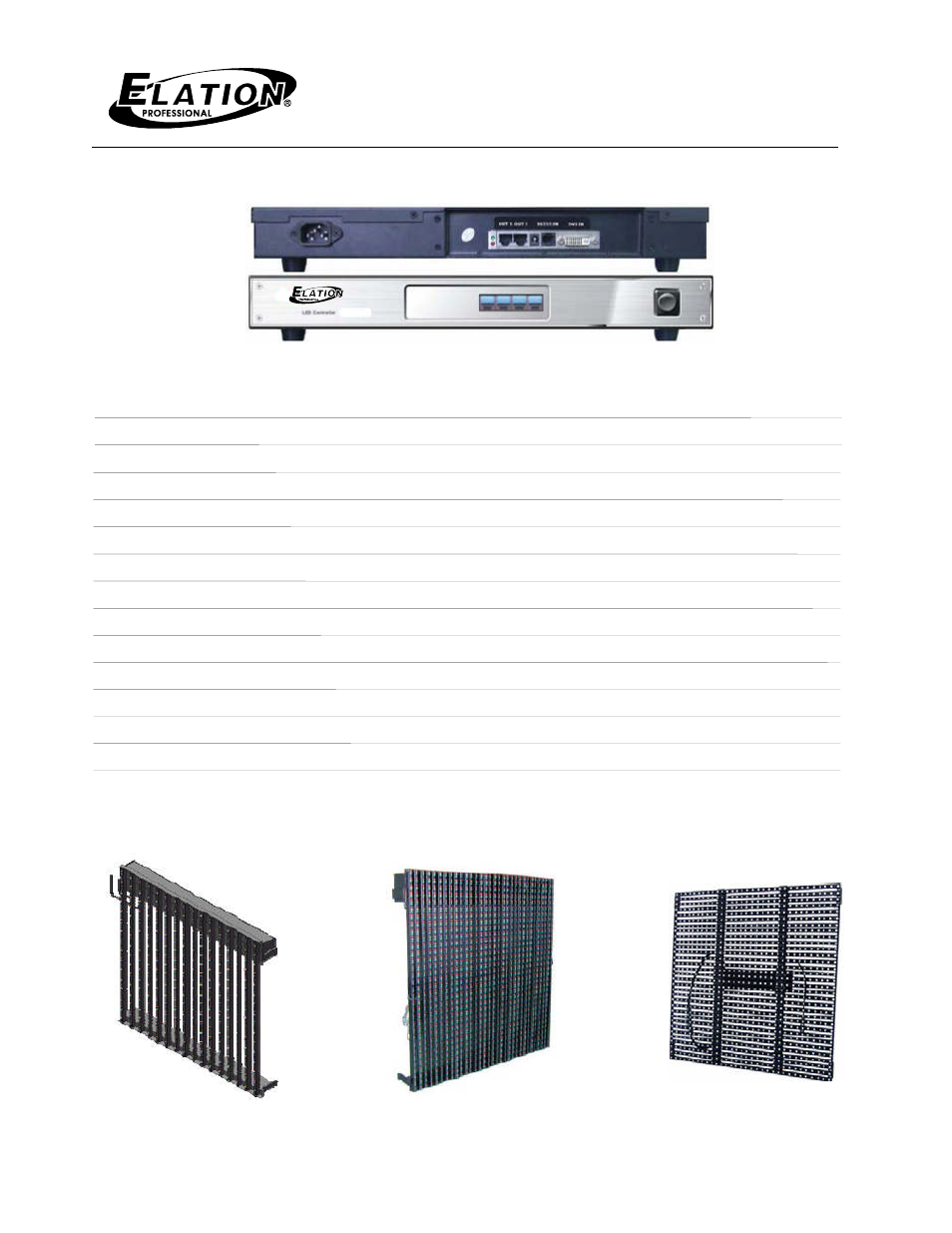

Page 5
LAN, CAT5
Rs232
DVI
Power switch and Up/Down buttons to control 16 preset intensity levels
AC Input, LAN Output, RS232 Port and DVI Input
Selectable between 100Hz - 3,000Hz
Free standing on rubber feet or rack mounted with rack ears
EVLED-VSC
Specification Sheet
Single, 2x2, 4x4 and 8x8, Max. 6144 pixels, 256 adjustable RGB levels
423 X 330 X 46 mm (LxWxH)
5.3 kg
0 - 66536 levels
Powder-coated steel
1280 x 1024 pixels
EVLED-VSC
Signal Output
Command Communication
Signal Input
Front Panel Controls
Rear Panel Connections
High Frequency Refresh Rate
Mounting
Model No.
Grey Level
Unit Size
Unit Weight
Composition
Dot Correction
Max Resolution
Compatible with the following video panels:
EVLED-256
EVLED-1024SMD
EVLED-1024SMD
