8

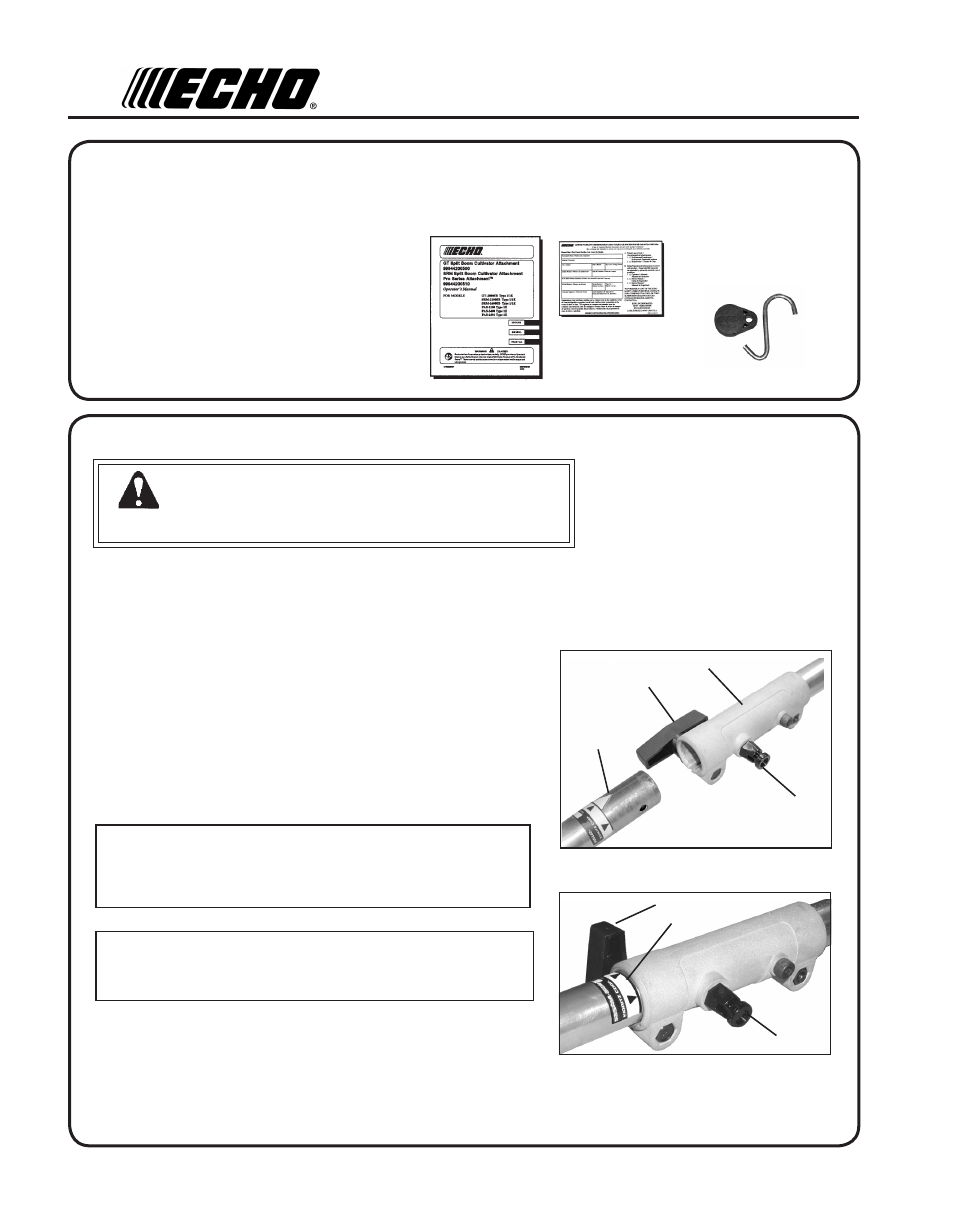

Parts Required: PAS or SRM-SB Power Head w/Shaft & Coupling.
1. Set Power Head/Shaft Assembly on a level surface.
2. Pull locator pin (A) out, and turn counter-clockwise 1/4 turn to
lock-out position.
3. Remove vinyl cap from attachment drive shaft.
4. Carefully fit attachment drive shaft assembly into coupler (B) to
decal assembly line (C), making sure that the inner lower drive
shaft engages into the square upper drive shaft socket.
NOTE
Earlier model Power Heads may have shorter couplings. Short
couplings fit flush to decal point (E). New couplings are 4-3/4 in.
long, and fit flush to line (C).
NOTE
Lower bearing housing and head assembly must be in line with the
engine.
5. Rotate locator pin (A) 1/4 turn clockwise to engage lower shaft
hole. Insure locator pin is fully engaged by twisting lower drive
shaft. Locator pin should snap flush in coupler. Full engagement
will prevent further shaft rotation.
6. Secure lower shaft assembly to coupler by tightening clamping
knob (D).
C
onTenTs
The ECHO product you purchased has been factory pre-assembled for your convenience. After opening the carton,
check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list
to check for missing parts.
1 - PAS Cultivator Attachment
- Operator's Manual
- Warranty Registration Card
- Storage Hook Assembly
a
ssembly
WARNING
Do not perform maintenance or assembly procedures with engine running.
A
B
D
E
power head shafT
/
lower shafT assembly
D
C
A
