8 ASSEMBLY
8.1

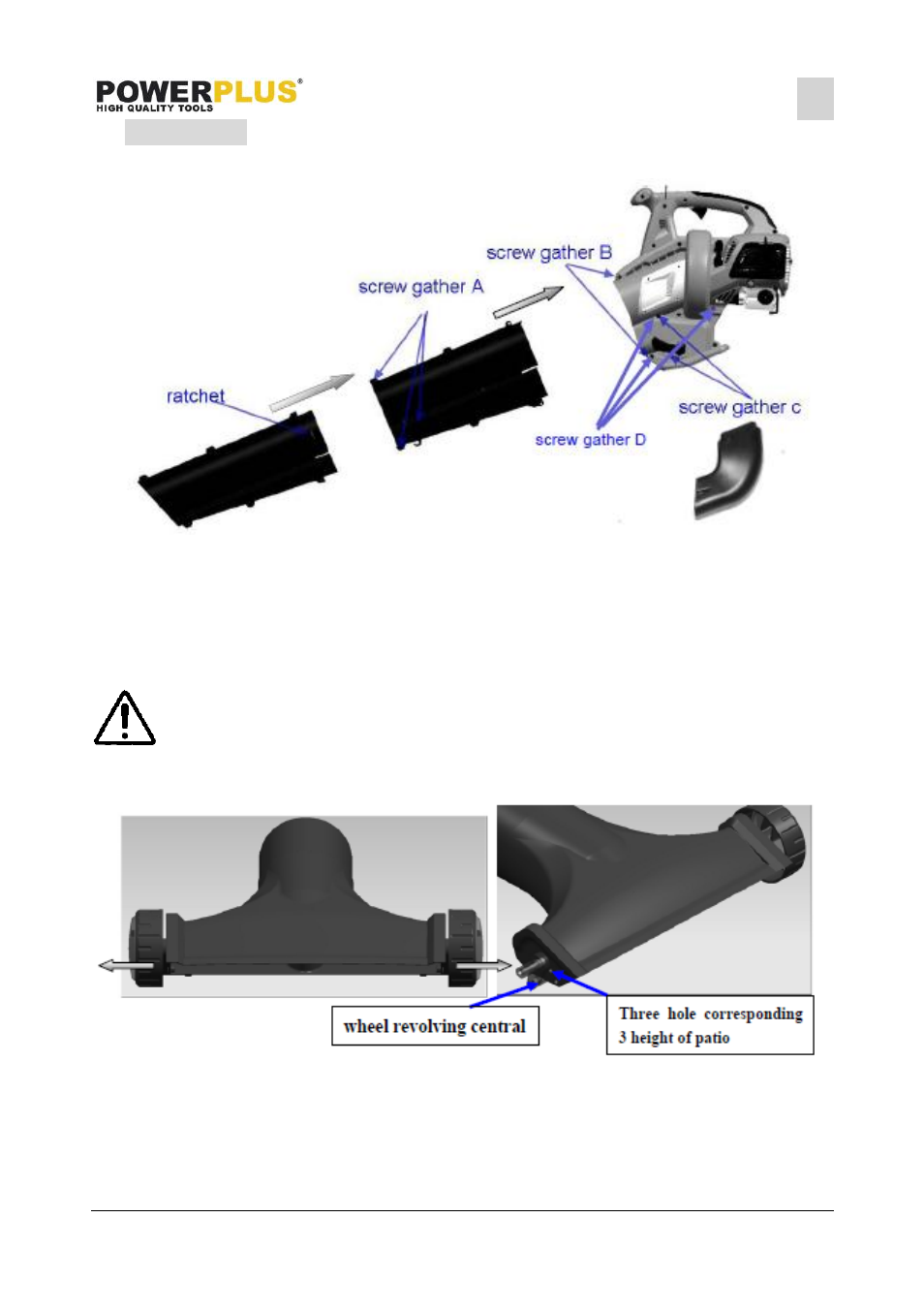

Tube assembly
Loose the 3 screws ( screw gather A ), put the lower tube insert into upper tuber, and
make sure the ratchet has caught..Then tighten the screw gather A.
Loose and take out Screws(screw gather B). Loose the 2 screws ( screw gather C ). Put
the assembled tube insert into blower body. Then tighten the screw gather B, C.
Loose and take out Screws(screw gather D). Insert the air guide tube into blower
body.Then tighten the screws.Put the quick release collect bag over the air guide tube and
compact it to the blower body.
The vacuum blower needs to be completely mounted before you can use
this tool!
8.2
Patio head
Pull the two wheels at patio outwards, then turn the wheel around revolving central, and they
will fix at one hole by spring , which has completed patio height adjustment.
