Important safety instructions
This manual explains the proper use of your new E:Line
canopy rangehood. Please read this manual carefully
before using the product. This manual should be kept in
a safe place for handy reference.
This canopy rangehood is a domestic appliance which has
been manufactured and tested to comply with Australian
and New Zealand Standard AS/NZS 60335.2.31.
caution
This symbol indicates the possibility of injury or
damage to property
Meanings of symbols used in this manual are shown below:
This symbol indicates never to do this
This symbol indicates always do this
caution
Read the following carefully to avoid an electric
shock or fire.
Young children should be supervised to ensure they do not
play with the canopy rangehood.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
Ensure the canopy rangehood is switched off before carrying
out maintenance, to avoid any possibility of electric shock.
Never carry out flambé cooking under the canopy rangehood.
This canopy rangehood is not recommended for barbecues.
This canopy rangehood cannot be installed for external use.
Grease filters must be removed at least every four weeks
for cleaning to reduce the risk of fire.
The exhaust from the canopy rangehood must not
be discharged into any heating flue, which may carry
combustion products from other sources. (Fig. 1)
Exhaust air must not be discharged into a wall cavity,
unless the cavity is designed for the purpose.
There must be adequate ventilation of the room when the
canopy rangehood is used at the same time as appliances
burning gas or other fuels.
Always cover lit gas burners with pots or pans when
canopy rangehood is in use.
Always switch off gas burners before you remove pots or pans.
Do not leave lit gas burners exposed due to the risk of fire.
(Fig. 2)

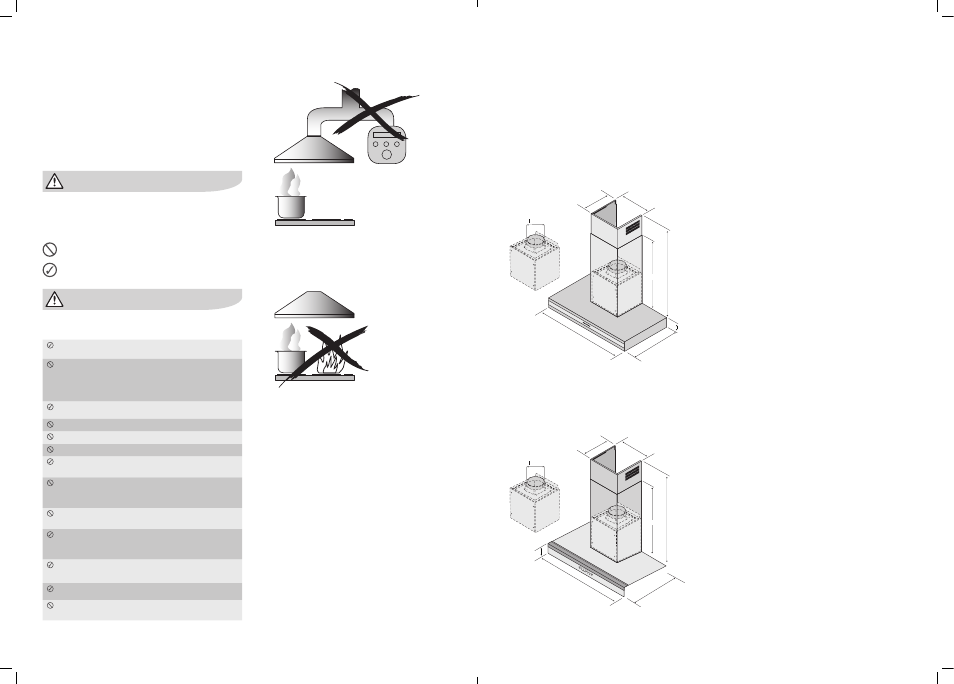

Dimensions
Canopy dimensions
NOTE: *The fan housing exhaust outlet is 163mm in diameter. Use
duct transition or flexible pipe supplied with the canopy rangehood
as a reducer if using 150mm optional ducting accessories.
(See page 9 for optional ducting accessories).
ERCM9010AS
ERCE9020AS
100mm
500mm
391mm
O163mm*
900mm
1175mm
(maximum)
328mm
593mm
100mm
500mm
391mm
O163mm*
900mm
1175mm
(maximum)
328mm
593mm
100mm
500mm
391mm
O163mm*
900mm
1175mm
(maximum)
328mm
593mm
83mm
520mm
407mm
O163mm
900mm
1275mm
(maximum)
331mm
698mm
ERCG9030AS
• Check that the mains voltage matches with the voltage
on the data plate inside the canopy rangehood.
• Check that the installation complies with standards of
local gas and electricity authorities.
• If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent of similarly qualified
person in order to avoid a hazard.
Safety warnings – For the installer
When installing the cooker hood, make sure you adhere
to the minimum and maximum distances from the cooker
hood base to the hob surface (as per table on right page 5).
Exhaust duct installation:
The following rules must be strictly followed to obtain
optimal air extraction.
• Keep exhaust duct short and straight
• Do not reduce the size or restrict exhaust duct.
• Keep bends in the exhaust duct to a minimum.
• When using flexible duct always install duct with
helix pulled taut to minimise pressure loss.
• Failure to observe these basic instructions will
drastically reduce the performance and increase the
noise levels of the cooker hood.
Exhaust air must not be discharged into a wall cavity, unless
the cavity is designed for that purpose.
The exhaust from the cooker hood must not be discharged
into any heating flue, which may carry combustion products
from other sources.
Electrical connection
Fig. 1
Fig. 2
