Excell Precision XR2625 - Manual (Page 9)

9 - ENG A14687

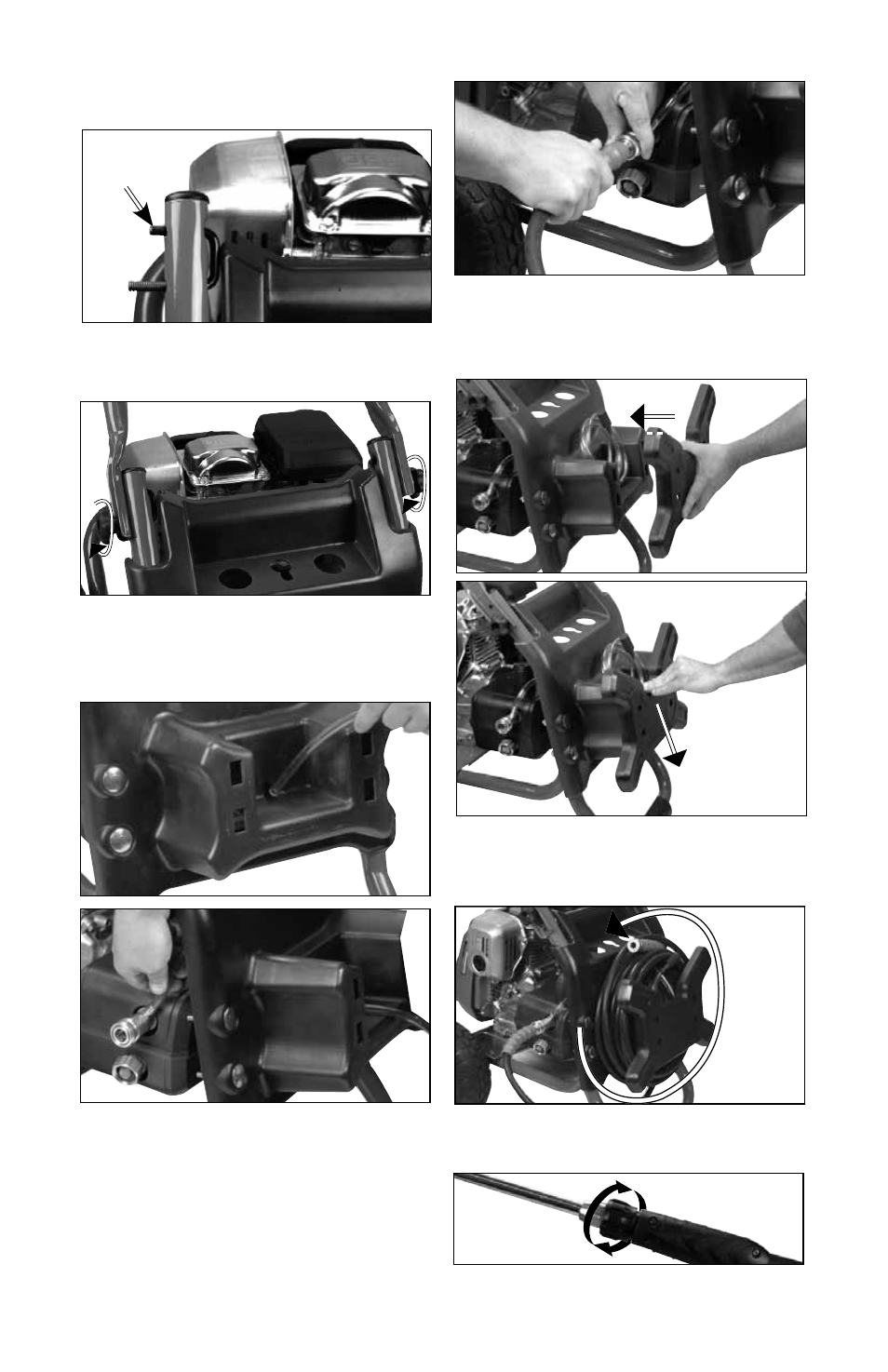

9. Align tabs on accessory storage
panel cover with holes in
accessory storage panel and slide
down until it locks into place.
10. Wind high pressure hose around
hose reel of the accessory
storage panel.
11. Connect wand to gun. Tighten
securely.
4. Assemble a "J" bolt through
frame as shown (both side).
5. Slide handle onto "J" bolts and
attach with knobs (both sides) .
Tighten securely.
6. Feed end of chemical hose
(without filter) through front panel
and press onto barbed fitting of
chemical injector.
7. Roll the unit off the carton and
discard carton.
8. Connect high pressue hose to
pump outlet.
