G

rass

T

rimmer

/B

rush

C

uTTer

O

peraTOr

'

s

m

anual

9

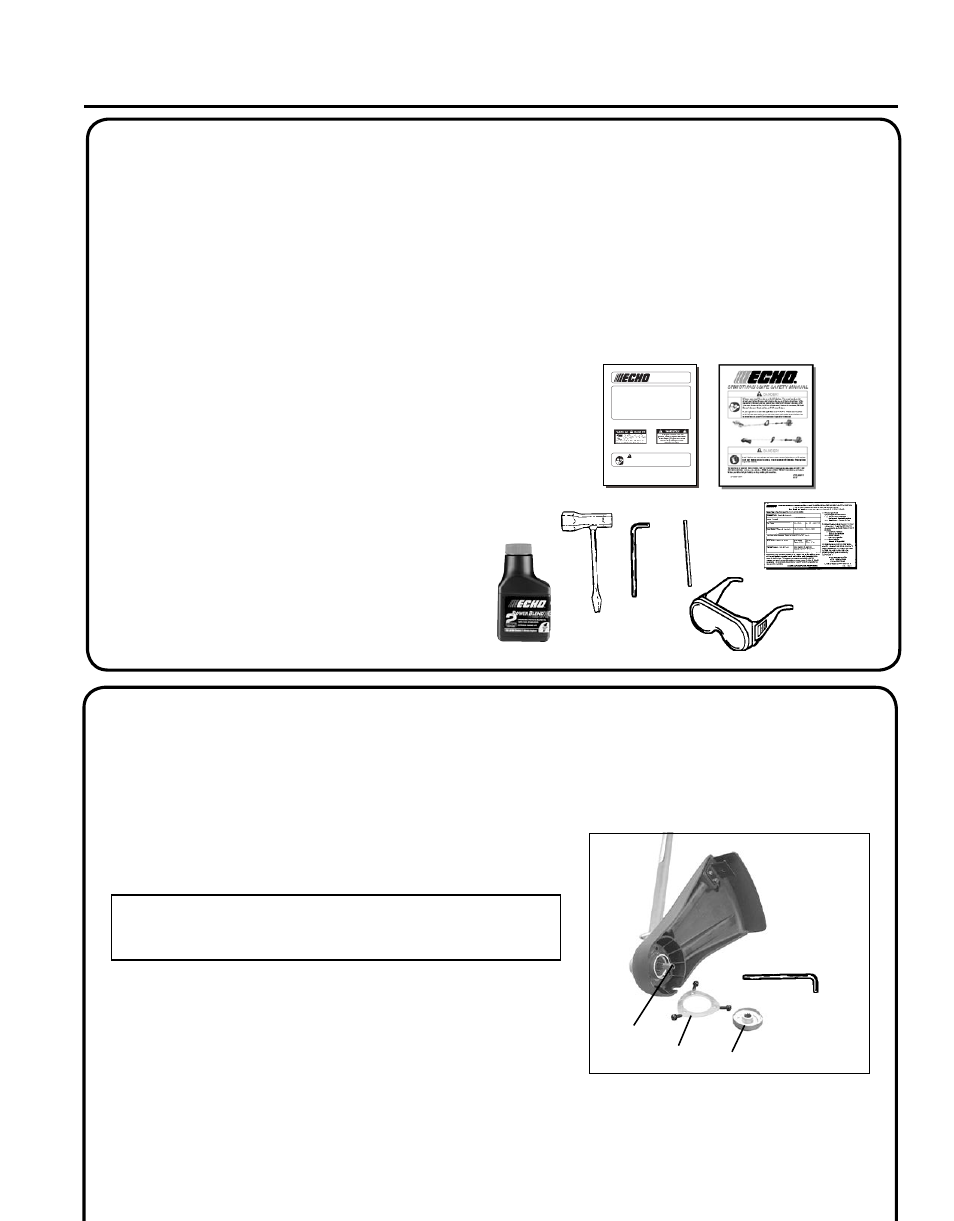

c

ontents

The ECHO product you purchased has been partially assembled for your convenience. Due to packaging restrictions,

installation of the plastic debris shield, nylon line head, and positioning of the front handle are necessary.

After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing

parts. Use the contents list to check for missing parts.

*

Some Echo units may be factory pre-assembled. The nylon line head, plastic debris shield, and mounting hardware

shown in the contents list are pre-assembled to the unit. Assembly tools are not supplied with these units. The front

handle may need to be re-positioned for comfortable operation.

_______1 - Power Head / Drive Shaft Assembly

______ - 1, Operator's Manual

______ - 1, Safety Manual

______ - 1, Warranty Registration Card

_______ - 1, Safety Glasses

_______ - 1, Echo Power BlendX

TM

2-stroke oil sample

*

_____ - 1, Nylon Trimmer Head

*

_____ - 1, T-Wrench

*

_____ - 1, Torx T27 L-Wrench

*

_____ - 1, locking tool

*

_____ --1, Plastic shield

*

_____ --1, shield plate

*

_____ --3, 5mm x 16mm screws (shield mtg.)

a

ssembly

plastIc

shIeld

InstallatIon

(for Nylon Line Operation)

Tools Required: Torx T27 L-Wrench

Parts Required: Plastic Shield, Shield Plate, three (3) 5mm x 16mm

screws.

NOTE

The plastic shield is for use with the Nylon Line Head only.

Install Metal Shield when using plastic or metal blades.

1. Remove plastic threaded shaft sleeve and adapter plate (C) from

PTO shaft (A).

2. Place the shield on the bottom of the bearing housing flange.

3. Place shield plate (B) on shield, align holes. Install three (3) screws

from bottom through plate and shield into gear case.

4. Assemble adapter plate (C) onto PTO shaft.

A

B

C

WARNING

Read rules for safe operation and instructions carefully. ECHO provides an
Operator's Manual and a Safety Manual. Both must be read and understood for
proper and safe operation. Failure to do so could result in serous injury.

Grass Trimmer/Brush Cutter

Operator's Manual

MODELS

SRM-225

X7722271100

X772000120
07/08
